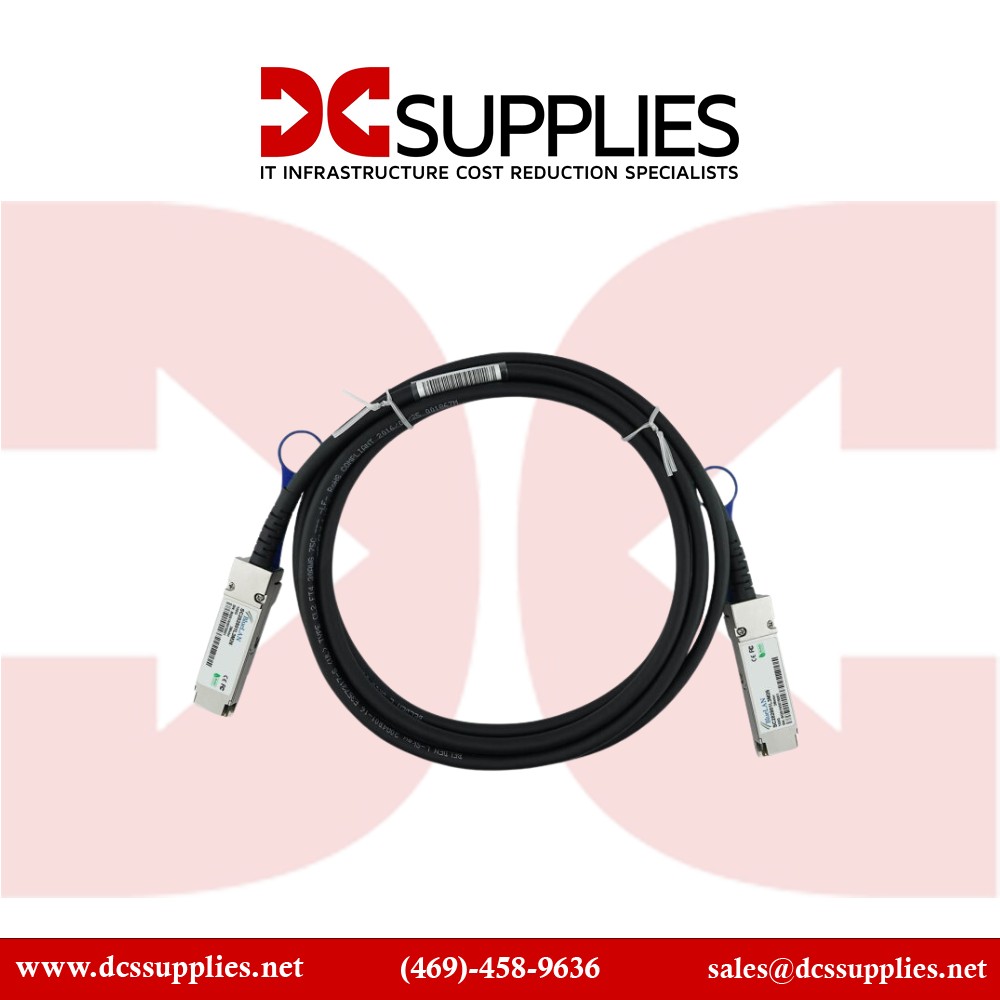

Ruckus Wireless E40G-QSFP-QSFP-P-0301 40GBase-CU Passive Twinax Cable (3 m/10 ft)
Overview
The Ruckus Wireless E40G-QSFP-QSFP-P-0301 is a high-performance passive twinax copper cable engineered for 40 Gigabit Ethernet connectivity. Designed for use with QSFP+ ports, this cable provides a reliable, low-latency interconnect between switches, routers, and servers within data centers or enterprise networks. The 3 meter (10 foot) length makes it ideal for short-distance connections such as intra-rack or adjacent-rack setups. With its passive design, it consumes no additional power, offering a cost-effective solution for 40 Gbps data transmission. Fully compliant with QSFP+ MSA standards, it ensures seamless interoperability across multi-vendor environments, making it an excellent choice for performance-driven networks.
Key Features
• Supports 40 Gbps high-speed data transfer
• QSFP+ to QSFP+ passive twinax copper connection
• 3 m (10 ft) length for short-range interconnects
• Zero-power consumption for efficient performance
• MSA-compliant for multi-vendor compatibility
Technical Specifications
| Specification | Details |
|---|
| Brand | Ruckus Wireless |
| Part Number | E40G-QSFP-QSFP-P-0301 |
| Product Type | 40GBase-CU Passive Twinax Cable |
| Data Rate | 40 Gbps |
| Connector Type | QSFP+ to QSFP+ |
| Cable Type | Twinax Copper (Passive) |
| Cable Length | 3 m (10 ft) |
| Compatibility | QSFP+ MSA Compliant Devices |
| Application | Intra-rack / Inter-rack Data Connections |
| Standard Compliance | IEEE 802.3ba, 40GBase-CU |
| Cable Gauge | 28 AWG |
| Operating Temperature | 0 °C to 70 °C |
| Storage Temperature | -40 °C to 85 °C |
| Dimensions (L × W × H) | 118 in × 0.5 in × 0.5 in (approx.) |
| Weight | 0.4 lbs (approx.) |
| Jacket Material | PVC / LSZH |
| Power Requirement | None (Passive Cable |
