Detailed Specifications

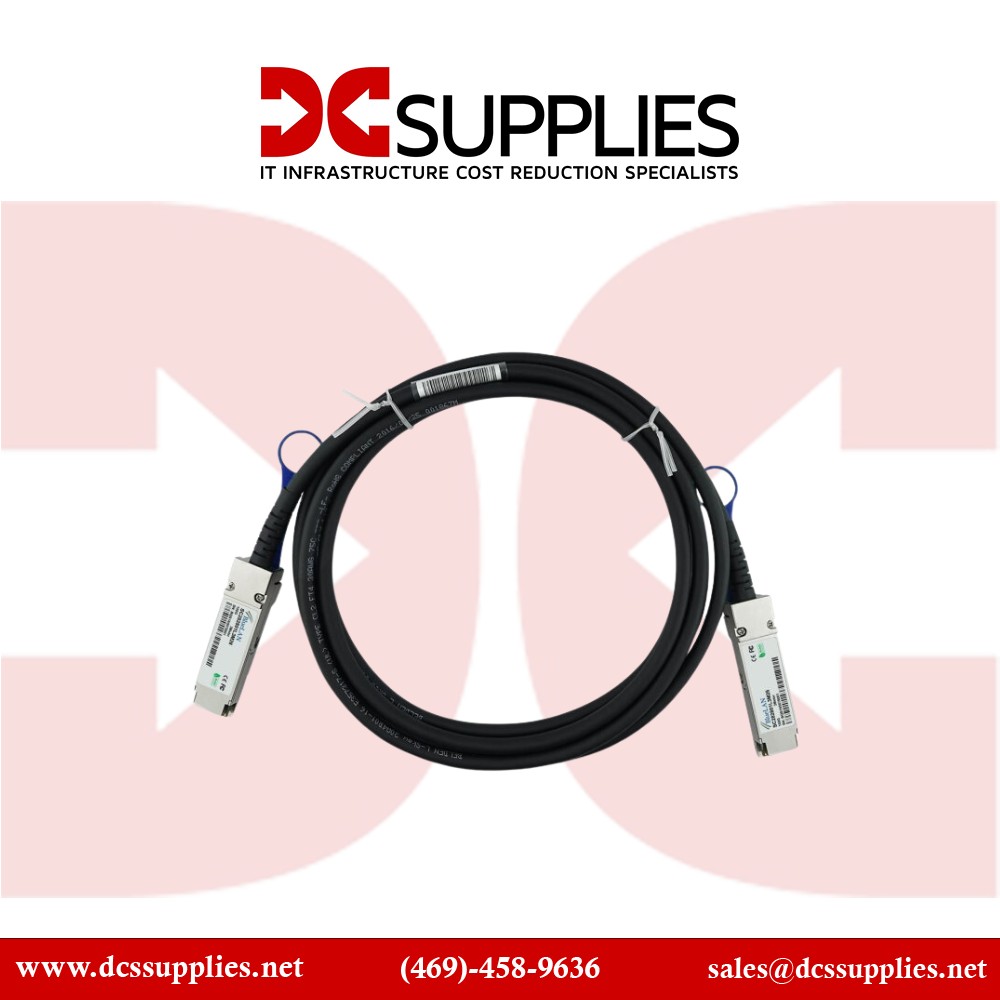

Ruckus E40G-QSFP-C-0101 – 40G QSFP+ Passive Direct Attach Copper Cable
Overview :
The Ruckus E40G-QSFP-C-0101 is a 1-meter passive direct attach copper (DAC) cable designed for high-speed 40G Ethernet connectivity. It features QSFP+ connectors on both ends, providing a reliable and cost-effective solution for short-range interconnects between switches, servers, and other networking equipment. Operating over passive copper twinax cable, it supports data rates up to 40 Gbps, making it suitable for data centers and enterprise networks requiring high bandwidth and low latency. This cable is hot-pluggable and compliant with SFF-8436 standards, ensuring broad compatibility with various networking devices. Its passive design eliminates the need for external power, simplifying installation and reducing energy consumption. With a commercial operating temperature range, it is ideal for environments where space and power efficiency are critical.
Key Features :
1-meter length for short-range connections
Supports 40 Gbps data rate
QSFP+ connectors on both ends
Passive copper twinax cable
Hot-pluggable and SFF-8436 compliant
Specifications
| Specification | Details |
|---|
| Brand | Ruckus |
| Part Number | E40G-QSFP-C-0101 |
| Product Type | Passive Direct Attach Copper Cable |
| Cable Length | 1 meter (3.3 feet) |
| Connector Type | QSFP+ |
| Data Rate | 40 Gbps |
| Cable Type | Passive Copper Twinax |
| Compliance | SFF-8436 |
| Power Consumption | No external power required |
| Operating Temperature | Commercial range (0°C to 70°C) |
| Weight | Approximately 0.6 lbs (0.27 kg) |
| Dimensions | 1.0 x 0.5 x 0.5 inches (L x W x H) |
| Connector Housing | Zinc die-cast |
| Cable Jacket | PVC |
