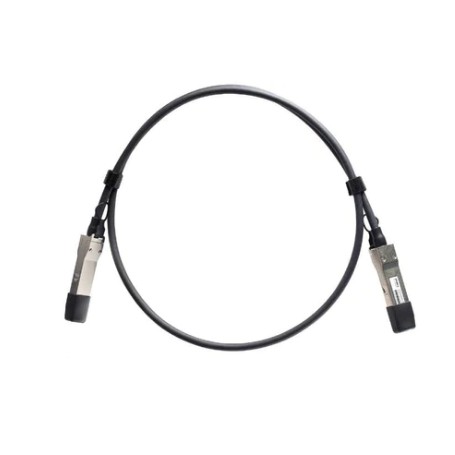

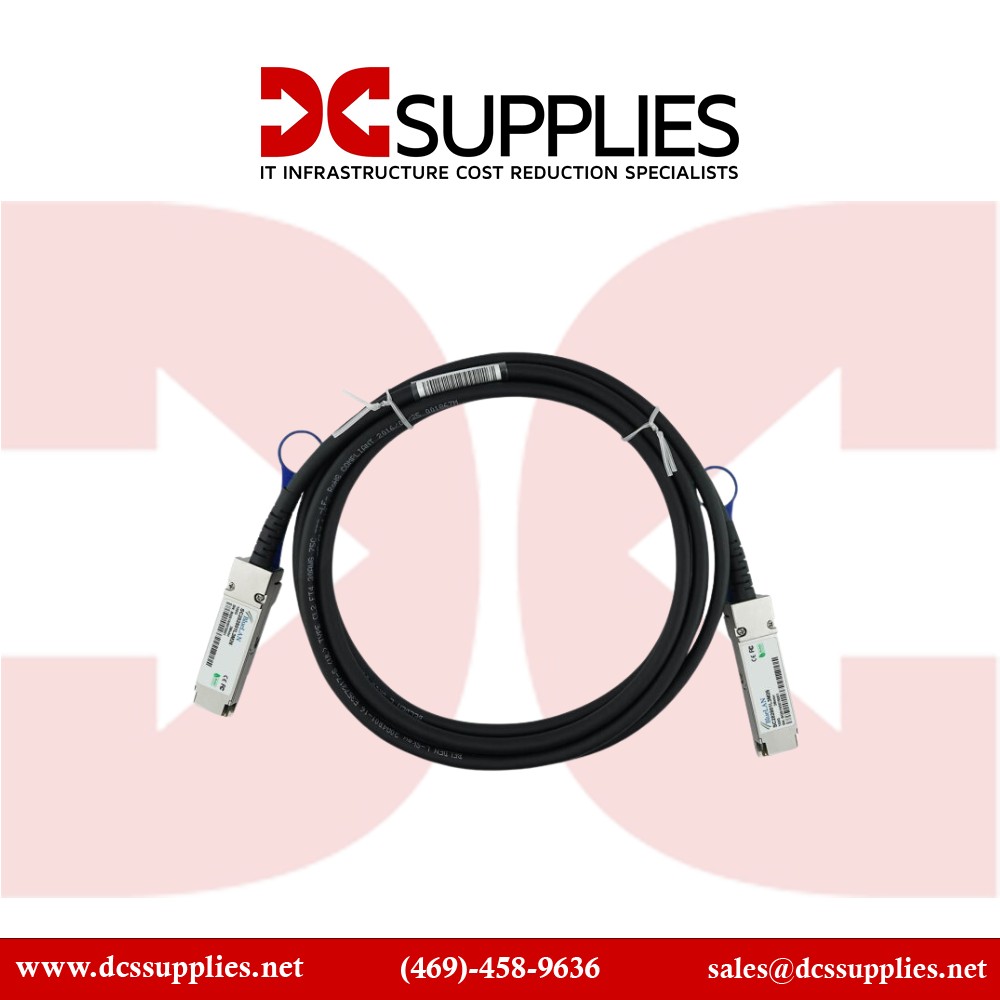

Ruckus Wireless E40G-QSFP-C-0501 40GBase-CU QSFP+ Passive Direct-Attach Cable
Overview :
The Ruckus Wireless E40G-QSFP-C-0501 is a passive copper direct-attach twinax cable designed for 40 Gigabit Ethernet (40GBase-CU) links between QSFP+ ports in high-density data centres, aggregation racks or switch stacks. It utilises a QSFP+ to QSFP+ form-factor and supports link distances up to 5 m (≈ 16.4 ft) over suitable twinax copper cable. The passive twinax design offers low power consumption and minimal latency compared to optical modules. This product is compliant with QSFP+ MSA standards and supports IEEE 802.3ba 40G Ethernet protocol. It is ideal for short-reach interconnects within racks or across adjacent racks, and integrates seamlessly into mixed-brand environments supporting QSFP+ interfaces.
Key Features :
• 40GBase direct-attach twinax cable for QSFP+ to QSFP+ links
• Passive copper design for low latency and low power overhead
• 5 m (≈ 16.4 ft) maximum length for rack-to-rack connectivity
• QSFP+ MSA compliant and IEEE 802.3ba 40G Ethernet compatible
• Plug-and-play solution with no active optics required
Technical Specifications :
| Specification | Details |
|---|
| Brand | Ruckus Wireless |
| Part Number | E40G-QSFP-C-0501 |
| Product Type | 40 GBase-CU QSFP+ to QSFP+ Passive Twinax Cable |
| Data Rate | 40 Gbps |
| Standard | IEEE 802.3ba |
| Cable Type | Passive twinax copper |
| Connector | QSFP+ to QSFP+ |
| Maximum Length | 5 m (≈ 16.4 ft) |
| Form Factor | QSFP+ direct-attach |
| Compliance | QSFP+ MSA |
| Temperature Range | 0 °C to 70 °C typical (commercial) |
| Cable Jacket | PVC / OFNR (varies by vendor) |
| Weight (lbs) | ~0.4 lbs |
| Certified Countries | TAA-compliant versions available |
| Compatibility | QSFP+ ports on switches & routers |
| Warranty | Limited lifetime (via compatible-brand vendor) |
