Detailed Specifications
Ruckus E40G-QSFP-4SFP-C-0301 – 40G QSFP+ to 4x10G SFP+ Active Copper Breakout Cable
Overview :

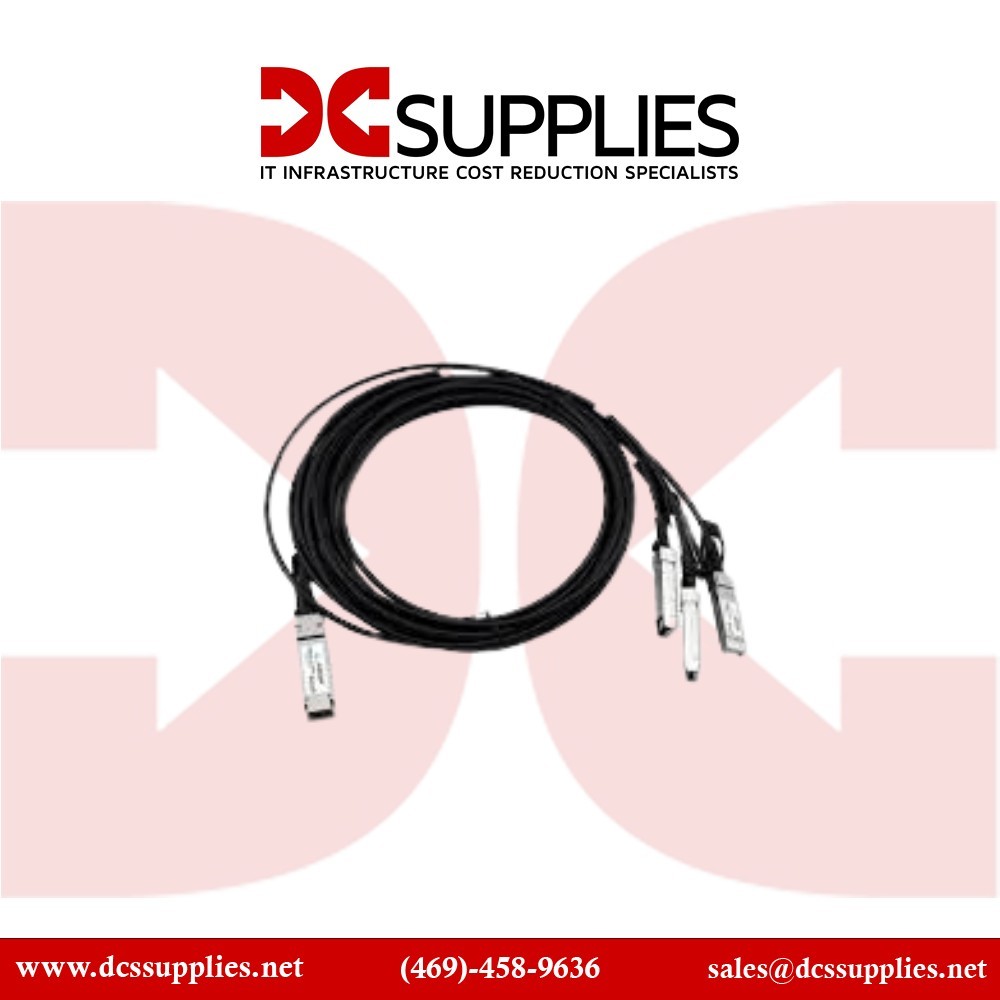

The Ruckus E40G-QSFP-4SFP-C-0301 is a 3-meter active copper breakout cable designed to provide high-speed connectivity between a 40G QSFP+ port and four 10G SFP+ ports. This cable is ideal for applications requiring high-density interconnects, such as data centers and enterprise networks. It supports IEEE 802.3ba 40GBASE-CR4 and 4x10GBASE-CR standards, ensuring reliable data transmission over short distances. The active design compensates for signal loss, making it suitable for use in high-speed networking environments. The cable is hot-pluggable and does not require additional drivers or software, simplifying installation and maintenance. Its compact form factor and flexible design allow for easy integration into existing network infrastructures. Compatible with a range of Ruckus switches and routers, this breakout cable offers a cost-effective solution for expanding network capacity without the need for additional transceivers.
Key Features :
3-meter active copper cable
Supports 40GBASE-CR4 and 4x10GBASE-CR standards
Hot-pluggable, no drivers required
Ideal for high-density interconnects
Compatible with Ruckus networking equipment
Specifications :
| Specification | Details |
|---|
| Brand | Ruckus |
| Part Number | E40G-QSFP-4SFP-C-0301 |
| Product Type | 40G QSFP+ to 4x10G SFP+ Active Copper Cable |
| Cable Length | 3 meters |
| Connector A | QSFP+ |
| Connector B | 4x SFP+ |
| Data Rate | 40 Gbps (QSFP+) / 10 Gbps (per SFP+) |
| Standards Supported | IEEE 802.3ba 40GBASE-CR4, 4x10GBASE-CR |
| Cable Type | Active Copper |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Power Consumption | Typically < 0.5 W |
| Compliance | MSA Compliant |
| Warranty | Typically 3 years |
| Weight | Approximately 0.5 lbs |
