Detailed Specifications

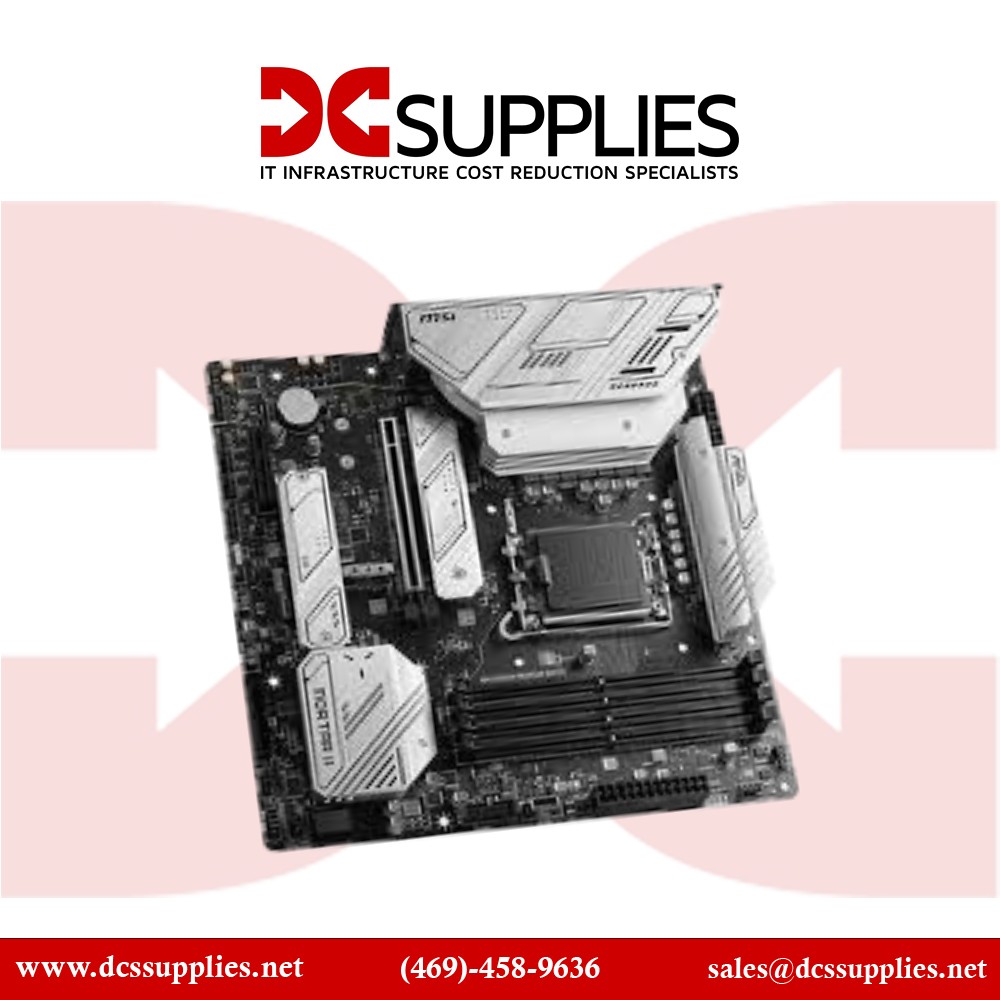

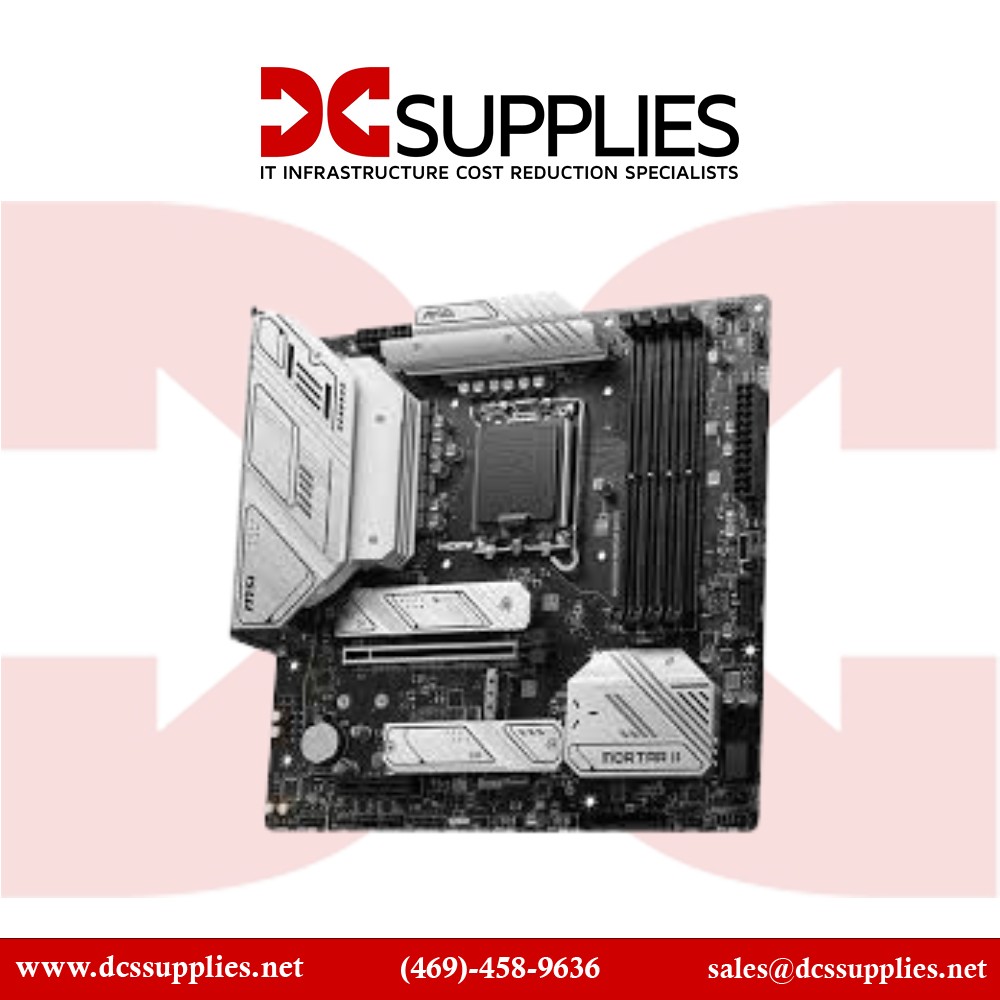

MSI B760MMORWIFI2 PRO DDR4 ProSeries Motherboard
Overview :
MAG B760M MORTAR WIFI II is designed for gamers, providing a stable, solid, and durable foundation for compact mATX PC builds. Coming up with Wi-Fi 6E, 2.5G LAN, DDR5, PCIe 5.0 solutions, and 3 M.2 connectors, it's ready for Intel 14th Gen and 13th Gen Core processors.
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
Specifications :
Product Name |
Mag B760M Mortar WiFi II DDR5 WIFI6E |
Manufacturer Part Number |
B760MMORWIFI2 |
Product Type |
Desktop Motherboard |
Chipset Manufacturer |
Intel |
Chipset Model |
B760 |
Number of Memory Slots |
4 |
Bluetooth |
Yes |
Gigabit Ethernet |
Yes |
Number of SATA Interfaces |
4 |
Onboard Video |
CPU Dependent Video |
RAID Supported |
Yes |
Number of PCI Express x16 Slots |
1 |
HDMI |
Yes |
DisplayPort |
Yes |
Total Number of USB Ports |
8 |
Total Number of Onboard USB Ports |
7 |
Total Number of PCI Express Slots |
1 |
Memory Form Factor |
DIMM
UDIMM
|
Number of M.2 Interfaces |
3 |
Memory Technology |
DDR5 SDRAM |
Processor Socket |
Socket LGA-1700 |
Form Factor |
Micro ATX |
Processor Supported |
Core
Pentium Gold
Celeron
|
Total Processor Supported |
1 |
Controller Type |
Serial ATA/600 |
Maximum Memory Supported |
192 GB |
Audio Channels |
7.1 |
Wireless LAN |
Yes |
Wireless LAN Standard |
IEEE 802.11 a/b/g/n/ac/ax |
Bluetooth Standard |
Bluetooth 5.3 |
HDMI Version |
2.1 |
Number of Network (RJ-45) Ports |
1 |
Number of USB 2.0 Ports |
4 |
Number of Onboard USB 2.0 Ports |
4 |
PCI Express Standard |
PCI Express 5.0
PCI Express 3.0
|
Memory Speed Supported |
7800 MHz
7600 MHz
7400 MHz
7200 MHz
7000 MHz
6800 MHz
6600 MHz
6400 MHz
6200 MHz
6000 MHz
5800 MHz
5600 MHz
5400 MHz
5200 MHz
5000 MHz
4800 MHz
|
Number of USB 3.2 Gen 2 Type-A Ports |
3 |
2.5Gigabit Ethernet |
Yes |
Processor Generation Supported |
14th Gen
13th Gen
12th Gen
|
Width |
9.6" |
Depth |
9.6" |
Product Model |
B760M MORTAR WIFI II |
Product Line |
MAG |
RAID Levels |
0
1
5
10
|
S / PDIF |
Yes |
Brand Compatibility |
Intel |
Stock Details |
Manufacturer |
MSI |
Manuf Part# |
B760MMORWIFI2 |
