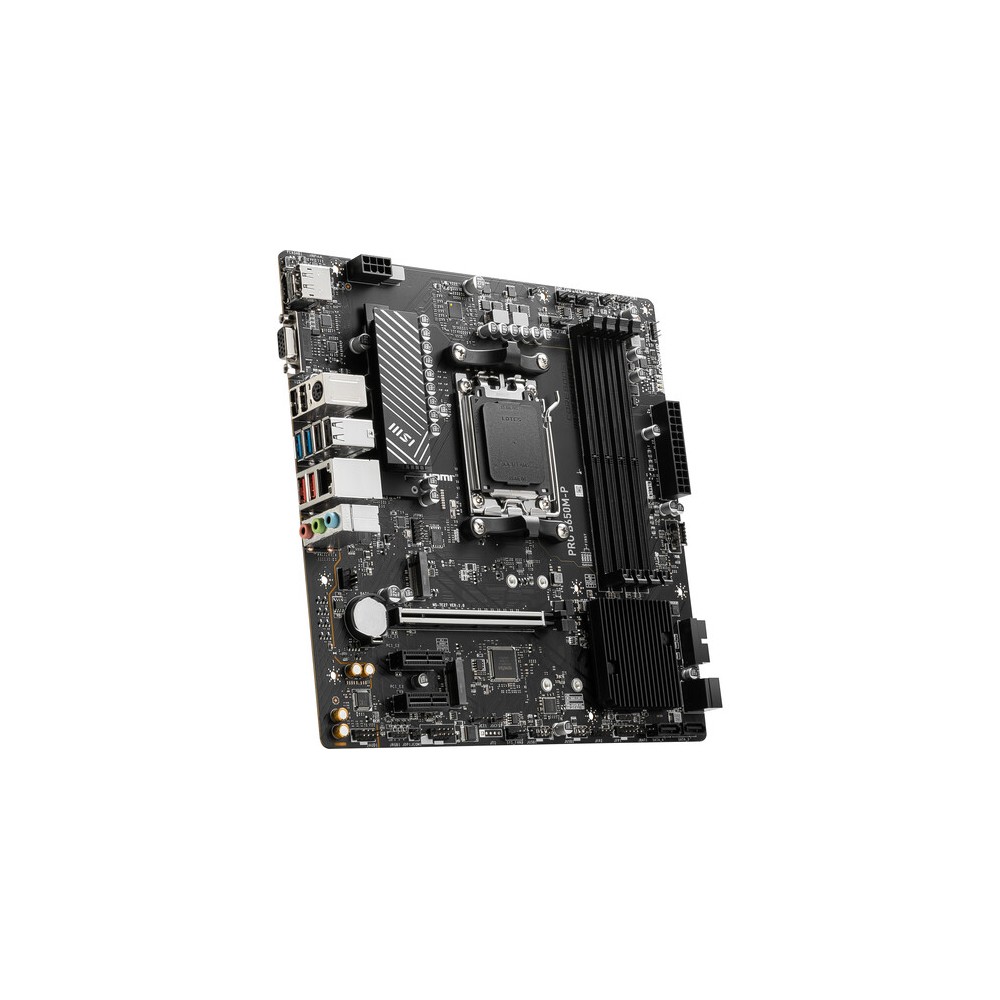

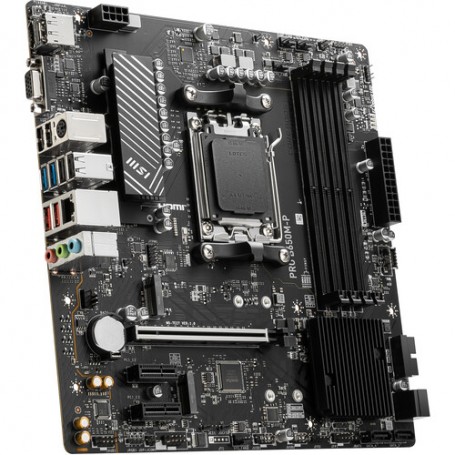

MSI B650MP PRO B650M-P AM5 Micro-ATX Motherboard View larger

MSI B650MP PRO B650M-P AM5 Micro-ATX Motherboard

B650MP

New

MSI B650MP PRO B650M-P AM5 Micro-ATX Motherboard
×




dc supplies, DDR4 Motherboard, MSI Gaming Desktop Motherboard, Gaming rig motherboard, B650MP, MSI B650MP, MSI B650MP Gaming Desktop Mother, h610 chipset motherboard, Gaming PC motherboard

Detailed Specifications

MSI B650MP PRO B650M-P AM5 Micro-ATX Motherboard

Overview :

Set the foundation of your next business PC build with the robust MSI PRO B650M-P AM5 Micro-ATX Motherboard. Designed to leverage the power of AMD's Ryzen 7000 series processors, the PRO enhances system performance suitable for operating multiple programs with speed and reliability.

AMD's AM5 socket rests at the heart of the PRO, allowing you to install a variety of Ryzen 7000 series processors to match your needs. Four DDR5 RAM slots allow you to install up to 192GB of memory to enhance multitasking and render speeds. Four SATA III and two M.2 PCIe SSD interfaces can support a wide range of storage drives that allow quicker data transfer speeds. Connect an array of graphics and utility cards with one PCIe 4.0 x16 and two PCIe 3.0 x1 expansion slots. Between back-panel connections and internal headers, you get several USB 2.0 ports for low-powered devices as well as USB 3.2 Gen 1 and Gen 2 ports for resource-demanding devices like audio interfaces, external drives, and more. You can connect to your network to download important assets with a single 2.5 Gigabit Ethernet port, giving you access to various websites, media, and cloud storage.

Connectivity
The back panel of the PRO gives you a wide range of support for both modern and legacy hardware. You get USB-A 2.0 ports for low-powered devices as well as two USB-A 3.2 Gen 1 and two USB-A 3.2 Gen 2 ports, delivering up to 5 and 10 Gb/s data transfer speeds. HDMI and DisplayPort video outputs support processors with integrated graphics. You also get VGA and PS/2 connectors for legacy displays and peripherals, respectively.
Cooling Capabilities
Designed to keep your system cool even under the heaviest power load, the PRO offers an M.2 Shield Frozr heat sink as well as a heavy-plated VRM heat sink, 7W/mK thermal pad, and a chipset heat sink, keeping your system safe from thermal throttling. Fully Fan Control ensures your internal fans are meeting thermal demands properly through software that can operate automatically or manually.

Specifications

Product Name Pro B650M-P
Manufacturer Part Number B650MP
Product Type Gaming Desktop Motherboard
Chipset Manufacturer AMD
Chipset Model B650
Number of Memory Slots 4
Gigabit Ethernet Yes
Number of SATA Interfaces 4
Number of PCI Express x1 Slots 2
Onboard Video CPU Dependent Video
RAID Supported Yes
Number of Total Expansion Slots 3
Number of PCI Express x16 Slots 1
HDMI Yes
VGA Yes
DisplayPort Yes
Total Number of USB Ports 8
Total Number of Onboard USB Ports 7
Total Number of PCI Express Slots 3
Memory Form Factor DIMM

UDIMM
Number of M.2 Interfaces 2
Memory Technology DDR5 SDRAM
Processor Socket Socket AM5
Form Factor Micro ATX
Processor Supported Ryzen 7
Total Processor Supported 1
Controller Type Serial ATA/600
Maximum Memory Supported 192 GB
Audio Channels 7.1
HDMI Version 2.1
Number of Network (RJ-45) Ports 1
Number of USB 2.0 Ports 4
Number of Onboard USB 2.0 Ports 4
PCI Express Standard PCI Express 4.0

PCI Express 3.0
Memory Speed Supported 6000 MHz

5800 MHz

5600 MHz

5400 MHz

5200 MHz

5000 MHz

4800 MHz
Number of USB 3.2 Gen 1 Type-A Ports 2
Number of USB 3.2 Gen 2 Type-A Ports 2
2.5Gigabit Ethernet Yes
Width 9.6"
Depth 9.6"
Product Series PRO
Product Model B650M-P
RAID Levels 0

10

1
Brand Compatibility AMD
Stock Details
Manufacturer MSI
Manuf Part# B650MP
