Detailed Specifications

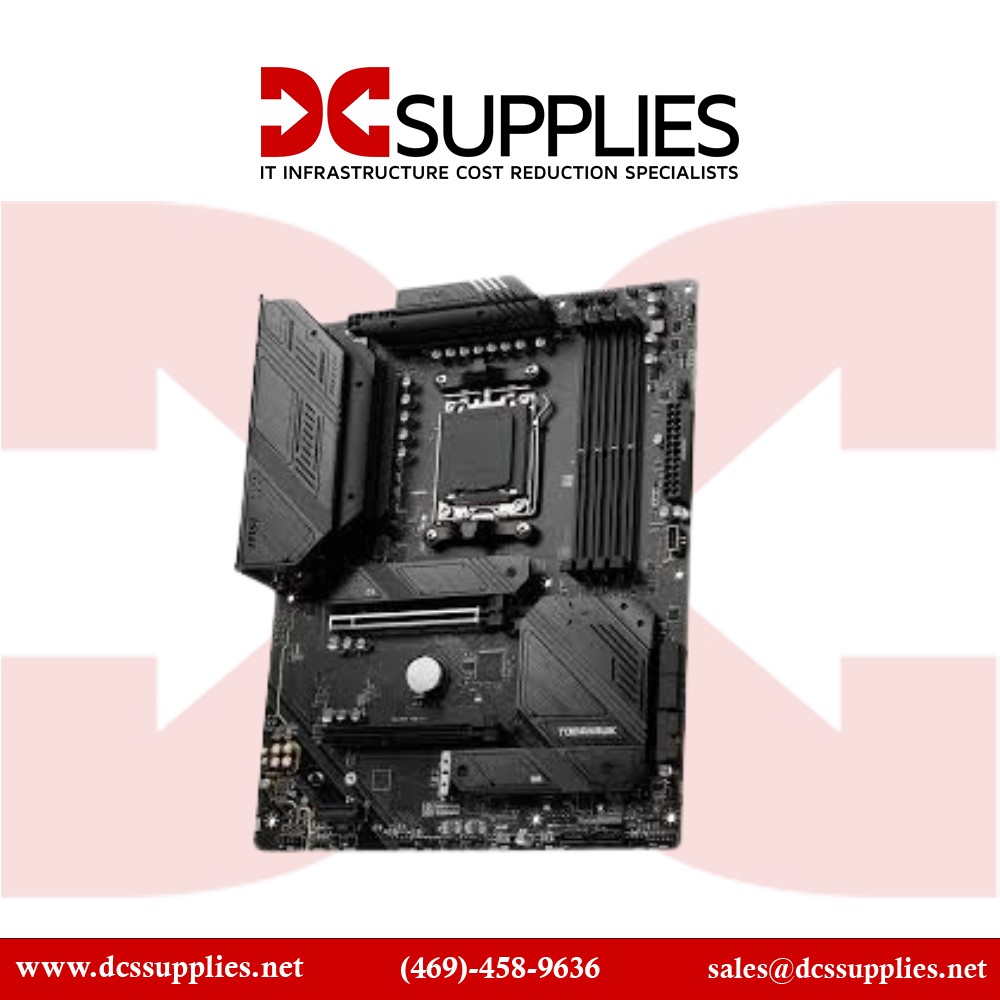

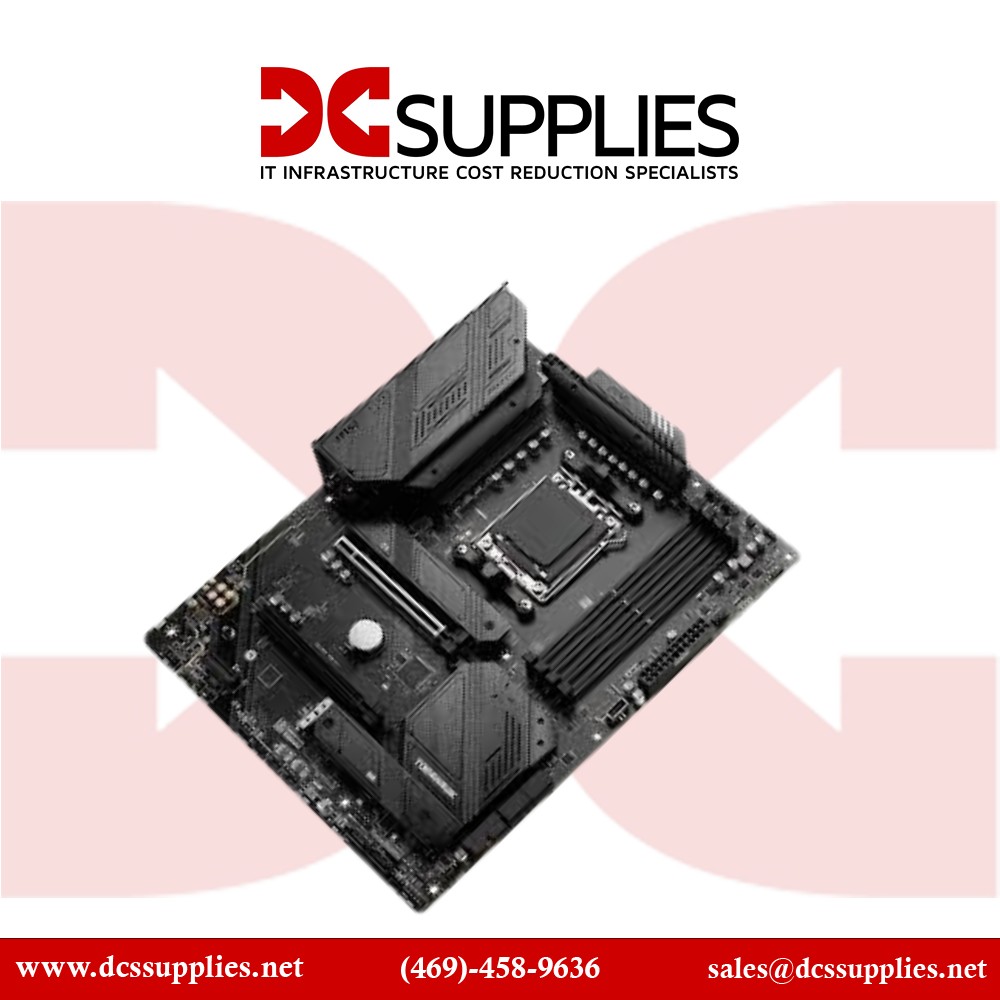

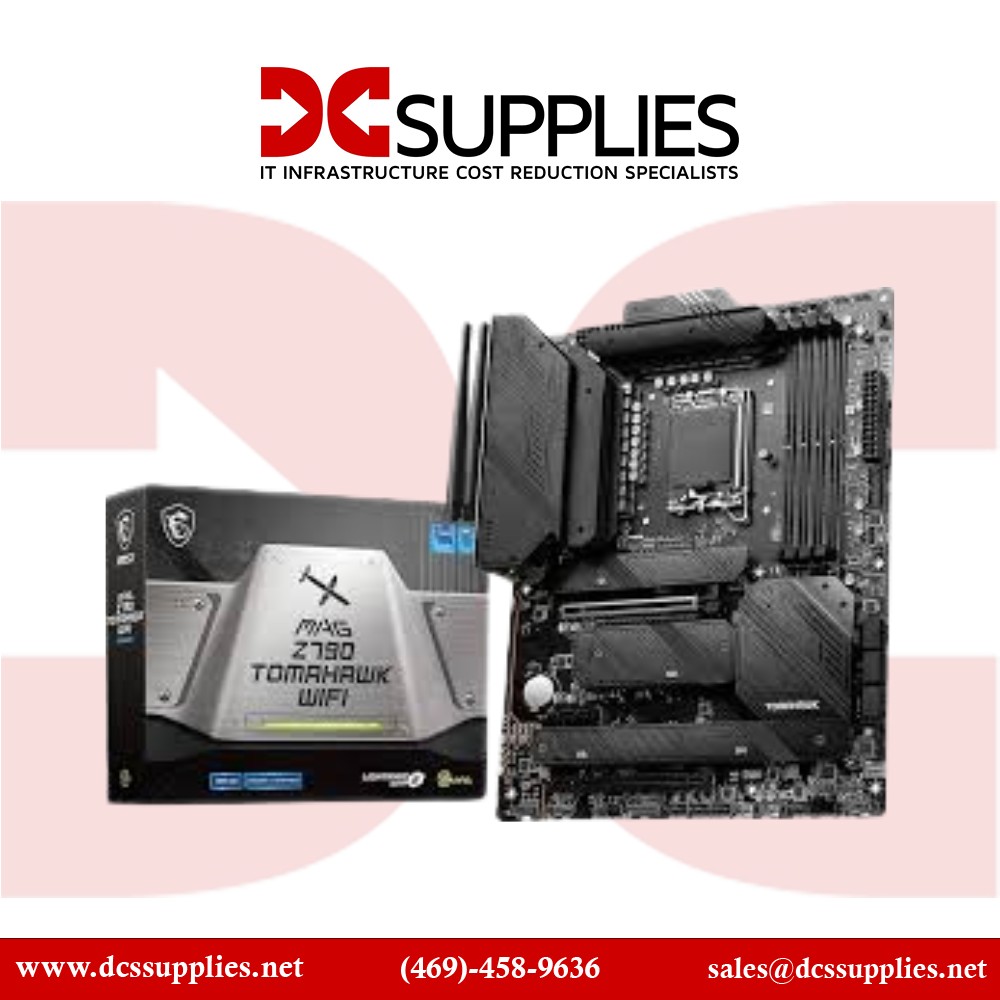

MSI Z790TOMWI Mag Z790 Tomahawk WiFi Intel Z790 DDR5 128GB
Overview :
The Realtek ALC4080 audio codec supports 7.1 channel surround sound, while rear ports allow for analog or digital output. Connect wired peripherals via four USB 3.2 Gen 1 and four Gen 2 Type-A ports, or via USB 3.2 Gen 2 and 2x2 Type-C ports. Output video via DisplayPort and HDMI. The rear I/O panel also sports Clear CMOS and Flash BIOS buttons. Internal headers provide support for front-panel USB 3.2 Gen 2 Type-C and USB 3.2 Gen 1 and 2.0 Type-A ports, RGB connectors, chassis intrusion, a TPM module, and more.
The MAG Z790 Tomahawk fights alongside gamers in pursuit of honor as the motherboard platform of choice for gamers. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
Specifications :
| Product Name |
Mag Z790 Tomahawk WiFi Intel Z790 DDR5 128GB |
| Manufacturer Part Number |
Z790TOMWI |
| Product Type |
Gaming Desktop Motherboard |
| Chipset Manufacturer |
Intel |
| Chipset Model |
Z790 |
| Number of Memory Slots |
4 |
| Bluetooth |
Yes |
| Gigabit Ethernet |
Yes |
| Number of PCI Express x1 Slots |
1 |
| Onboard Video |
CPU Dependent Video |
| RAID Supported |
Yes |
| Number of Total Expansion Slots |
3 |
| Number of PCI Express x16 Slots |
2 |
| HDMI |
Yes |
| DisplayPort |
Yes |
| Total Number of USB Ports |
10 |
| Total Number of Onboard USB Ports |
7 |
| Total Number of PCI Express Slots |
3 |
| Memory Form Factor |
DIMM |
| Number of M.2 Interfaces |
4 |
| Memory Technology |
DDR5 SDRAM |
| Processor Socket |
Socket LGA-1700 |
| Form Factor |
ATX |
| Processor Supported |
Pentium Gold
Celeron
Core
|
| Total Processor Supported |
1 |
| Controller Type |
Serial ATA/600 |
| Maximum Memory Supported |
128 GB |
| Graphics Controller Manufacturer |
AMD |
| Audio Channels |
7.1 |
| Wireless LAN |
Yes |
| Wireless LAN Standard |
IEEE 802.11 a/b/g/n/ac/ax |
| Bluetooth Standard |
Bluetooth 5.3 |
| HDMI Version |
2.1 |
| Number of Network (RJ-45) Ports |
1 |
| Number of Onboard USB 2.0 Ports |
4 |
| PCI Express Standard |
PCI Express 3.0
PCI Express 5.0
PCI Express 4.0
|
| Number of eSATA Ports |
7 |
| Memory Speed Supported |
7600 MHz
7400 MHz
7200 MHz
7000 MHz
6800 MHz
6600 MHz
6400 MHz
6200 MHz
6000 MHz
5800 MHz
5600 MHz
5400 MHz
5200 MHz
5000 MHz
4800 MHz
|
| Number of USB 3.2 Gen 2 Type-C Ports |
1 |
| Number of USB 3.2 Gen 1 Type-A Ports |
4 |
| Number of USB 3.2 Gen 2 Type-A Ports |
4 |
| 2.5Gigabit Ethernet |
Yes |
| Processor Generation Supported |
13th Gen
12th Gen
|
| Country of Origin |
China |
| Width |
12" |
| Depth |
9.6" |
| Product Model |
MAG Z790 TOMAHAWK |
| Product Line |
MAG |
| RAID Levels |
10
0
1
5
|
| S / PDIF |
Yes |
| Limited Warranty |
3 Year |
| Brand Compatibility |
Intel |
| Stock Details |
| Manufacturer |
MSI |
| Manuf Part# |
Z790TOMWI |
