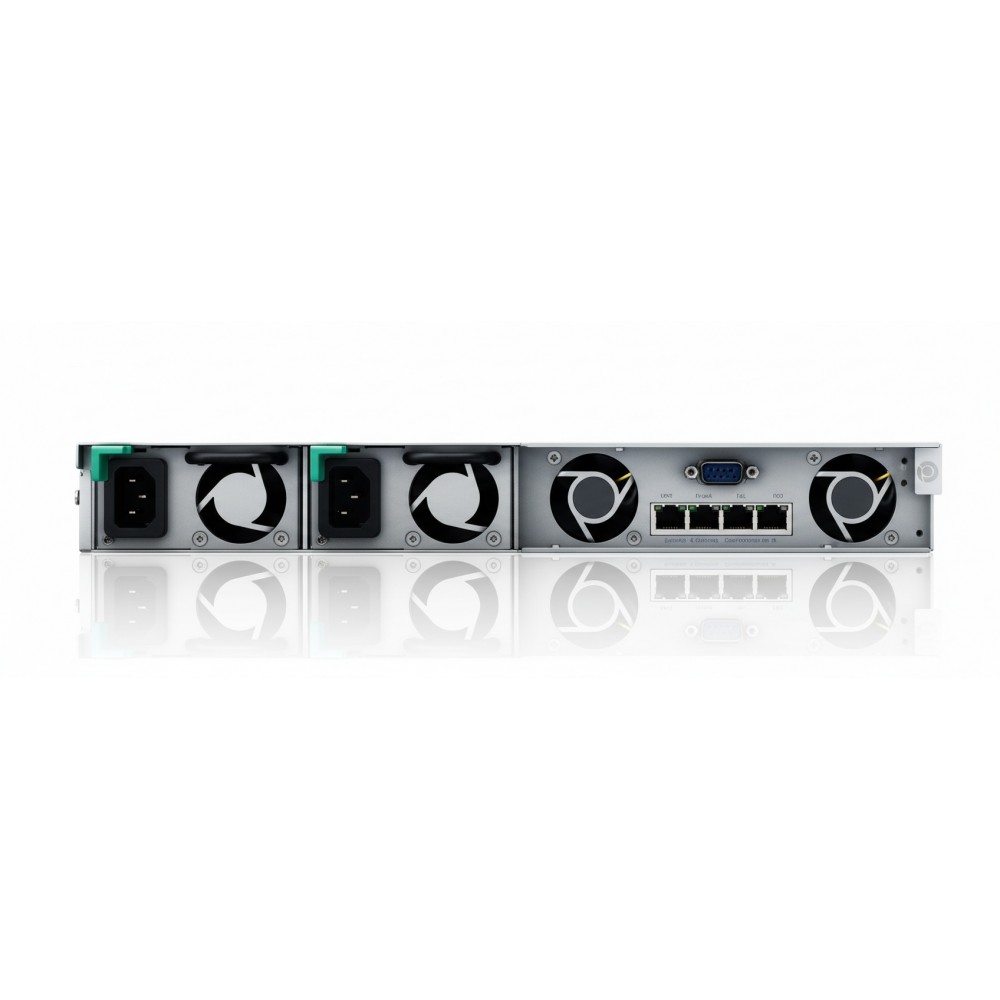

Synology RackStation RS822RP+ server Rack (1U) AMD Ryzen 2.2 GHz 2 GB DDR4-SDRAM 150 W View larger

Synology RS822RP RackStation Server (1U) - AMD Ryzen 2.2 GHz, 2 GB DDR4-SDRAM, 150 W

New

In Stock

The Synology RS822RP is a powerful 1U RackStation server featuring an AMD Ryzen processor, 2 GB DDR4 RAM
×




$1,372.90

  • New

Detailed Specifications

Synology

RS822RP

RackStation Server (1U) – AMD Ryzen 2.2 GHz, 2 GB DDR4‑SDRAM, 150 W

The Synology RS822RP is a compact yet powerful 1U rackmount NAS tailored for branch offices and small-to-medium businesses. Powered by a quad-core AMD Ryzen V1500B CPU clocked at 2.2 GHz and equipped with 2 GB DDR4 ECC memory (expandable to 32 GB), it delivers reliable file sharing, backup solutions, and virtualization storage capabilities. Featuring server-grade redundancy with dual +150 W power supplies, four Gigabit Ethernet ports, and flexible expansion via PCIe and eSATA, the RS822RP blends performance and resilience in a space-saving chassis. Ideal for environments needing dependable storage and high uptime, this server supports active/passive clustering and expandable storage up to 8 bays.

Features

Built for versatility and resilience, the RS822RP comes equipped with four hot-swappable 3.5″/2.5″ SATA bays supporting RAID levels 0, 1, 5, 6, 10, JBOD, and Synology Hybrid RAID. With RAID support and scalable storage up to 108 TB (plus up to eight additional drives via RX418 expansion), it adapts to growing data needs. The redundant dual 150 W power supplies ensure uninterrupted operation even during PSU failure, while DSM enables comprehensive backup, snapshot, recovery, and surveillance functions—all manageable through a single, user-friendly interface.

Advanced Options

Connectivity is handled by four 1 GbE LAN ports supporting link aggregation and failover. A PCIe Gen3 x8 slot allows easy upgrades to 10/25 GbE NICs or NVMe cache acceleration. With Btrfs-based file system and snapshot features for real-time data protection, the RS822RP excels as a dependable central hub for multi-site teams, secure document sharing, and network resilience.

Product Key Features

  • AMD Ryzen V1500B quad-core 2.2 GHz CPU

  • 2 GB DDR4 ECC memory (expandable to 32 GB)

  • 4 hot-swappable 3.5″/2.5″ SATA drive bays

  • Flexible RAID support (0, 1, 5, 6, 10, JBOD, SHR)

  • Dual 150 W redundant power supplies

  • 4 × 1 GbE RJ‑45 ports with LAG and failover

  • PCIe Gen3 x8 expansion slot for 10/25 GbE or SSD caching

  • Synology DiskStation Manager with Btrfs, snapshots, backups, surveillance

Reliability & Performance

Engineered for mission-critical reliability, the RS822RP features redundant power to eliminate single points of failure. Its Ryzen V1500B CPU and ECC memory provide efficient processing and data integrity for concurrent operations like file serving, VM hosting, and surveillance recording. With 47 W typical operating power, it balances performance with energy savings. Thanks to Synology’s DSM, the system delivers advanced backup strategies—including Active Backup Suite, Snapshot Replication, Hyper Backup, and Surveillance Station support for up to 40 cameras—ensuring robust data protection. A PCIe slot enables future upgrades for network speed or SSD caching, and expansion via RX418 unlocks capacity to 12 bays. Tool-free drive access, hot-swappable components, and durable build quality reduce maintenance time, while DSM’s intuitive UI simplifies management for admins.

Key Features (Bullet List)

  • Quad-core Ryzen CPU @ 2.2 GHz

  • 2 GB DDR4 ECC RAM (expandable to 32 GB)

  • 4 × hot-swap SATA drive bays

  • Redundant dual 150 W power supplies

  • 4 × 1 GbE Ethernet ports (LAG/failover)

  • PCIe Gen3 x8 slot for expansion

  • RAID 0/1/5/6/10, JBOD, SHR

  • Btrfs with snapshot, compression, self-healing

  • Synology DSM OS with backup and surveillance

  • Scalable via RX418 expansion chassis

Specifications :

SpecificationDetails
Model Number RS822RP
Form Factor 1U Rack-mounted NAS
CPU AMD Ryzen V1500B, quad-core @ 2.2 GHz
System Memory 2 GB DDR4 ECC (1 × SO-DIMM)
Max Memory 32 GB (2 × 16 GB SO-DIMM)
Drive Bays 4 × 3.5"/2.5" SATA, hot-swappable
Supported Drive Types HDD/SSD SATA
RAID Support 0,1,5,6,10, JBOD, SHR
Expansion Bays Up to 4 more with RX418 expansion unit
PCIe Slot 1 × PCIe Gen3 x8
Ethernet Ports 4 × 1 GbE RJ‑45 (Link Aggregation/Fault Tolerance)
USB Ports 2 × USB 3.2 Gen 1; 1 × eSATA
Redundant PSU Yes, dual 150 W
Power Rating 150 W
Dimensions (HxWxD) ~4.4 cm × 48 cm × 50 cm (1.7″×19″×19.7″)
Weight ~8 kg (17.6 lb)
Noise Level 27.4 dBA
Operating Temperature 0–35 °C, 8–80% RH
Warranty 3-Year Hardware Warranty
