Detailed Specifications

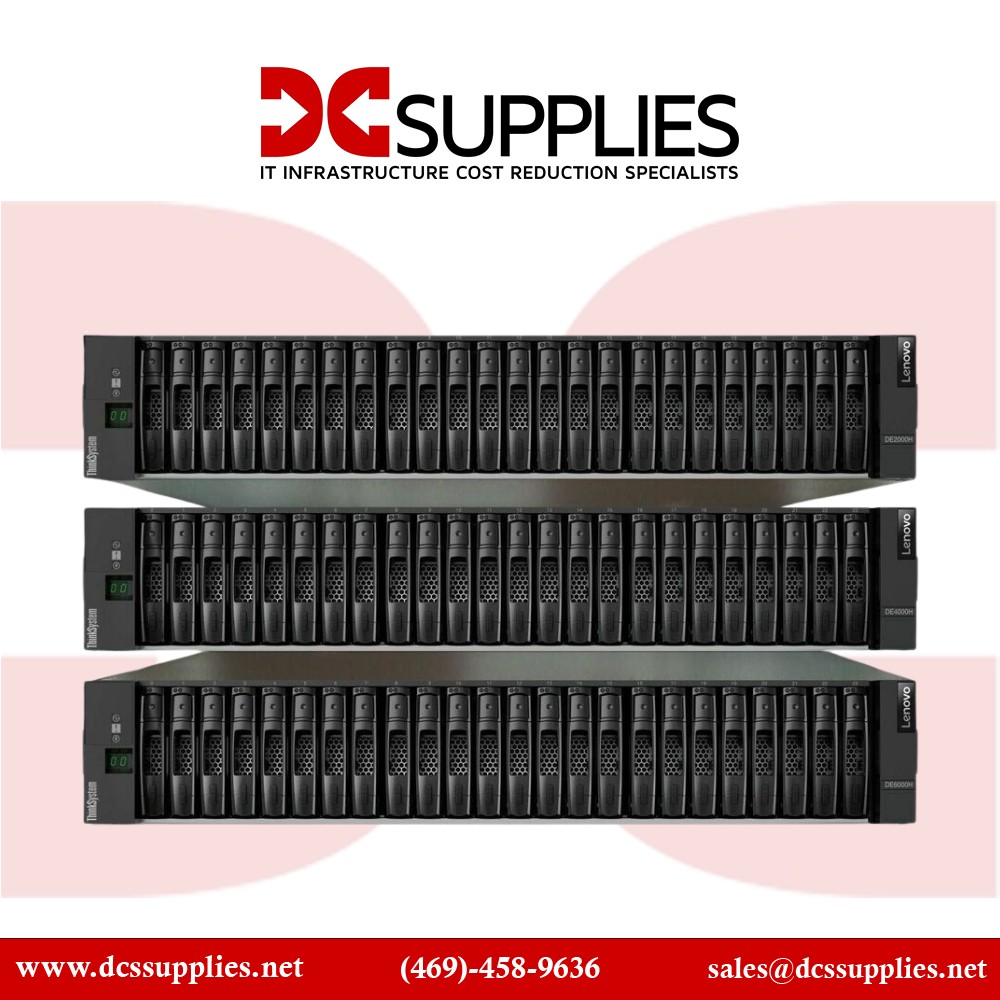

Lenovo 7Y75100BNA Thinksystem DE4000H 12 x 1.8TB
Overview :
Lenovo ThinkSystem DE4000H is a scalable, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE4000H is a perfect fit for a wide range of enterprise workloads, including big data and analytics, video surveillance, technical computing, backup and recovery, and other storage I/O-intensive applications.
ThinkSystem DE4000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF), 12 large form-factor (3.5-inch LFF) drives (2U12 LFF), or a 4U rack form-factor with 60 LFF drives (4U60 LFF) and include two controllers, each with 8 GB or 32 GB cache for a system total of 16 GB or 64 GB. Universal 1/10 Gb iSCSI or 4/8/16 Gb Fibre Channel (FC) ports provide base host connectivity, and the host interface cards provide additional 1/10 Gb iSCSI or 4/8/16 Gb FC, 12 Gb SAS, 10/25 Gb iSCSI, or 8/16/32 Gb FC connections.
The ThinkSystem DE4000H Storage Array scales up to 192 drives with the attachment of Lenovo ThinkSystem DE120S 2U12, DE240S 2U24 SFF, and DE600S 4U60 LFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors, 10 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs), and SAS solid-state drives (SSDs).
Specifications :
| Product Name |
Thinksystem DE4000H, 12 x 1.8TB |
| Manufacturer Part Number |
7Y75100BNA |
| Product Type |
DAS/SAN Storage System |
| RAID Supported |
Yes |
| Ethernet Technology |
Gigabit Ethernet |
| Number of Total Expansion Bays |
24 |
| Network (RJ-45) |
Yes |
| Maximum Power Supply Wattage |
913 W |
| Product Family |
ThinkSystem DE |
| Total Number of USB Ports |
2 |
| Number of Hard Drives Supported |
24 |
| Number of Hard Drives Installed |
0 |
| Number of 2.5" Bays |
24 |
| Limited Warranty Duration |
3 Year |
| Rack Height |
2U |
| Fibre Channel |
Yes |
| Form Factor |
Rack-mountable |
| RAID Levels |
0, 1, 3, 5, 6, 10 |
| Controller Type |
12Gb/s SAS |
| Host Interface |
12Gb/s SAS |
| Environmentally Friendly |
Yes |
| Environmental Certification |
RoHS |
| Number of Power Supplies Installed |
2 |
| Redundant Power Supply |
Yes |
| Number of Network (RJ-45) Ports |
2 |
| Number of Solid State Drive Supported |
24 |
| Number of Solid State Drive Installed |
0 |
| Number of SAS Ports (External) |
8 |
| Height |
3.3" |
| Width |
17.7" |
| Depth |
21.8" |
| Number of Controllers |
2 |
| Product Series |
DE |
| Plug / Connector Type |
C13 to IEC 320-C14 |
| Product Model |
DE4000H |
| Product Line |
ThinkSystem |
| Limited Warranty |
3 Year |
| Stock Details |
| Manufacturer |
Lenovo |
| Manuf Part# |
7Y75100BNA |
