Detailed Specifications

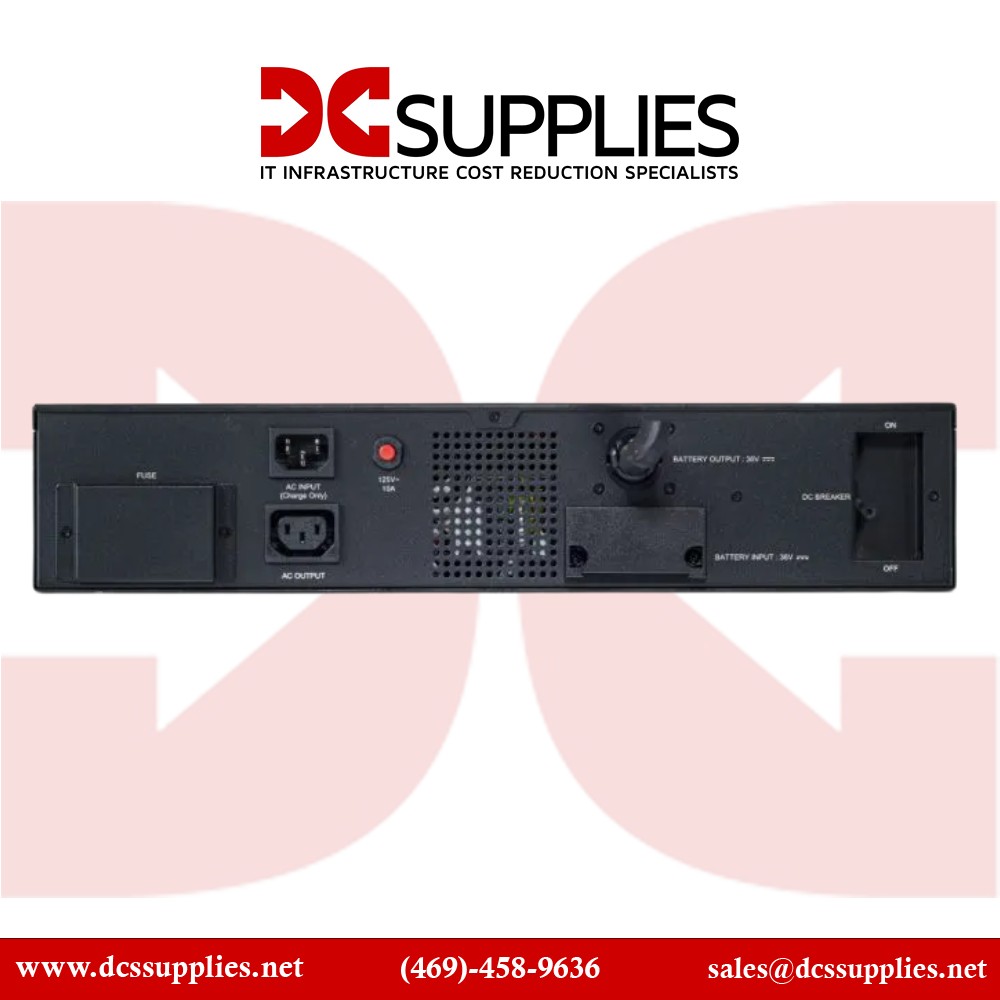

CyberPower BP36V60ART2U Extended Battery Module
Overview :
The CyberPower BP36V60ART2U rack/tower convertible Extended Battery Module (EBM), which extends battery runtimes during power outages, is designed for Smart App Online UPS systems OL1000RTXL2U, OL1000RTXL2UN, OL1500RTXL2U and OL1500RTXL2UN. This EBM takes 2U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. It also has a built-in battery charger, providing Fast Charge Technology to quickly restore the backup power supply to full capacity.
Up to ten EBMs can be added to the UPS, and the module's DC plug-and-play power connectors allow for daisy-chaining additional EBMs to a UPS system. The BP36V60ART2U typically has a UPS charging time of 4 hours (0-90%), regardless of whether one or ten EBMS are installed, and comes with a three-year warranty. Extended Battery Module
Expands runtime and quickly restores full backup power with Fast Charge Technology.
Specifications :
| Product Name |
Extended Battery Module for Smart Application Online OL1000RTXL2U 1000VA and 1500VA UPS |
| Product Type |
Battery Unit |
| Battery Capacity |
9000 mAh |
| Battery Characteristics |
User Replaceable |
| Hot Swappable |
Yes |
| Battery Chemistry |
Lead Acid |
| Output Voltage |
36 V DC |
| Environmentally Friendly |
Yes |
| Environmental Certification |
RoHS |
| Maximum Battery Recharge Time |
4 Hour |
| Product Color |
Black |
| Height |
3.5" |
| Width |
17" |
| Depth |
16.9" |
| Product Series |
Extended Battery Modules |
| Product Model |
BP36V60ART2U |
| Package Contents |
- BP36V60ART2U Battery Unit
- User's manual
- Registration card
- Rackmount left rail
- Rackmount right rail
- Left hanging bracket
- Right hanging bracket
- IEC320 C14 to NEMA 5-15P Power cord
- 2 x Rackmount ears (Stands)
- Tie plate
- 8 x M5X8L black pan head screws
- 12 x M5X12L black pan head screws
- 6 x M5X6L silver pan head screws
- 8 x Plastic washers
- 10 x Screw hole dust covers
- 12 x Rubber feet
|
| Limited Warranty |
3 Year |
| Rack Height |
2U |
| Form Factor |
Tower/Rack Mountable |
| Stock Details |
| Manufacturer |
CyberPower |
| Manuf Part# |
BP36V60ART2U |
