Detailed Specifications

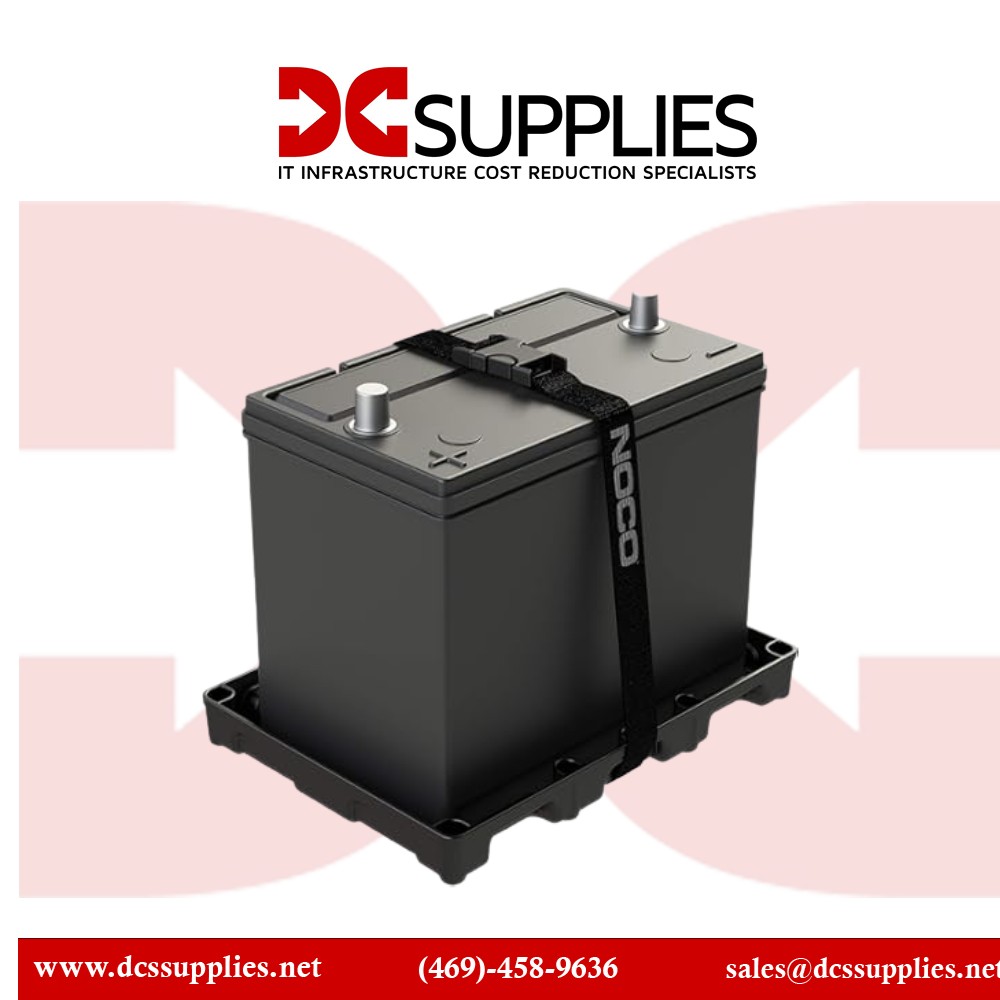

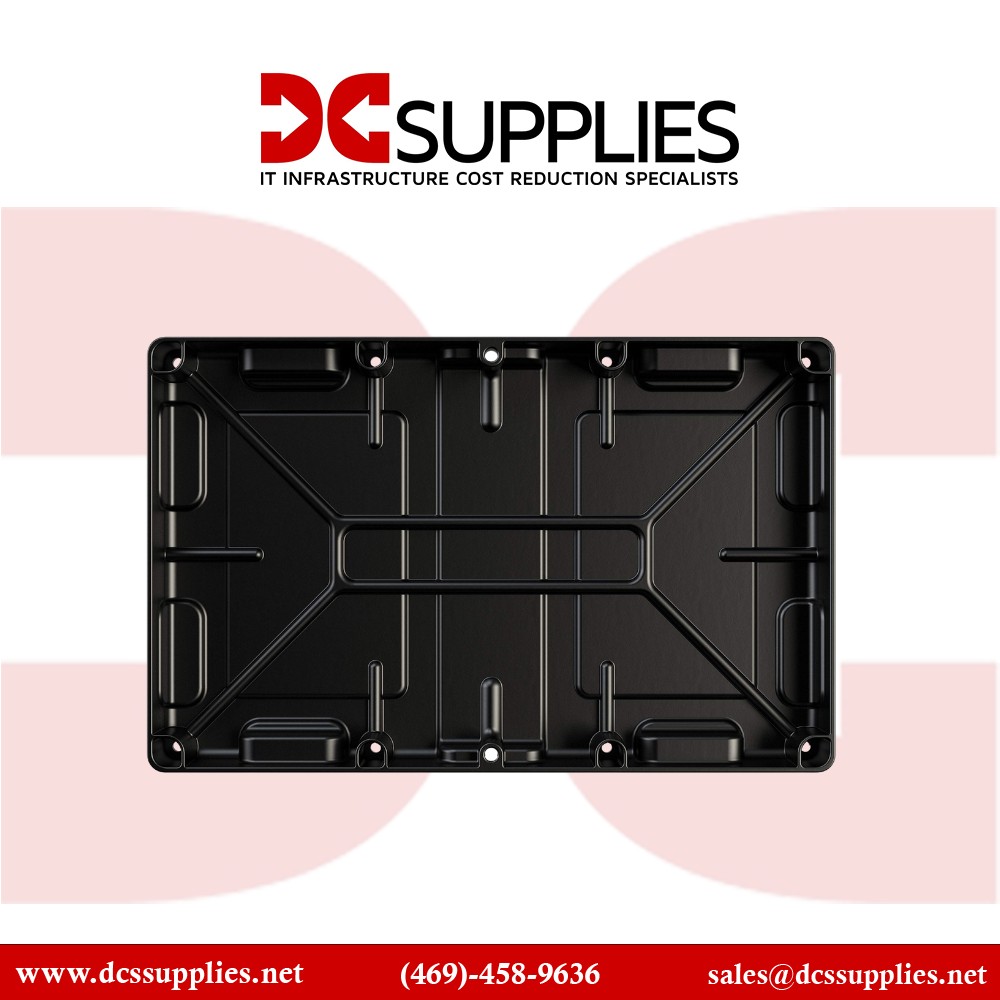

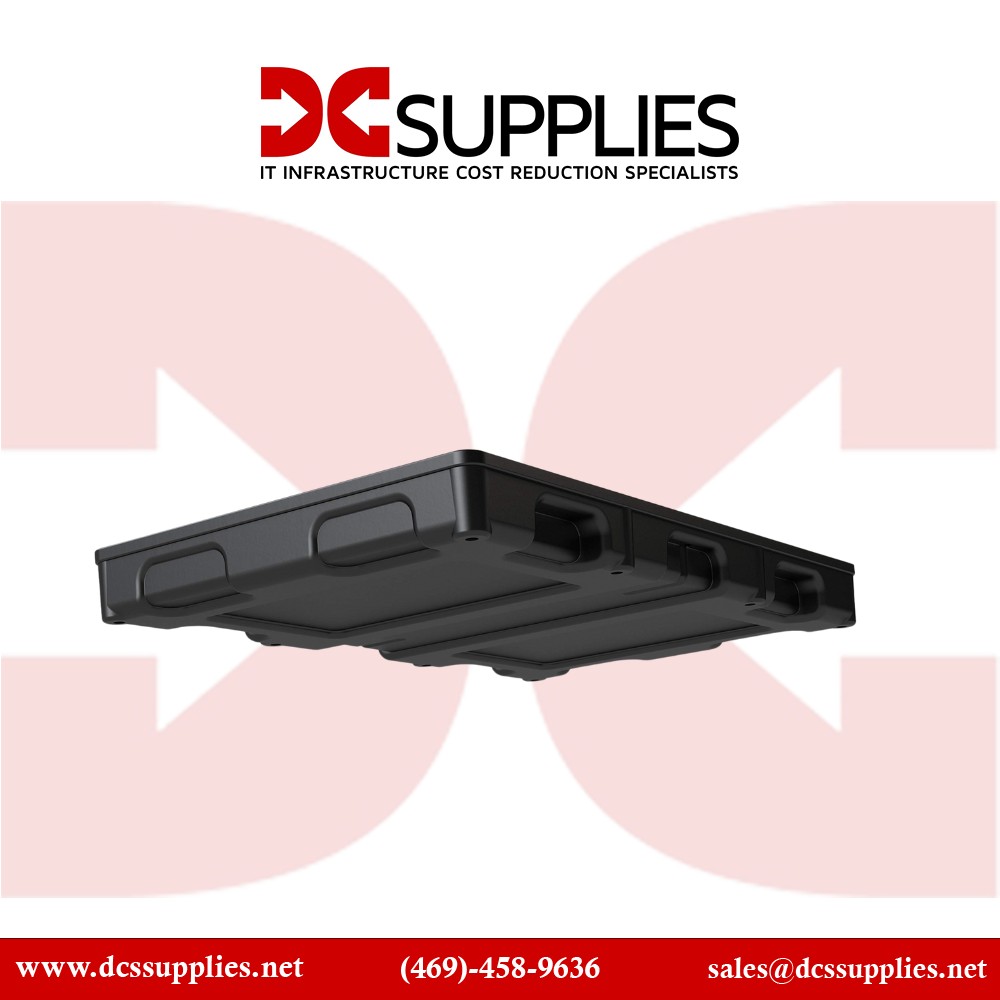

Group 27S Heavy-Duty Battery Tray
The NOCO BT27S is a rugged battery tray designed for single Group 27 batteries, ideal for marine, RVs, trailers, utility vehicles, and generators. It provides secure mounting, crucial venting, and compliance with marine safety standards in demanding conditions.
Features
Made in the USA with heavy-duty UV-stabilized plastic, the BT27S ensures structural integrity as low as -20 °F, with resistance to oil, gas, and battery acid .
Advanced Options
Its ventilated design allows hydrogen gas to escape, while a built-in reservoir captures spilled electrolyte safelyIt supports battery hold-down via the included 42″ nylon strap or optional J-bolts/clamps .
Product Key Features
Holds a single Group 27 battery securely via strap or J-bolt
Extreme-duty plastic×impact-resistant down to -20 °F
Full-flow ventilation and integrated acid reservoir
UV, oil, gas, and chemical resistant for harsh environments
Includes 42″ military-grade strap (120 kg tensile)
Meets USCG CFR 183.420 & ABYC E-10.7 regulatory standards
Reliability & Performance
This tray complies with US Coast Guard and ABYC standards, minimizing battery movement (no more than 1" per regulation) and ensuring durability . With internal dimensions of 13.1" × 7.3" × 1.2" and weighing only ~0.5 lb, it balances ruggedness and portability
Key Features (Bullet List)
Supports Group 27 lead-acid/AGM/lithium batteries
42″ military-grade nylon strap included
J-bolt/clamp compatible (hardware not included)
Rugged plastic×impact-resistant to -20 °F, UV/oil/gas resistant
Full-flow vents plus acid-resistant reservoir
Compliant with USCG CFR 183.420 and ABYC E-10.7 standards
| Specification | Details |
|---|
| Model Number | BT27S |
| Type | Heavy-Duty Battery Tray for Group 27 |
| Material | Industrial-grade, UV-stabilized plastic |
| Battery Fit | Single Group 27 battery (max 13.1″×8.3″) |
| Internal Dimensions | 13.1 × 7.3 × 1.2 in |
| External Dimensions | 13.3 × 8.4 × 1.3 in |
| Weight | ~0.5 lb (0.22 kg) |
| Hold-Down Methods | 42″ strap (120 kg tensile) or J-bolts/clamps |
| Ventilation | Full-flow vents; acid-resistant internal reservoir |
| Temperature Range | -20 °F to +320 °F |
| Chemical Resistance | Acid, UV, oil, gas |
| Certifications | USCG CFR 183.420; ABYC E-10.7 |
