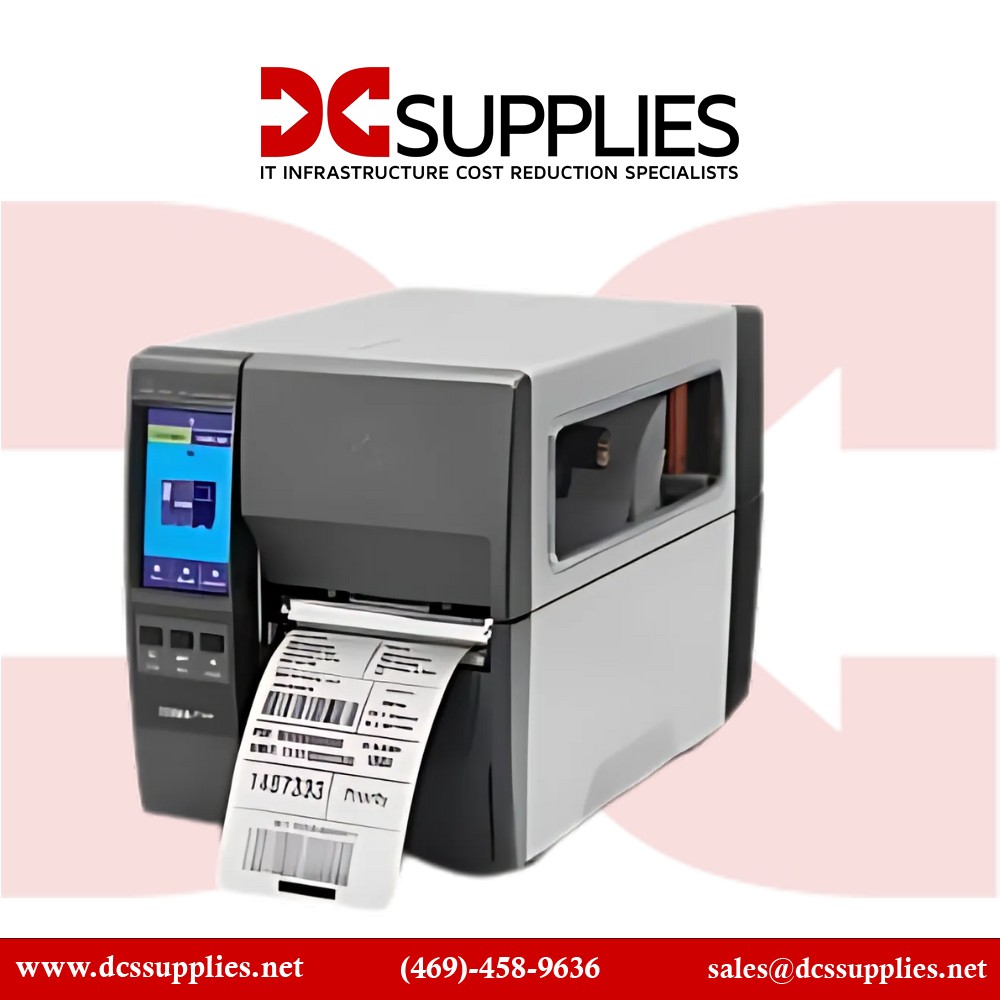

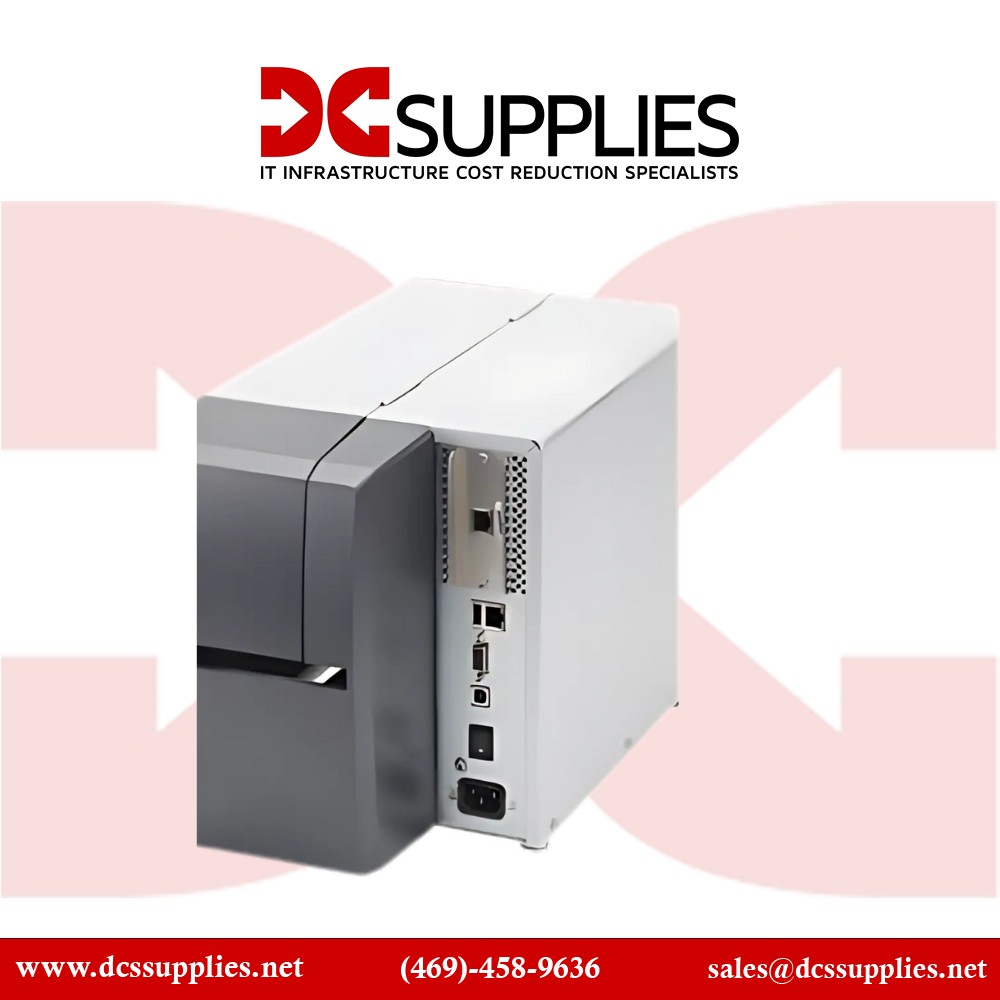

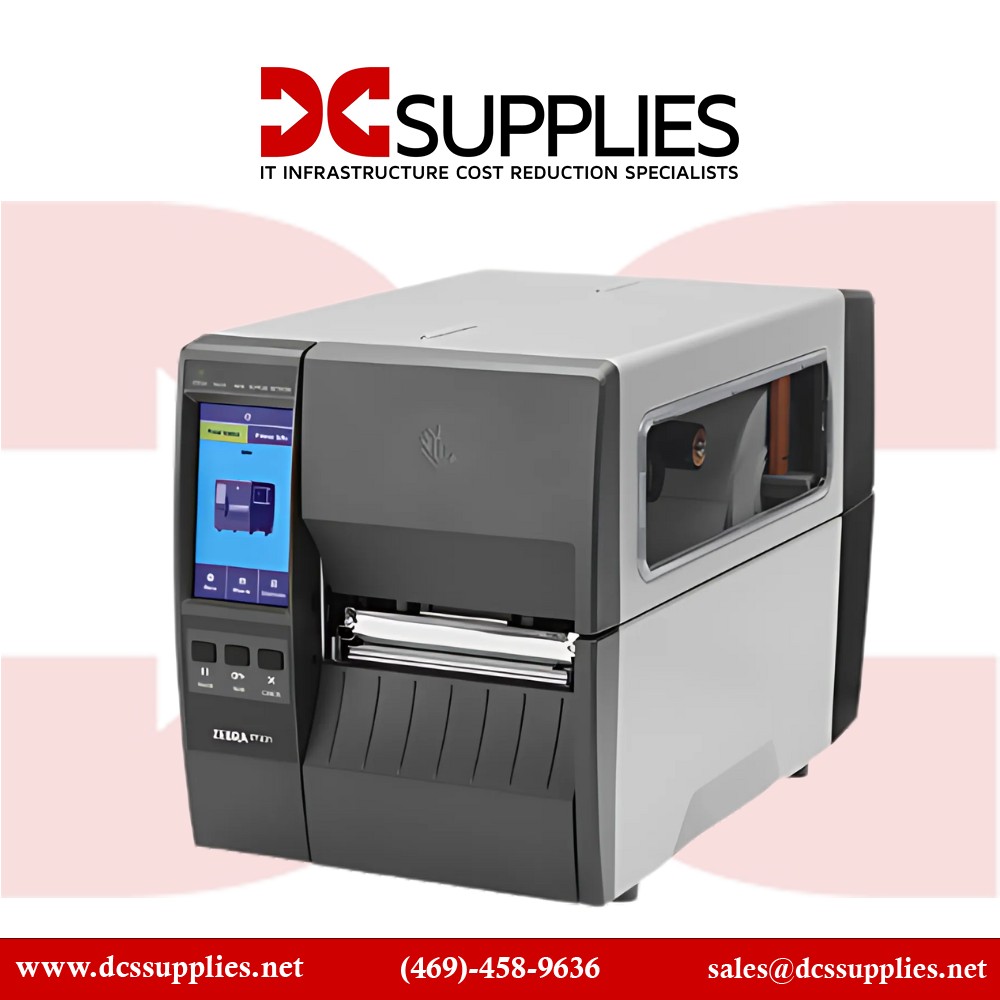

Zebra ZT23143-T21000FZ Barcode Label Printer

ZT23143-T21000FZ

New

Cost-Effective 4-Inch Thermal Transfer Printer with USB, Ethernet, and Color Touchscreen
×




Detailed Specifications

Zebra ZT23143-T21000FZ

Industrial Barcode Label Printer

The Zebra ZT23143-T21000FZ is a reliable, cost-effective industrial thermal transfer label printer designed for medium- to high-volume applications. With fast processing, a 4.3-inch full-color touchscreen, and 300 dpi resolution, it’s ideal for detailed barcode labels used in manufacturing, transportation, logistics, and retail environments.

Features :

This printer delivers enterprise-grade performance in a compact industrial design. It offers standard connectivity including USB, USB Host, Serial, and Gigabit Ethernet, while its 300 dpi thermal transfer print resolution ensures crisp, detailed output. The large 4.3-inch color touchscreen facilitates easy navigation and setup, and its rugged all-metal frame is engineered for demanding environments.

Advanced Options :

The ZT23143-T21000FZ is built with a side-loading media path complete with color-coded guidance, which minimizes downtime during ribbon or media changes. Powered by Zebra’s Print DNA software suite, including PrintSecure, it offers remote management, upgradable security, and robust monitoring—simplifying printer deployment and ensuring long-term reliability.

Product Key Features

  • 300 dpi thermal transfer print resolution for crisp, detailed output
  • Standard connectivity: USB, USB Host, Serial, and Gigabit Ethernet
  • 4.3-inch full-color LCD touchscreen with easy navigation and alerts
  • Rugged all-metal frame built for industrial durability
  • Side-loading supplies path with a color-coded guidance system
  • Powered by Zebra’s Print DNA suite for streamlined deployment and security

Reliability & Performance :

Built for long-term use and continuous operation, the Zebra ZT23143-T21000FZ is ideal for production lines, shipping stations, and industrial labeling environments. Its rugged metal construction and high-resolution printhead deliver consistent print quality and accuracy, while intelligent Print DNA tools enable remote management and predictive maintenance to minimize downtime.

Key Features :

  • 300 dpi thermal transfer print resolution for precise output
  • Comprehensive connectivity: USB, USB Host, Serial, and Gigabit Ethernet
  • 4.3-inch full-color touchscreen for intuitive operation
  • Rugged all-metal frame with a metal media cover for industrial durability
  • Side-loading media handling with color-coded guidance
  • Integrated Zebra Print DNA suite with Print Secure for management and security

Specifications :

SpecificationDetails
Model Number ZT23143-T21000FZ
Printer Type Industrial Thermal Transfer Label Printer
Print Method Thermal Transfer / Direct Thermal
Print Resolution 300 dpi
Max Print Width 4.09 inches (104 mm)
Max Print Speed Up to 8 ips (inches per second)
Display 4.3-inch Full-Color Touchscreen
Construction Metal Frame with Metal Media Cover
Connectivity (Standard) USB, USB Host, Serial, Gigabit Ethernet
Memory 256 MB SDRAM / 512 MB Flash
Media Handling Side-loading with color-coded guidance
Dimensions (W x D x H) 9.8 x 17.0 x 11.0 in (249 x 432 x 279 mm)
Weight Approx. 20 lbs (9.1 kg)
Software Platform Zebra Print DNA, including Print Secure
