Zebra ZT42163-T110000Z Barcode Label Printer View larger
Previous Next

Zebra ZT42163-T110000Z Barcode Label Printer

ZT42163-T110000Z

New

High-performance industrial barcode label printer
×




Detailed Specifications

Zebra ZT42163-T110000Z

ZT421 Barcode Label Printer

The Zebra ZT42163-T110000Z is a high-performance industrial barcode label printer built for mission-critical operations in manufacturing, logistics, and retail. With multiple connectivity options, flexible media compatibility, and optional RFID, this printer delivers consistent, scalable, and high-resolution label output across diverse applications.

Features :

Equipped with a durable all-metal frame and intuitive side-loading media path, the ZT421 ensures reliable operation and fast maintenance in high-demand environments. The printer supports a wide range of media types and resolutions up to 600 dpi (on select models), providing the precision required for detailed barcodes, compliance labels, and asset tracking.

Advanced Options :

Connectivity is versatile and enterprise-ready with standard Ethernet, USB, and Bluetooth 4.1, and optional dual-band Wi-Fi (802.11ac). The printer is powered by Zebra’s Print DNA suite and Link-OS®, delivering advanced manageability, diagnostics, and security. Optional RFID encoding supports accurate real-time tracking, while the 4.3-inch full-color touchscreen enhances usability.

Product Key Features

  • Durable all-metal construction with compact bi-fold door for space efficiency
  • Print resolutions available up to 600 dpi (on compatible 4-inch models)
  • Multiple connectivity options: Ethernet, USB 2.0, Bluetooth 4.1, optional Wi-Fi 802.11ac

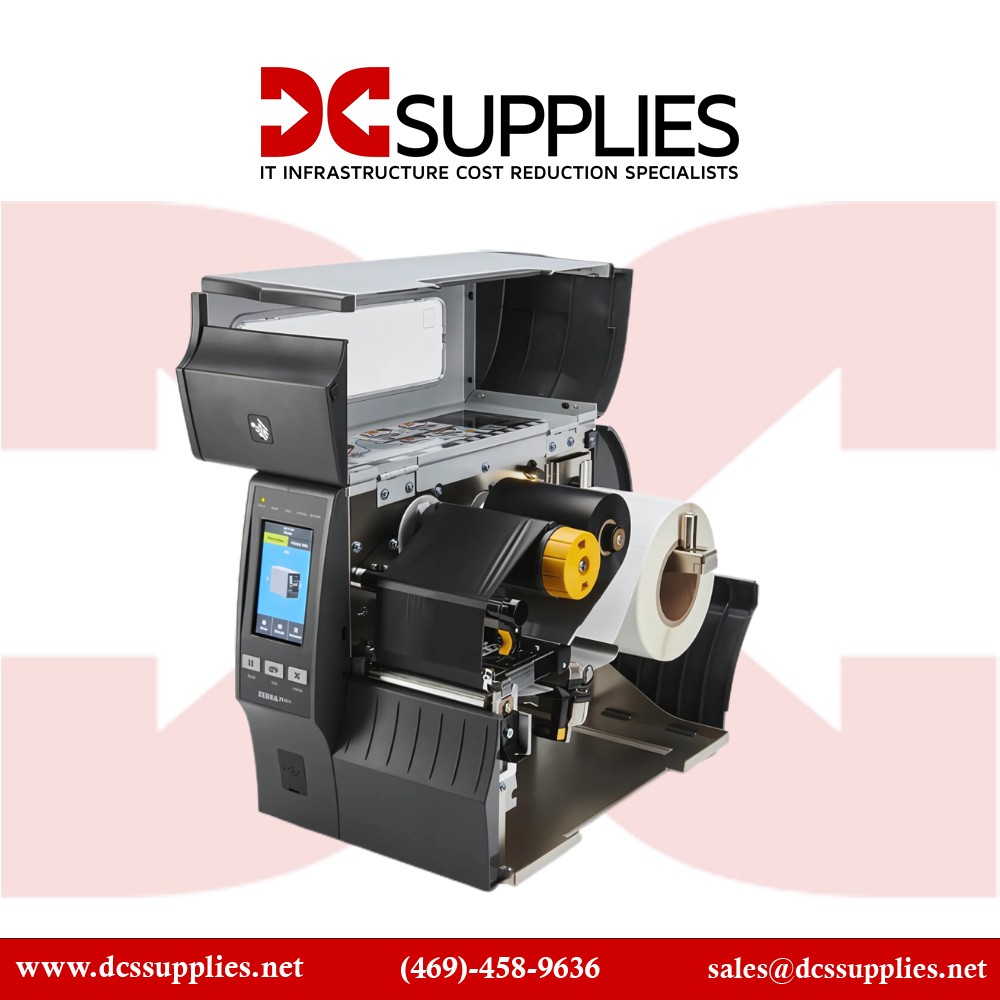

  • Side-loading media and ribbon path with color-coded guides for easy loading
  • Large 4.3-inch color touchscreen with icon-based interface and alert notifications
  • Field-upgradable RFID options and modular media handling capabilities

Reliability & Performance :

The ZT42163-T110000Z is engineered for industrial reliability, featuring rugged metal construction, a modular upgrade path, and high-speed, high-resolution printing. It ensures operational uptime through easy media access, advanced cooling, ENERGY STAR® efficiency, and seamless integration with Zebra's Print DNA platform for long-term device manageability.

Key Features :

  • Rugged all-metal design with space-saving bi-fold door
  • High-resolution printing up to 600 dpi on 4-inch models
  • Print speeds up to 14 inches per second
  • Ethernet, USB 2.0, Bluetooth 4.1, and optional dual-band Wi-Fi
  • Side-loading media system with color-coded guides for easy threading
  • Full-color 4.3-inch touchscreen for monitoring and configuration
  • Compatible with Zebra Print DNA software tools and Link-OS® platform
  • Supports optional RFID modules for advanced tagging applications

Specifications :

SpecificationDetails
Model Number ZT42163-T110000Z
Printer Type Industrial Thermal Label Printer
Print Width 4 inches (102 mm) / 6 inches (152 mm)
Print Resolution 203 dpi, 300 dpi, 600 dpi (on 4-inch model)
Max Print Speed Up to 14 inches per second (356 mm/sec)
Media Types Labels, tags, ribbons, synthetic media
Connectivity Ethernet, USB 2.0, Bluetooth 4.1, optional Wi-Fi 802.11ac
Media Loading Side-loading with color-coded media path
Display 4.3-inch full-color touchscreen
Power Supply External AC adapter
RFID Support Optional RFID module available
Dimensions (W x D x H) Approx. 10 x 12 x 9 inches (25.4 x 30.5 x 22.9 cm)
Weight Approx. 30 lbs (13.6 kg)
