Zebra ZD4AH22-D01W01EZ Barcode Label Printer

Zebra

ZD4AH22-D01W01EZ

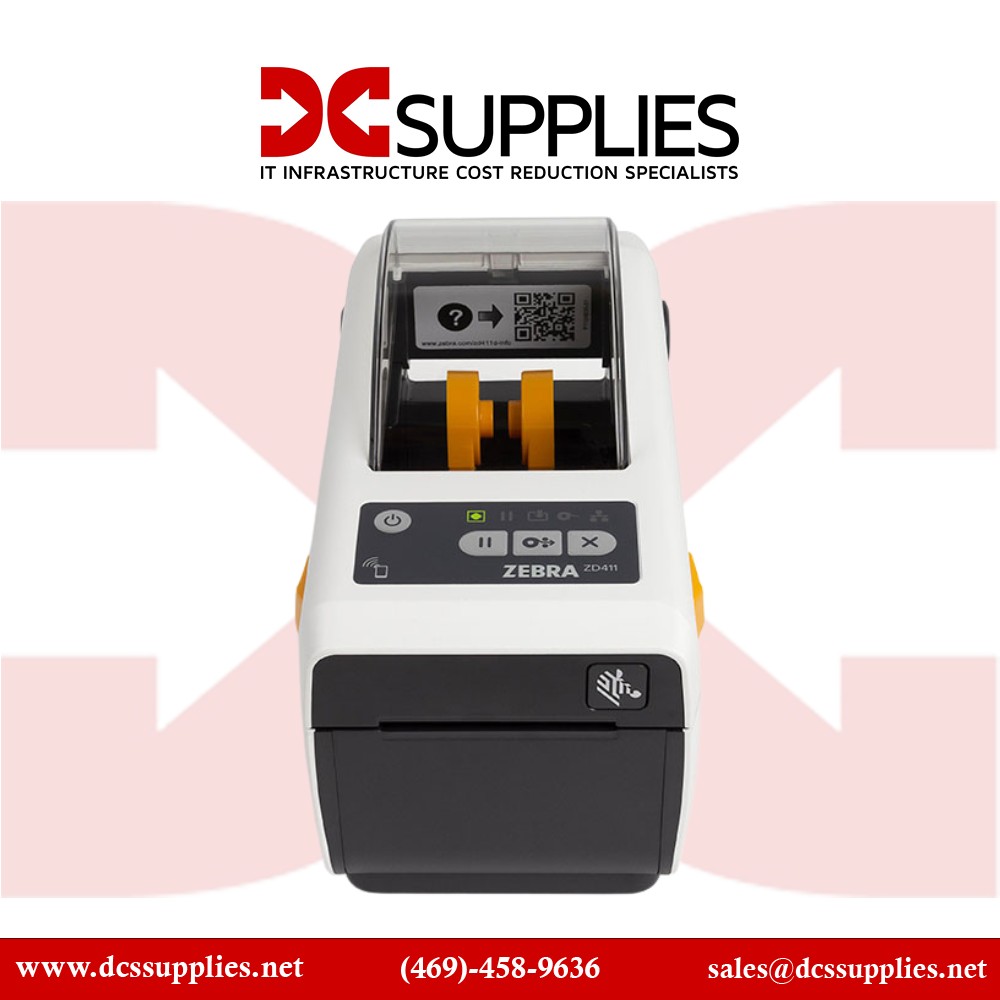

Zebra ZD411 HC Healthcare Desktop Barcode Label Printer

The Zebra ZD4AH22-D01W01EZ (ZD411-HC) is a compact yet powerful 2-inch direct-thermal barcode label printer designed specifically for high-sanitation, space-constrained healthcare environments. Featuring disinfectant-ready, UV-resistant plastics and a medical-grade power supply compliant with IEC 60601-1, it ensures years of safe, reliable performance

Features

In healthcare settings, printers must be robust against frequent disinfecting and seamlessly integrate with clinical systems. The ZD411-HC addresses these needs with sealed buttons, specialized housing, and a design that supports cleaning agents without damage . It offers a 203 dpi resolution for crisp barcodes and small text, printing at speeds up to 6 ips (152 mm/s, effectively handling high-demand label runs like patient wristbands and lab specimens

Advanced Options

Zebra's Print DNA suite, including PrintSecure and Printer Profile Manager, offers robust security and centralized manageability×essential for protecting patient data and ensuring compliance. The compact footprint (8.6″×4.5″×6.0″) and light weight (~2.2 lb) support countertop or mobile cart use, optionally with an added battery pack . Its modular slot allows field upgrades (e.g., Ethernet, serial), extending future compatibility across varying IT configurations.

Product Key Features

• Compact 2″ direct-thermal printer, ideal for tight spaces

• Healthcare-grade, disinfectant-resistant plastics and sealed controls

• 203 dpi print resolution at up to 6 ips (152 mm/s)

• USB, USB Host, Bluetooth 4.1, Wi-Fi 802.11ac (modular expansion)

• Print DNA software: PrintSecure, print emulation, remote management

• Secure medical-grade power supply; optional battery pack support

---

Reliability & Performance

The ZD411-HC is built for uptime and resilience in healthcare environments. Its dual-wall, durable design, corrosion-resistant surfaces, and sealed controls stand up to daily cleaning routines using hospital-grade disinfectants.The medical-grade power supply adheres to IEC 60601-1 standards, ensuring electrical safety in clinical spaces

Key Features (Bullet List)

• 2″ print width, 203 dpi, 6 ips speed

• Disinfectant-ready, UV-resistant housing

• USB, USB Host, Bluetooth 4.1, Wi-Fi 802.11ac

• Medical-grade IEC 60601-1 power supply

• Print DNA: secure firmware, emulation, remote manageability

• Compact: 8.6″×4.5″×6.0″; 2.2 lb

• Field-upgradable via modular slot

Specifications :

Specification	Details
Model Number	ZD4AH22-D01W01EZ (ZD411-HC)
Printer Type	Desktop Direct-Thermal (Healthcare)
Print Resolution	203 dpi (8 dots/mm)
Max Print Width	2.2″ (56 mm)
Max Print Speed	6 ips (152 mm/s)
Memory	512 MB Flash, 256 MB DDR3 SDRAM
Connectivity	USB 2.0, USB Host, Bluetooth 4.1, Wi-Fi 802.11ac (modular slot)
Power Supply	Medical-grade IEC 60601-1
Housing	UV-resistant, disinfectant-ready plastics, sealed buttons
User Interface	5 LED status icons, 3-button control panel
Dimensions (L×W×H)	8.6″×4.5″×6.0″ (218 × 114 × 152 mm)
Weight	~2.2 lb (1.0 kg)
Optional Modules	Ethernet, serial, battery pack
Label Languages	ZPL II, EPL2, XML, EZPL, PDF Direct, Print DNA emulations
