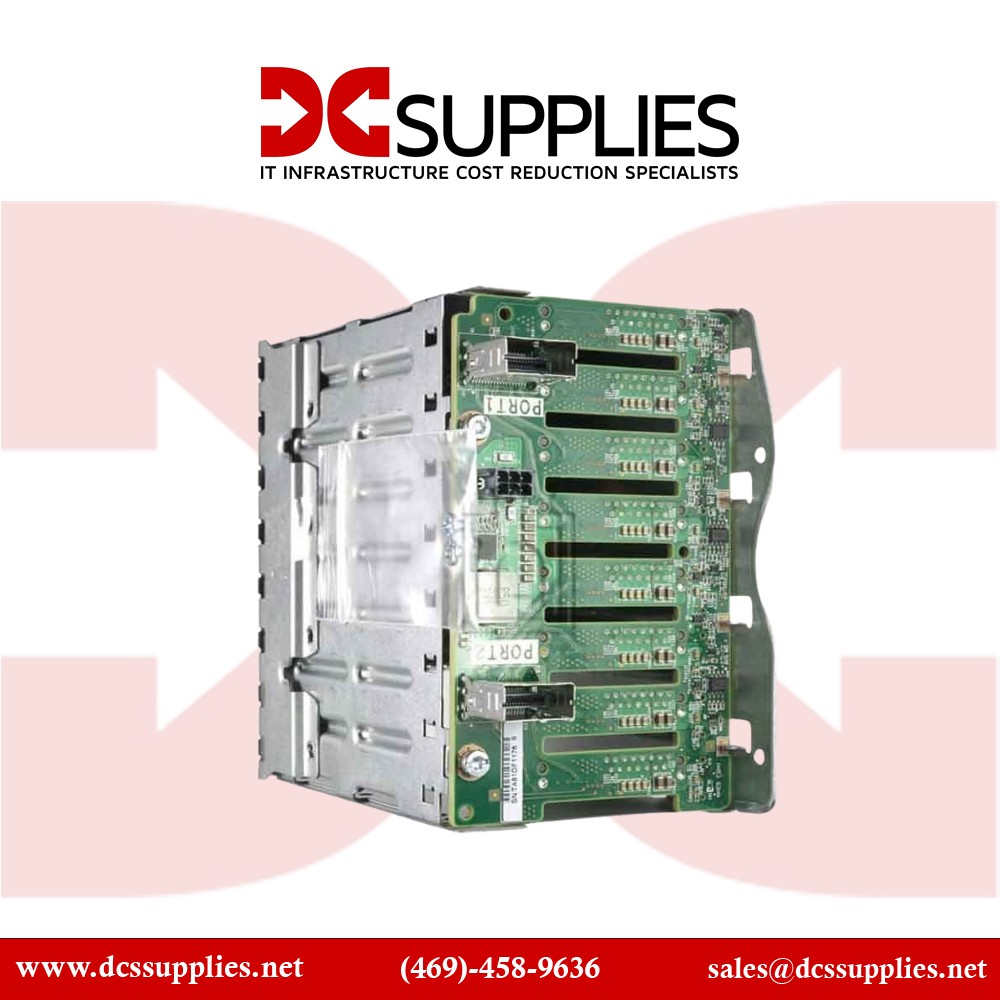

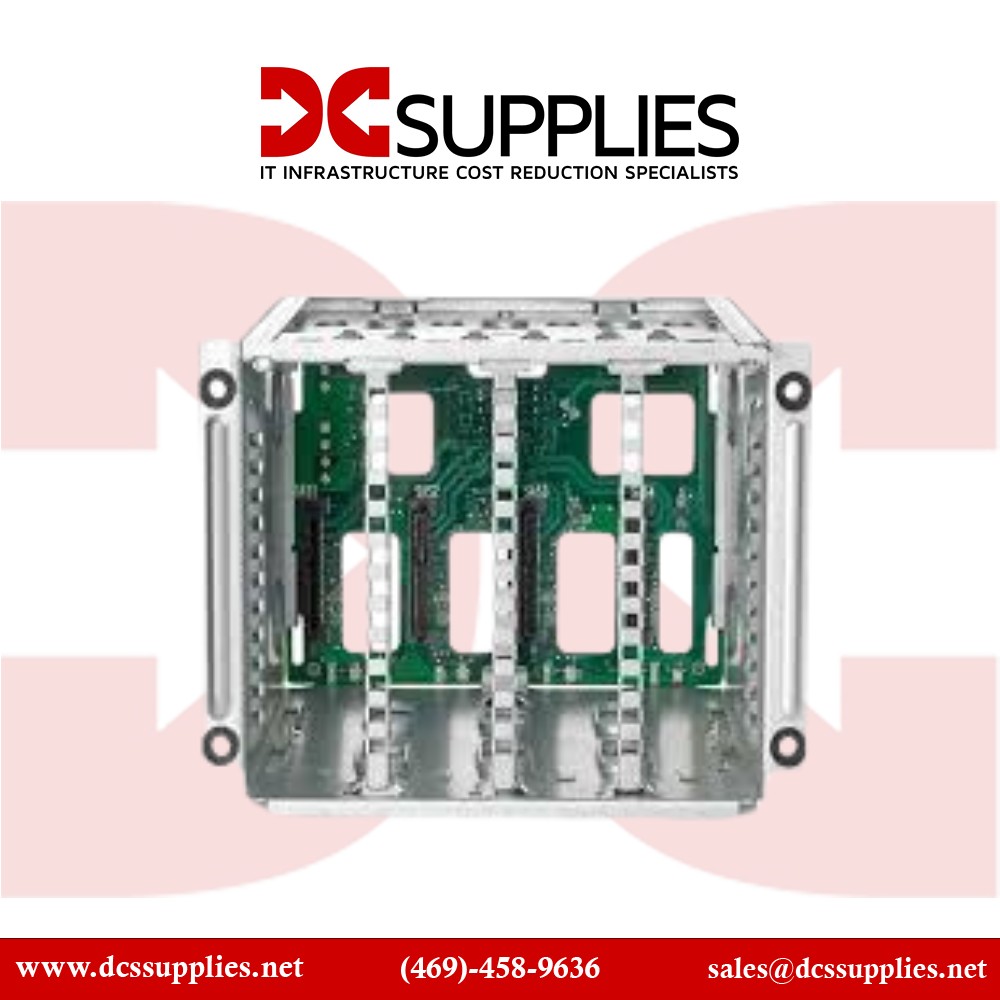

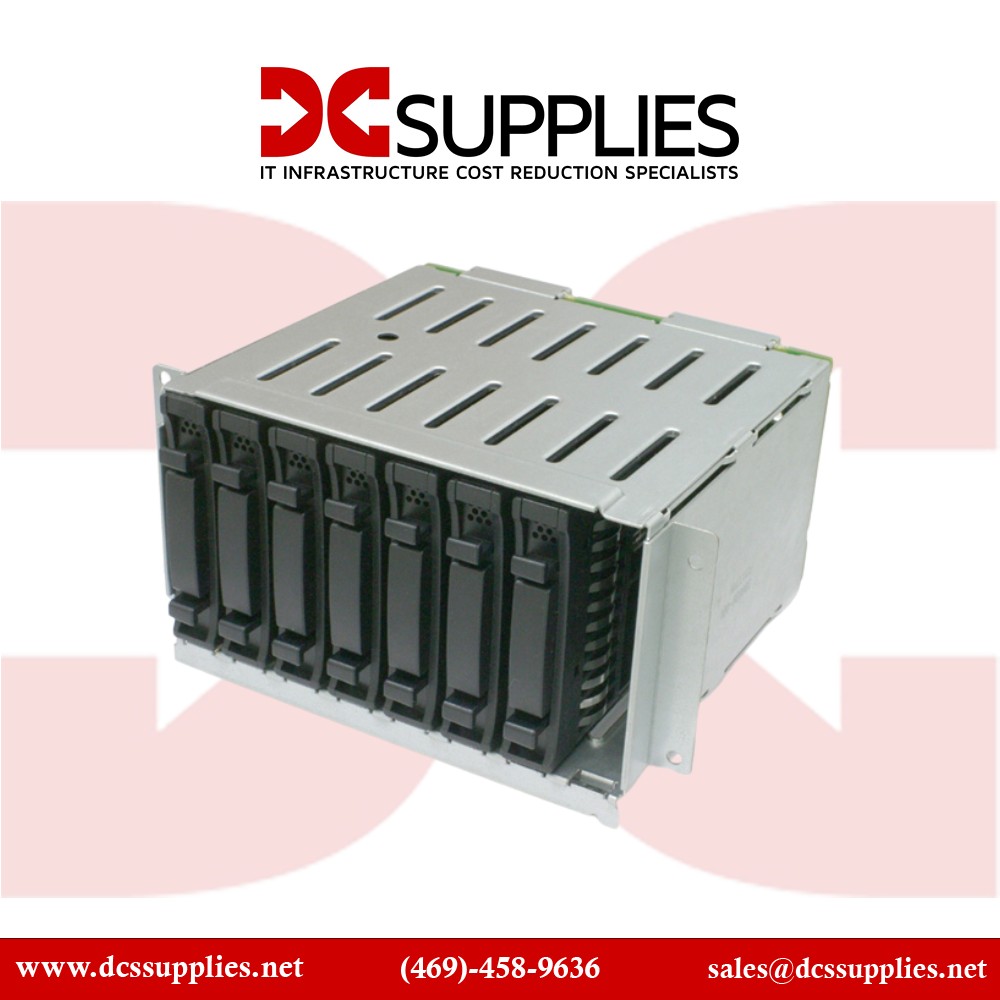

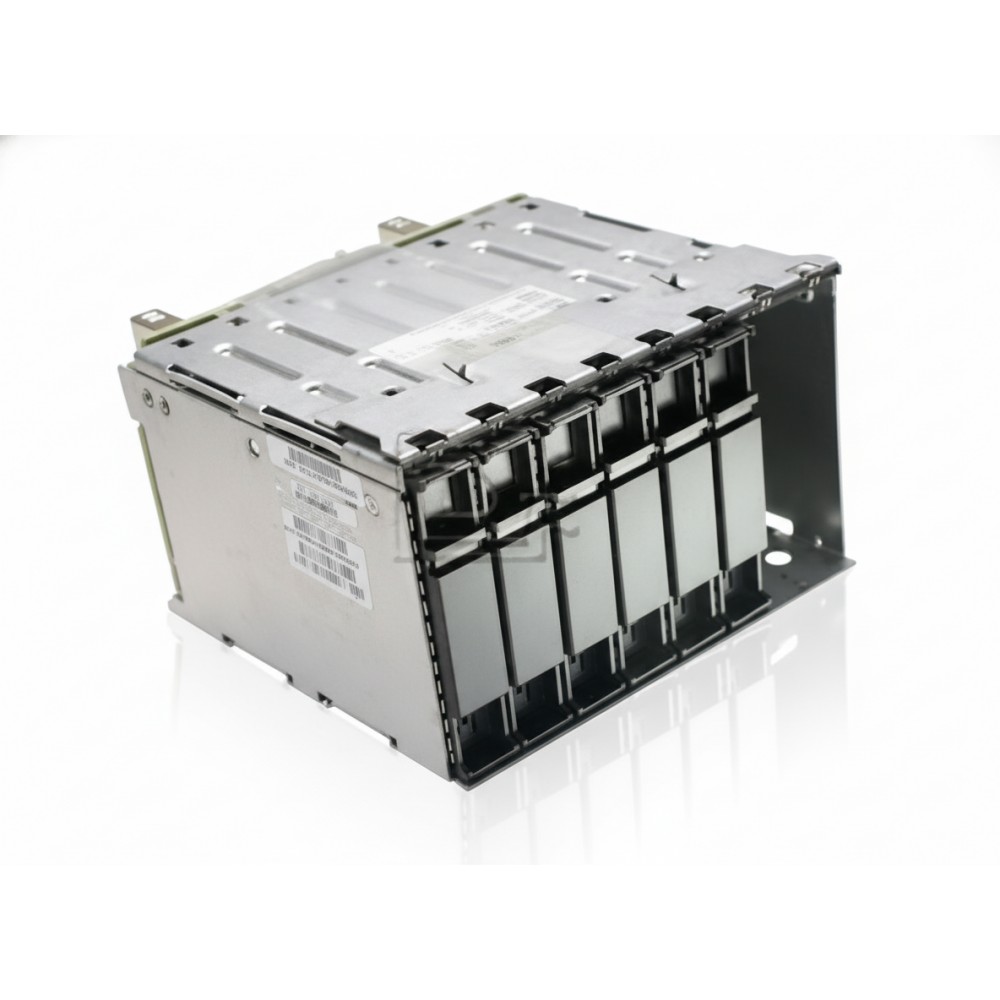

HPE 768857-B21 DL380 Gen9 8-SFF Bay2 Cage Backplane Kit

New

In Stock

HPE 768857-B21: 8-SFF Bay2 cage/backplane for DL380 Gen9

×




$184.90

  • Refurbished

Detailed Specifications

HPE 768857-B21

DL380 Gen9 8‑SFF Bay 2 Cage/Backplane Kit

The HPE 768857‑B21 kit is a storage drive expansion module designed to add eight more hot‑swappable 2.5″ drive bays (Bay 2) to HPE ProLiant DL380 (and DL360) Gen9 servers.

Features

t includes all necessary components—drive cage, SAS/SATA backplane, and cables—to integrate seamlessly with your server’s existing I/O infrastructure

Advanced Options

Ideal for environments with growing storage needs, this kit plugs into the front Bay 2 and connects via mini‑SAS to your existing controller . Whether you’re deploying SSDs for high I/O or HDDs for capacity, it’s a clean solution to scale your server’s storage without changing chassis or motherboard.

Product Key Features

  •  Enables installation of 8 hot-swap 2.5″ SFF drives in Gen9 servers

  •  Includes cage, SAS/SATA backplane, mini‑SAS and power cables

  •  Supports SAS/SATA HDDs and SSDs for versatile storage expansion

  •  Tool-less front-bay installation in Bay 2 of DL380/DL360 Gen9

  •  Rugged enterprise-grade build for reliable operation

  •  Perfect for adding storage capacity in virtualization, backup, and database servers

Reliability & Performance

Constructed to meet HPE’s rigorous standards, this backplane assembly maintains secure drive positioning and supports hot-swap operations to minimize downtime. Its build quality helps prevent drive vibration, reducing data errors. Vendors offer warranties ranging from 90 days to a year, with free same-day shipping on many options .

Key Features (Bullet List)

    • Adds 8 hot‑swap 2.5″ SFF drive bays

    • Supports SAS and SATA HDDs/SSDs

    • Includes cage, backplane board, mini‑SAS & power cables

    • Tool-less installation in front Bay 2 of Gen9 chassis

    • Compatible with DL380 Gen9 (and DL360) servers

    • Enterprise-grade build with hot-swap and vibration resistance

SpecificationDetails
Part Number 768857‑B21
Product Type 8‑SFF Drive Cage + SAS/SATA Backplane Kit
Drive Bays 8 × hot-swap 2.5″ SFF
Interface SAS/SATA via mini‑SAS cables
Includes Cage, backplane board, mini‑SAS cables (2), power cables (2)
Compatibility HPE ProLiant DL380 Gen9 (Bay 2), DL360 Gen9
Mount Location Front Bay 2 of 2U rackmount chassis
Form Factor Internal 2U drive module
Dimensions (WxDxH) ~12.85 × 27 × 21.1 cm (5.1×10.6×8.3 in)
Weight ~0.45 kg (approx. 1 lb)
Warranty 90 days to 1 year (vendor-dependent)
