Black Box AVSW-VGA4X1A 4 x 1 VGA Switch With Serial And Audio View larger

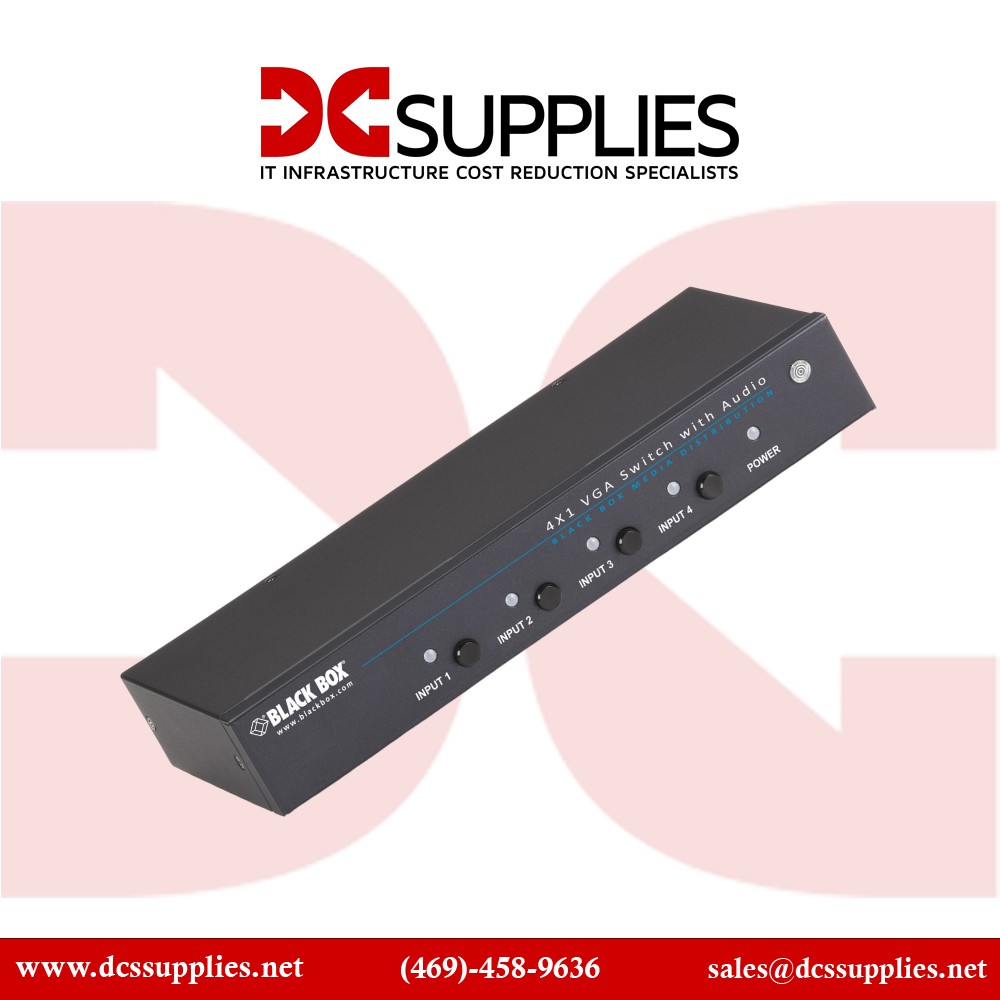

Black Box AVSW-VGA4X1A 4x1 VGA Switch with Serial and Audio

New

Black Box AVSW-VGA4X1A: 4x1 VGA switch with serial and audio support.
×




  • New

Detailed Specifications

Black Box AVSW-VGA4X1A

4x1 VGA Switch with Serial and Audio

The Black Box AVSW‑VGA4X1A is a high‑performance 4×1 VGA switch that lets you switch between four VGA video sources to one VGA display. It also supports stereo audio switching and serial control for remote management, making it ideal for classrooms, training facilities, and conference rooms.

As part of the Black Box AV family, the AVSW‑VGA4X1A ensures reliable, clear VGA video transfer with audio synchronization. Its RS‑232 serial interface enables full integration into AV control systems for professional environments.

Features :

This VGA Switch provides quick input selection through front‑panel buttons, IR remote control, or serial commands. Supporting resolutions up to 1920 × 1200, it ensures clear picture quality, while stereo audio keeps your presentations synchronized.

Advanced Options :

The AVSW‑VGA4X1A offers EDID support for video compatibility, auto‑scanning, and RS‑232 remote control integration. Its compact design is perfect for desktop or rack installations, and rugged construction ensures long‑term reliability in demanding environments.

Product Key Features

  • 4 VGA inputs, 1 VGA output
  • Stereo audio switching included
  • RS‑232 serial control for remote management
  • Supports resolutions up to 1920 × 1200
  • Compact, durable design
  • Front panel buttons, IR remote, or auto‑scan for control
  • Backed by Black Box quality

Reliability & Performance :

The Black Box AVSW‑VGA4X1A delivers dependable VGA and audio switching functionality with minimal signal degradation. Ideal for presentation environments, it ensures consistent, stable quality for both video and audio. Serial control integration increases flexibility for automation systems in enterprise AV networks.

Key Features :

  • Professional VGA video switch with audio
  • 4 inputs, 1 output with easy selection
  • Serial RS‑232 remote controllable
  • EDID support maintains video compatibility
  • Durable and compact design
  • Certified by Black Box

Specifications :

SpecificationDetails
Part Number AVSW-VGA4X1A
Brand Black Box
Product Type 4×1 VGA Switch with Audio & Serial Control

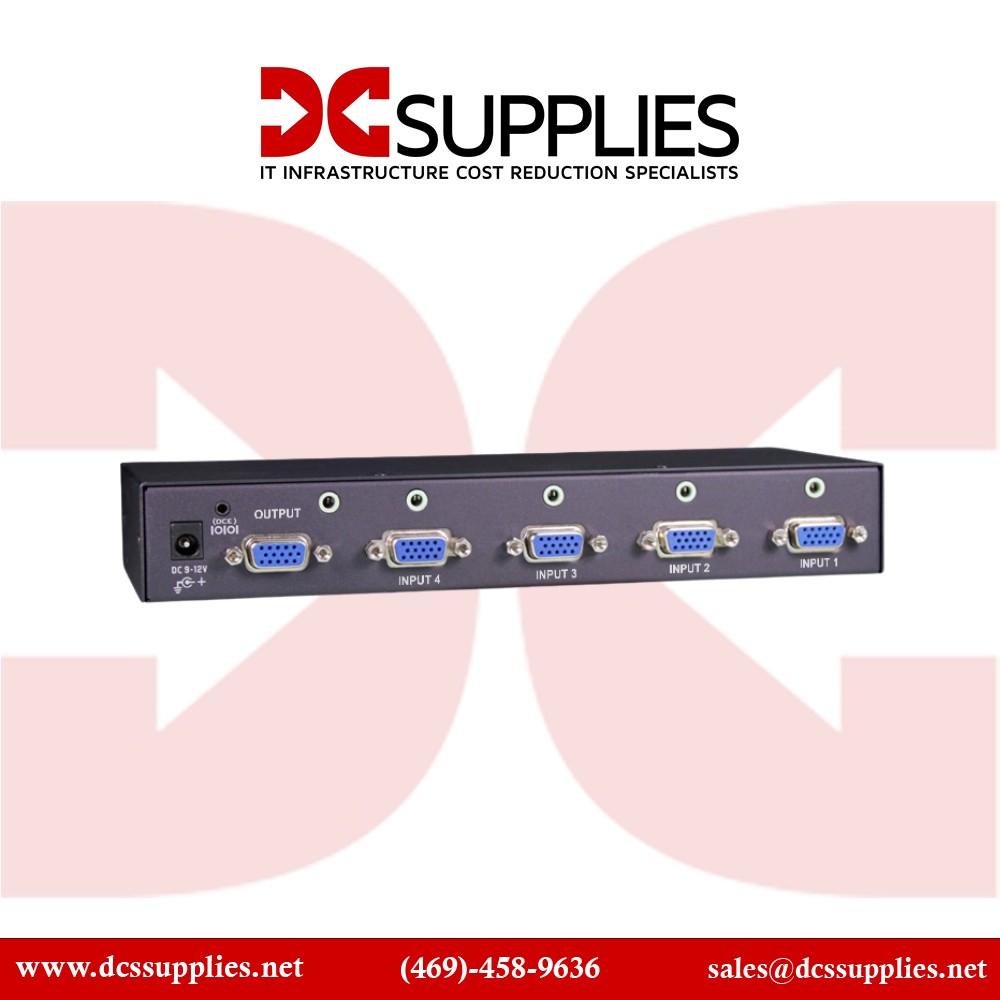

Inputs 4 × VGA + stereo audio
Output 1 × VGA + stereo audio
Resolution Support Up to 1920 × 1200
Control Options Front panel buttons, IR remote, RS‑232 serial
Auto-Scan Yes, selectable
Video Bandwidth Up to 250 MHz
Audio Support Stereo, 3.5 mm jacks
EDID Support Yes
Indicators LED status indicators
Enclosure Metal, compact form factor
Power Supply External DC adapter
Power Consumption < 5W typical
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 70°C
Dimensions Approx. 8 × 4 × 1.7 in
Weight Approx. 1 kg
Compliance CE, FCC, RoHS
Application Conference rooms, classrooms, training labs
Warranty Backed by Black Box warranty
