Detailed Specifications

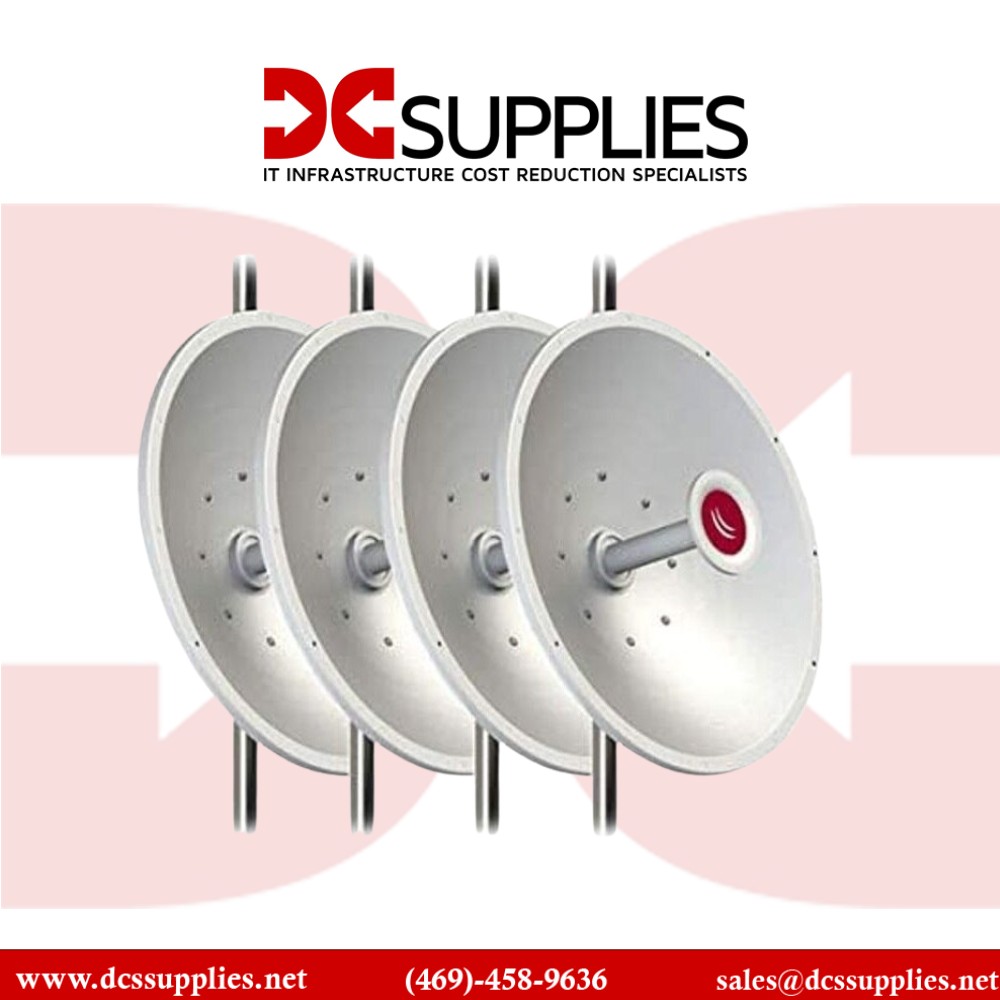

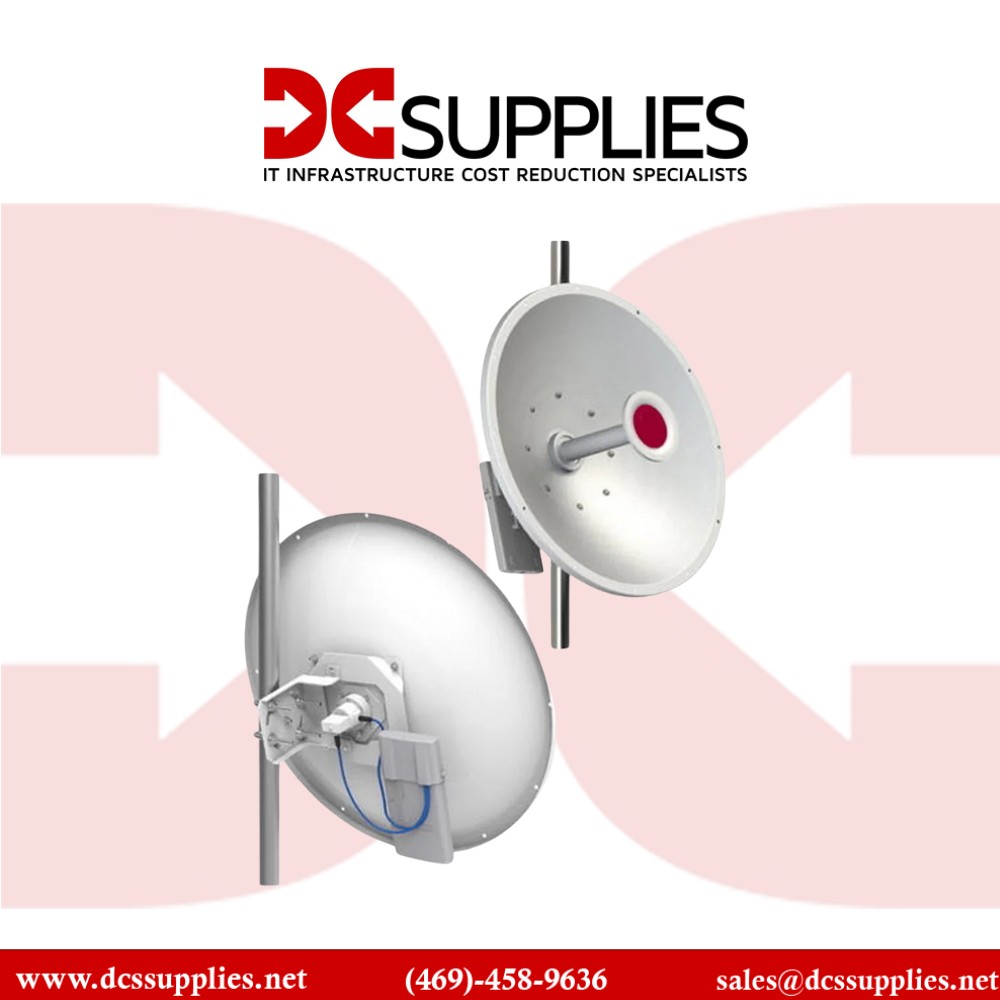

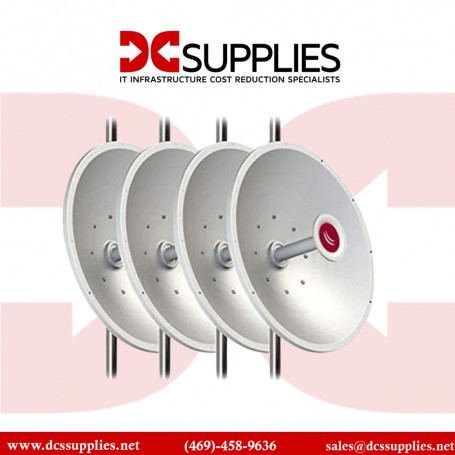

MTAD-5G-30D3-PA mANT30 PA - 30 dBi 5GHz Parabolic Dish Antenna
The MikroTik MTAD-5G-30D3-PA mANT30 PA is a high-performance 5 GHz parabolic dish antenna designed for professional long-range wireless bridging. With a powerful 30 dBi gain and rugged build, it is ideal for service providers, enterprises, or campus networks requiring stable, high-speed point-to-point links over great distances.
Features
Engineered for maximum gain and directional accuracy, the mANT30 PA features a solid dish reflector with precision mounting hardware to ensure perfect alignment, even in windy outdoor conditions. Its dual-polarized feed supports 2x2 MIMO operation, enhancing link capacity and reducing latency×perfect for bandwidth-demanding backhaul connections.
Advanced Options
The antenna is built to integrate seamlessly with MikroTik wireless devices like the Basebox series. With a high-quality mount and included accessories, deployment is fast and reliable for rooftop, tower, or pole-based installations.
Product Key Features
30 dBi gain parabolic dish antenna for 5 GHz long-range links
Ideal for point-to-point wireless bridging and backhaul
Precision alignment system with rugged pole mount kit
Durable outdoor-rated design with high wind resistance
Dual-polarized for MIMO setups with high throughput
Includes antenna feed, mounting kit, and pigtails
Reliability & Performance
Built for durability, the mANT30 PA withstands harsh outdoor environments with UV-resistant, corrosion-resistant materials and wind tolerance up to 125 mph (200 km/h). Its compact feed horn design ensures low side lobes and excellent front-to-back ratio, reducing noise and interference×ideal for crowded RF environments.
Key Features :
30 dBi high-gain parabolic dish antenna
Optimized for 5.1-5.8 GHz frequency range
Dual-linear polarization (H+V) for MIMO performance
Includes precision alignment and pole-mount hardware
Wind survival rating: up to 200 km/h
Designed for MikroTik Basebox and similar devices
Includes pigtails and dish feed
| Specification | Details |
|---|
| Model Number | MTAD-5G-30D3-PA |
| Product Name | mANT30 PA |
| Product Type | Parabolic Dish Antenna |
| Frequency Range | 5.1 - 5.8 GHz |
| Antenna Gain | 30 dBi |
| Polarization | Dual Linear (Horizontal and Vertical) |
| Beamwidth | 3° |
| Connector Type | 2 × RP-SMA |
| Mounting Hardware | Included (Precision Alignment Kit) |
| Compatible Devices | MikroTik BaseBox and other 5GHz radios |
| Wind Load Resistance | Up to 200 km/h (125 mph) |
| Dimensions | Ø 70 cm (dish diameter) |
| Weight | ~3.2 kg (with mount and feed) |
