HPE Aruba JW001A AP-Antenna-13B 2.4/5GHz 4/3dBi Omni

New

HPE Aruba JW001A AP-Antenna-13B 2.4/5GHz 4/3dBi Omni
×




  • New

Detailed Specifications

HPE JW001A

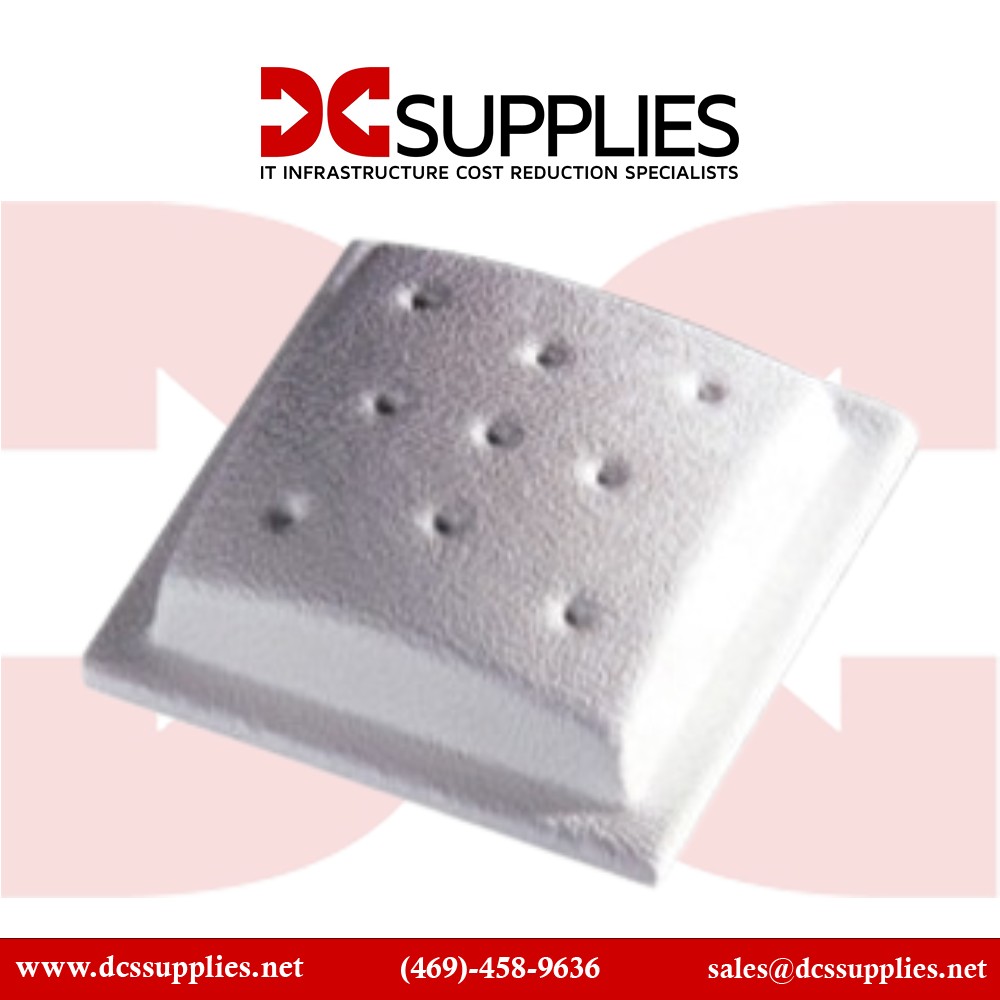

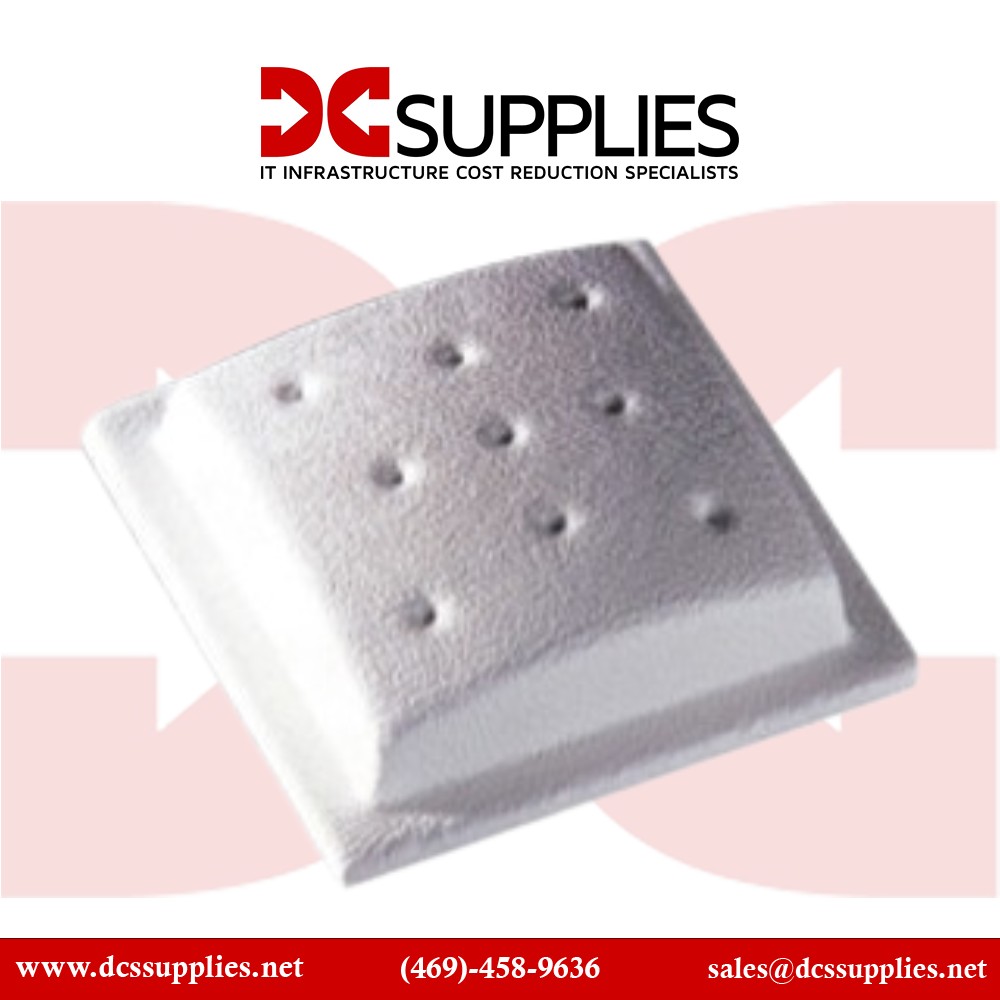

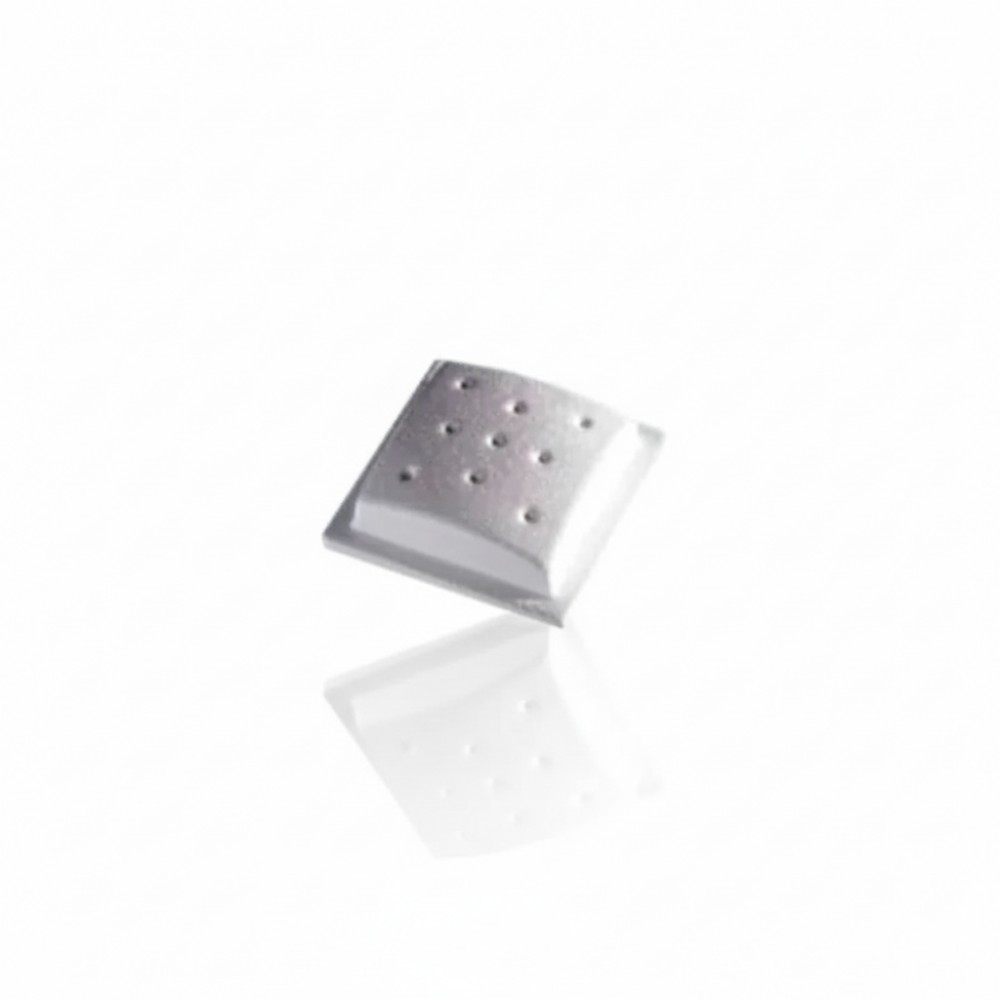

Aruba JW001A AP‑ANT‑13B 2.4/5 GHz 4 dBi/3 dBi Omni‑Directional MIMO Antenna

The HPE Aruba JW001A AP‑ANT‑13B is a compact, downtilt omni‑directional antenna designed to boost dual‑band coverage for Aruba access points. Ideal for enterprise, education, and hospitality settings, it enhances network reliability in conference rooms, classrooms, and cubicle zones.

Features

Designed for ceiling-mounted MIMO applications, the AP‑ANT‑13B provides smooth 360° horizontal coverage with moderate downtilt, ensuring seamless connectivity in high-density indoor spaces Pair it with Aruba AP‑124, AP‑314, AP‑324, or AP‑344 models to extend wireless reach and maintain balanced signal strength across both Wi‑Fi bands.

Advanced Options

Compact and unobtrusive, its white ABS housing fits neatly into drop ceilings. The RP-SMA connector works seamlessly with Aruba’s pigtail-equipped APs, streamlining installation and minimizing visual impact.

Product Key Features

    •  Dual‑band omni‑directional antenna: 2.4–2.5 GHz @ 4 dBi, 4.9–5.9 GHz @ 3 dBi

    •  Compact downtilt design for ceiling‑mount installations

    •  RP‑SMA connector compatible with Aruba AP series (AP‑124/314/324/344)

    •  Ceiling tile clip included; tool‑free mounting

    •  MIMO support—ideal for high‑density environments

    •  Durable ABS/PVC build with VSWR < 2.0, max input 2 W

Reliability & Performance

Built to support enterprise-class environments, the JW001A features a precision-engineered RP-SMA mounting and durable ABS/PVC shell suitable for indoor telecom use. It delivers stable performance—VSWR < 2.0:1, 50 Ω impedance—with a max input of 2 W, supporting Aruba’s dual-band MIMO architecture . Operating across –40 °C to +70 °C, it can handle HVAC and lighting fixture heat without performance degradation.

Key Features :

    • Dual‑band omni‑directional antenna (2.4 GHz/5 GHz)

    • Gain: 4 dBi at 2.4 GHz, 3 dBi at 5 GHz

    • RP‑SMA connector; MIMO‑ready

    • Downtilt configuration for ceiling deployment

    • Compact ABS/PVC enclosure, ceiling tile clip included

    • VSWR < 2.0:1; 50 Ω; 2 W max input power

    • Supports Aruba AP‑124/314/324/344 wireless access points

SpecificationDetails
Model Number JW001A (AP‑ANT‑13B)
Product Type Indoor Omni‑Directional MIMO Antenna
Frequency Range 2.4–2.5 GHz; 4.9–5.9 GHz
Gain 4 dBi (2.4 GHz); 3 dBi (5 GHz)
Beamwidth (Horizontal) 360°
Beamwidth (Vertical) ~50° @ 2.4 GHz; ~25° @ 5 GHz
Connector RP‑SMA Male
Impedance 50 Ω
VSWR < 2.0:1
Max Input Power 2 W
Dimensions (W×D×H) 55 × 55 × 16 mm (2.17″×2.17″×0.63″)
Housing Material ABS / PVC
Operating Temperature –40 °C to +70 °C
Mounting Ceiling tile clip (15/16″ T-bar) included
Compatible AP Models AP‑124, 314, 324, 344 (RP‑SMA pigtail)
