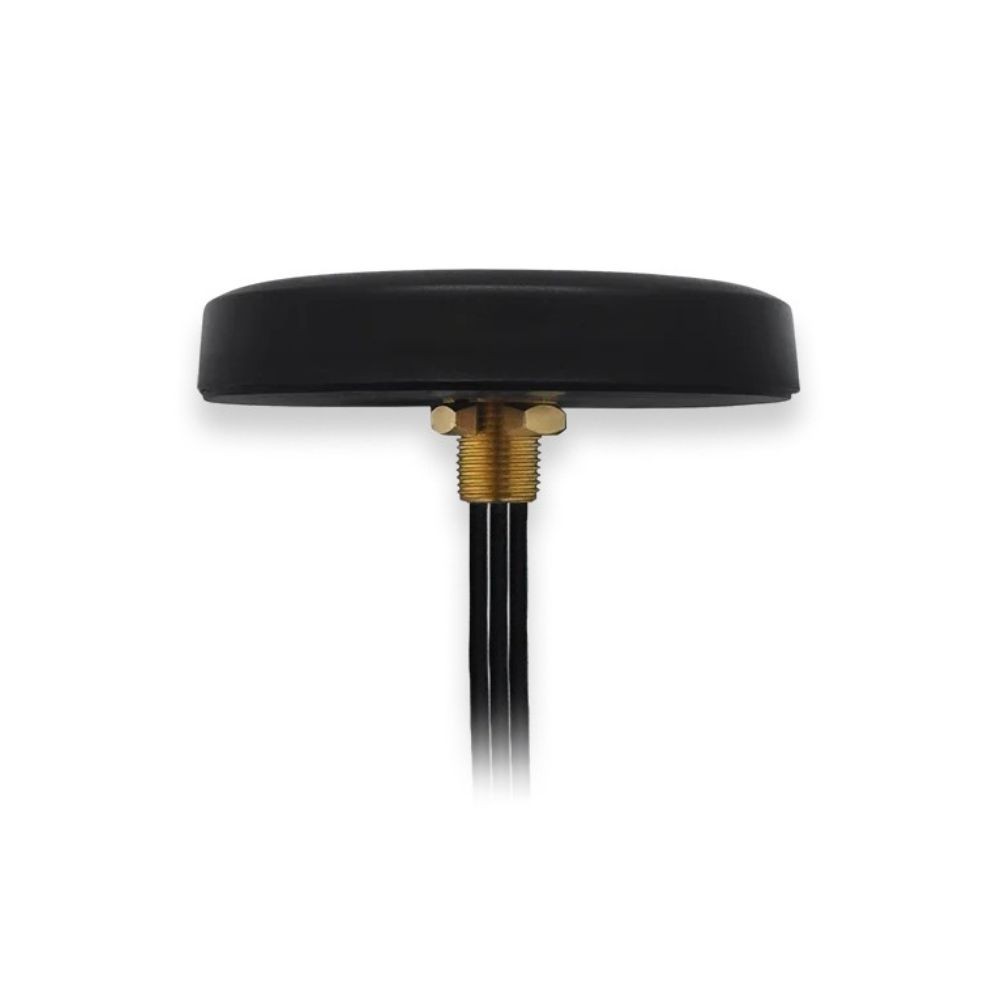

Teltonika PR1KCS28 Combo Roof Antenna View larger
Previous Next

Teltonika PR1KCS28 Combo Roof Antenna

PR1KCS28

New

Combo Mobile/GNSS/Wi‑Fi Antenna
×




Detailed Specifications

Teltonika PR1KCS28 Combo Roof Antenna

Overview

The Teltonika PR1KCS28 is a multi‑function rooftop antenna that combines mobile cellular, GNSS, and Wi‑Fi coverage into a single compact unit for engineers integrating external wireless reception on routers and gateways. It supports wide frequency bands across LTE, GNSS, and Wi‑Fi with omnidirectional patterns to enhance signal capture in outdoor, vehicular, and industrial environments. The antenna is designed for screw‑mount installation and rugged outdoor use with high ingress protection and long cable leads for flexible routing. It fits deployments where one antenna must serve multiple radio systems for connectivity and positioning.

Key Features

• Multi‑band antenna for LTE, GNSS, and Wi‑Fi
• Omnidirectional radiation patterns
• IP67 outdoor‑rated housing

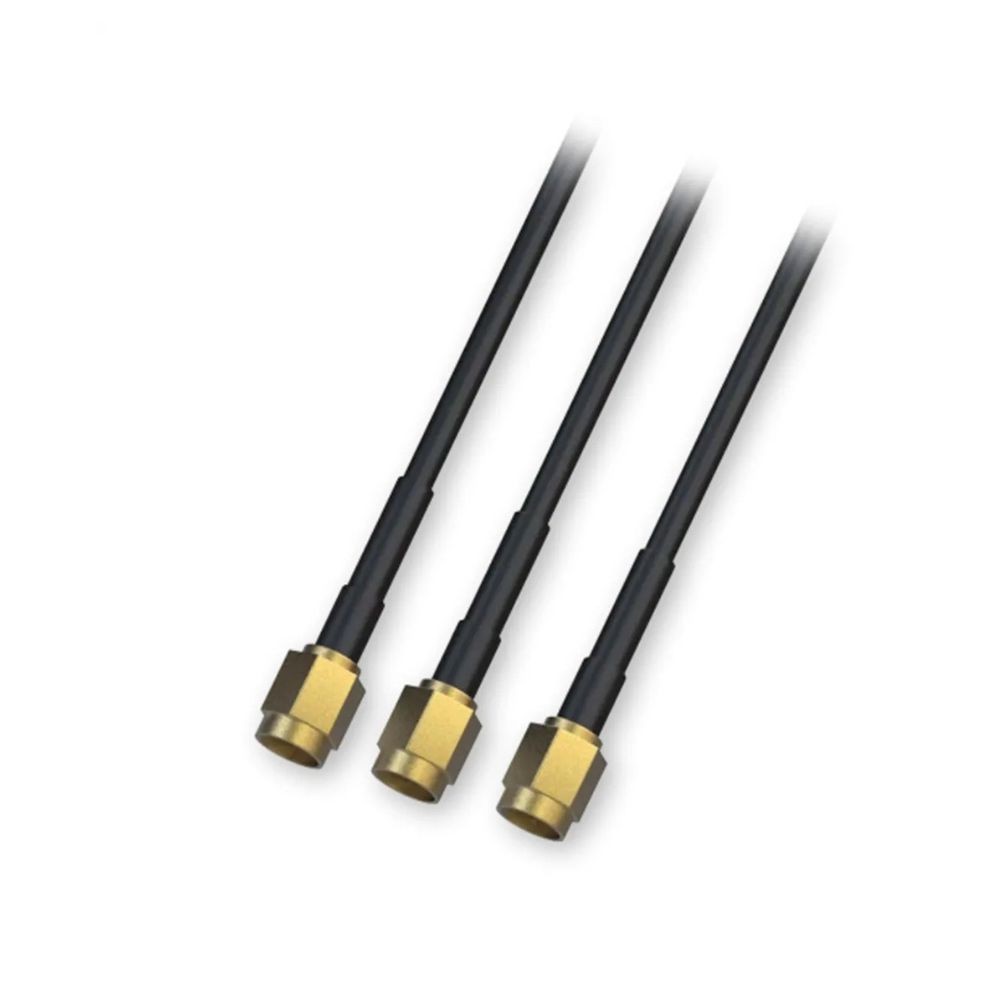

• Three 3 m RG174 cables

Technical Specifications

SpecificationDetails
Brand Teltonika
Part Number PR1KCS28
Product Type Combo Mobile/GNSS/Wi‑Fi Antenna
GNSS Frequency Range 1575–1610 MHz
GNSS Gain 28 dBi
GNSS Connector SMA Male
LTE Frequency Range 617–960, 1710–2690 MHz
LTE Gain 3.5 dBi
LTE Connector SMA Male
Wi‑Fi Frequency Range 2350–2500 MHz
Wi‑Fi Gain 2.5 dBi
Wi‑Fi Connector RP‑SMA Male
Impedance 50 Ω
Cable 3× RG174, 3000 mm
Mounting Screw mount
Protection Rating IP67 (housing)
Dimensions Ø 80.5 × 15.2 mm
Weight ~250 g (0.55 lbs)
Operating Temp. −40 °C to +85 °C
