Detailed Specifications

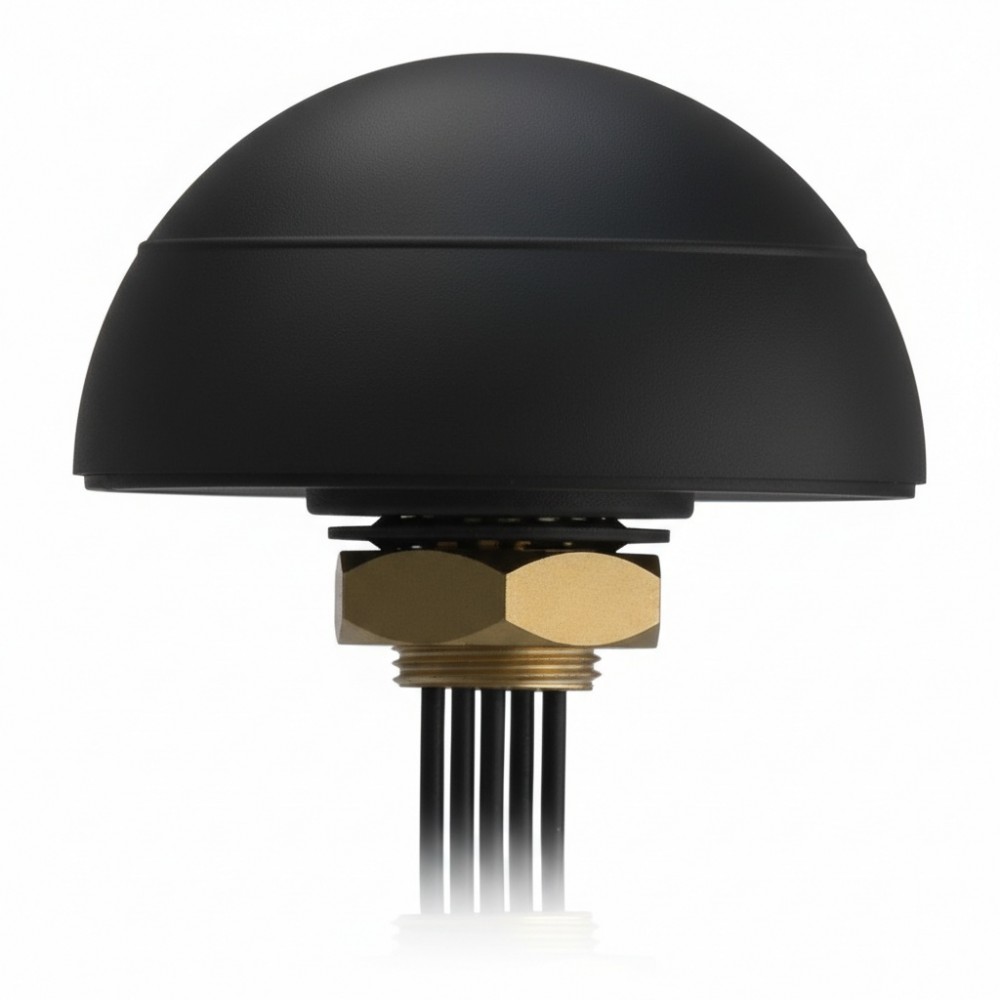

Teltonika PR1KCO28 5G LTE Outdoor MIMO Antenna
Overview
The Teltonika PR1KCO28 is an outdoor broadband MIMO antenna engineered for network engineers and system integrators who need enhanced cellular reception for 5G NR and LTE in fixed, remote, or mobile installations. It supports multiple cellular frequency bands across Sub-6 GHz and LTE ranges with multiple MIMO ports to improve signal strength and data throughput when paired with compatible routers or gateways. The rugged IP67-rated enclosure and adjustable mounting bracket make it suitable for rooftop, pole, or wall installations in industrial, transportation, or fixed wireless access scenarios.
Key Features
• 4× 5G/LTE MIMO broadband ports
• Wide cellular frequency coverage
• Adjustable pole/roof mount
• IP67 outdoor-rated housing
Technical Specifications
| Specification | Details |
|---|
| Brand | Teltonika |
| Part Number | PR1KCO28 |
| Product Type | Outdoor 5G/LTE MIMO Antenna |
| Frequency Range | 617-960 / 1710-2700 / 3300-4200 MHz |
| MIMO Ports | 4× SMA Male |
| Antenna Gain | 8 ± 1 dBi (typical) |
| Polarization | Dual-polarized |
| Impedance | 50 Ω |

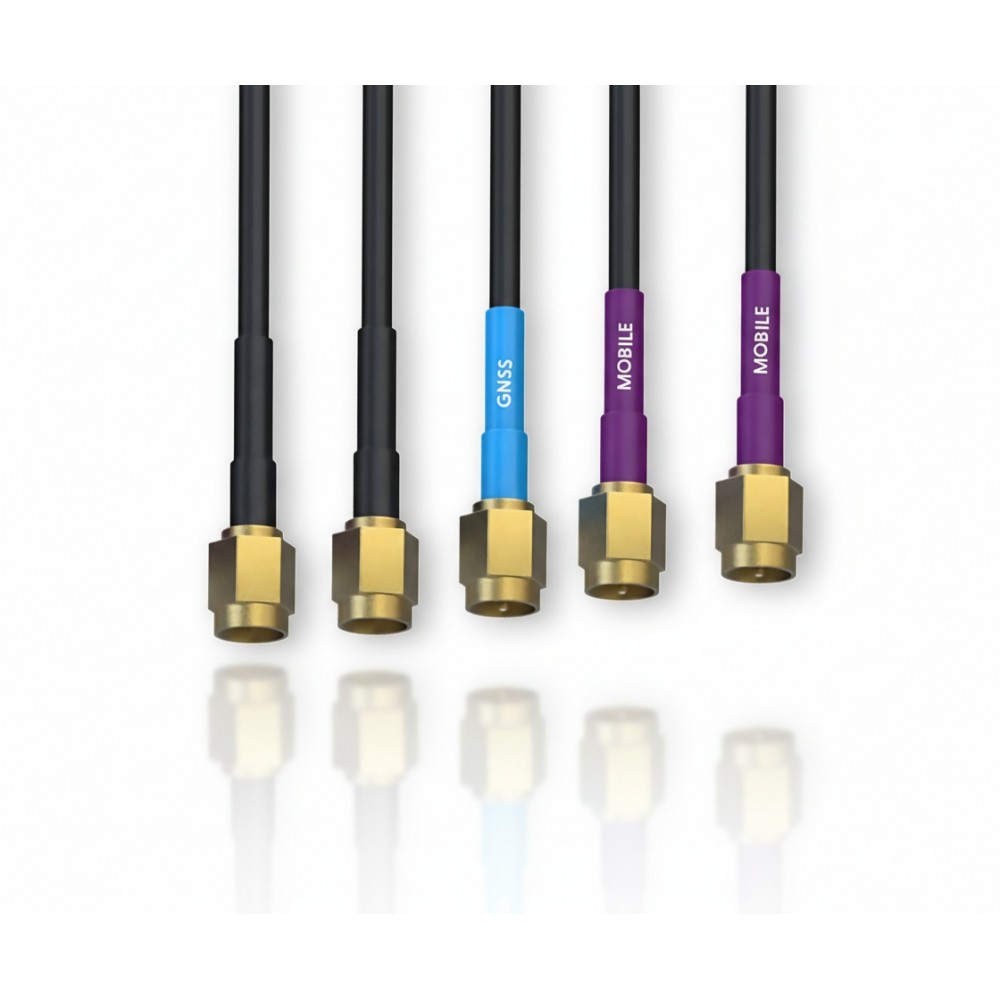

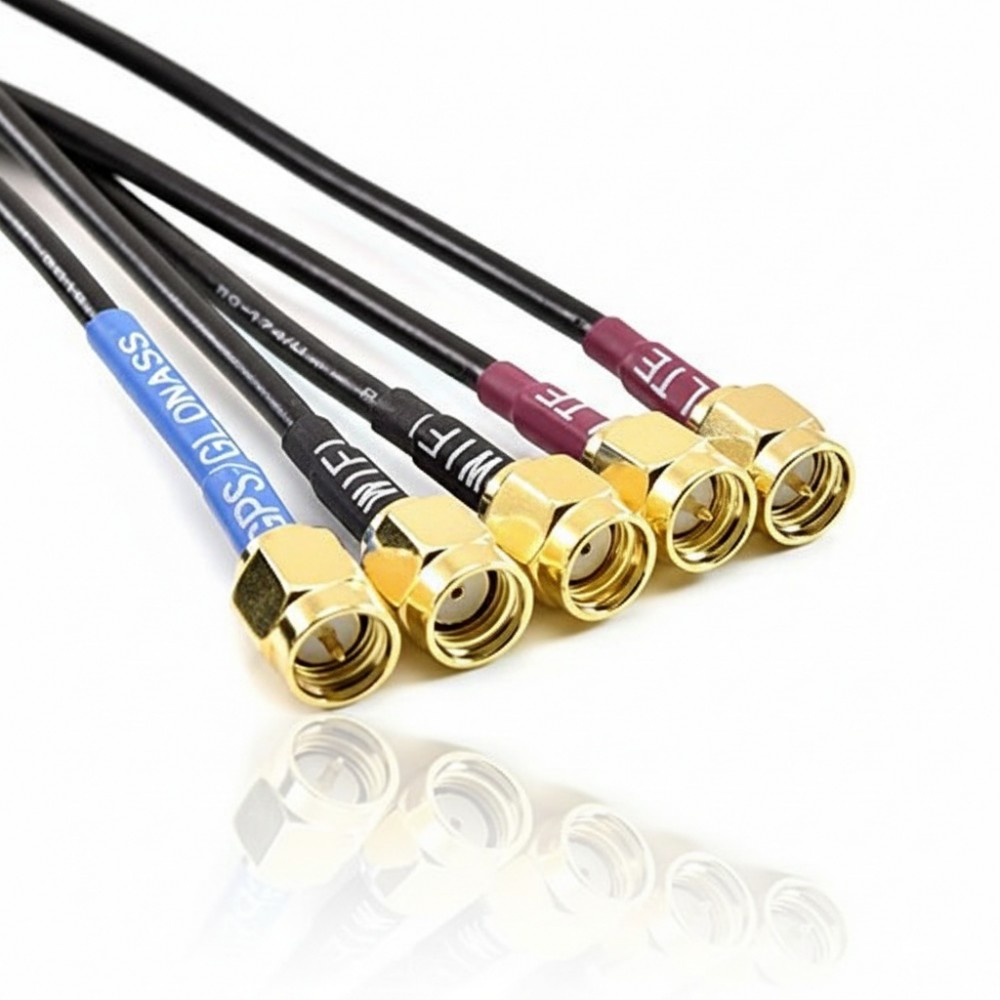

| Cable | 4× 3 m RG-174 |
| Mounting | Adjustable pole/roof bracket |
| Ingress Protection | IP67 |
| Operating Temp. | −40 °C to +85 °C |
| Dimensions | 280 × 190 × 35 mm (11.02 × 7.48 × 1.38 in) |
| Weight | 0.75 kg (1.65 lbs) |
