Detailed Specifications

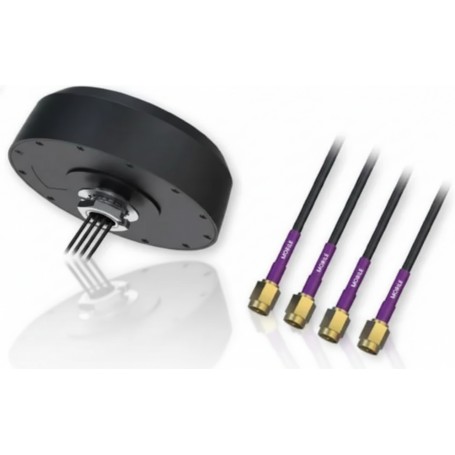

Teltonika PR1KCI49 5G Combo MIMO GNSS Antenna
Overview
The Teltonika PR1KCI49 is a multi-function outdoor roof antenna engineered for network engineers and integrators who need enhanced 5G/LTE cellular reception alongside GNSS positioning. It combines 4×4 MIMO cellular ports covering broad 5G NR and LTE bands with an integrated GNSS antenna in a single rugged enclosure, improving signal quality for routers, gateways, and mobile installations. The antenna fits fixed, vehicular, or rooftop mounts where wide-band cellular coverage is required. It is IP67/ IP69K-rated with mounting hardware and long lead cables for practical outdoor installations.
Key Features
• 4×4 MIMO 5G/LTE broadband coverage
• Integrated high-gain GNSS element
• IP67/ IP69K outdoor enclosure
• Long antenna cables included
Technical Specifications
| Specification | Details |
|---|
| Brand | Teltonika |
| Part Number | PR1KCI49 |
| Product Type | Outdoor 5G MIMO & GNSS Antenna |
| Cellular Frequency Range | 600-960, 1400-6000 MHz |
| Cellular Gain | Max 4.9 dBi |
| Cellular Polarization | Linear |
| GNSS Frequency Range | 1164-1189 & 1559-1606 MHz |
| GNSS Gain | 17 ± 2 dB |
| GNSS Polarization | RHCP |
| Impedance | 50 Ω |
| VSWR | ≤ 3.2 (cellular), < 2 (GNSS) |
| Connector Count | 4× SMA Male (cellular), 1× SMA Male (GNSS) |
| Cable | 4× ALS302 + 1× RG174, 3000 mm each |
| Mounting | Screw (M27 nut) |
| Ingress Protection | IP67 / IP69K (after installation) |
| Operating Temp. | −40 °C to +85 °C |
| Dimensions | Ø 167 × 57 mm |
| Weight | 780 g (1.72 lbs) |
