Detailed Specifications

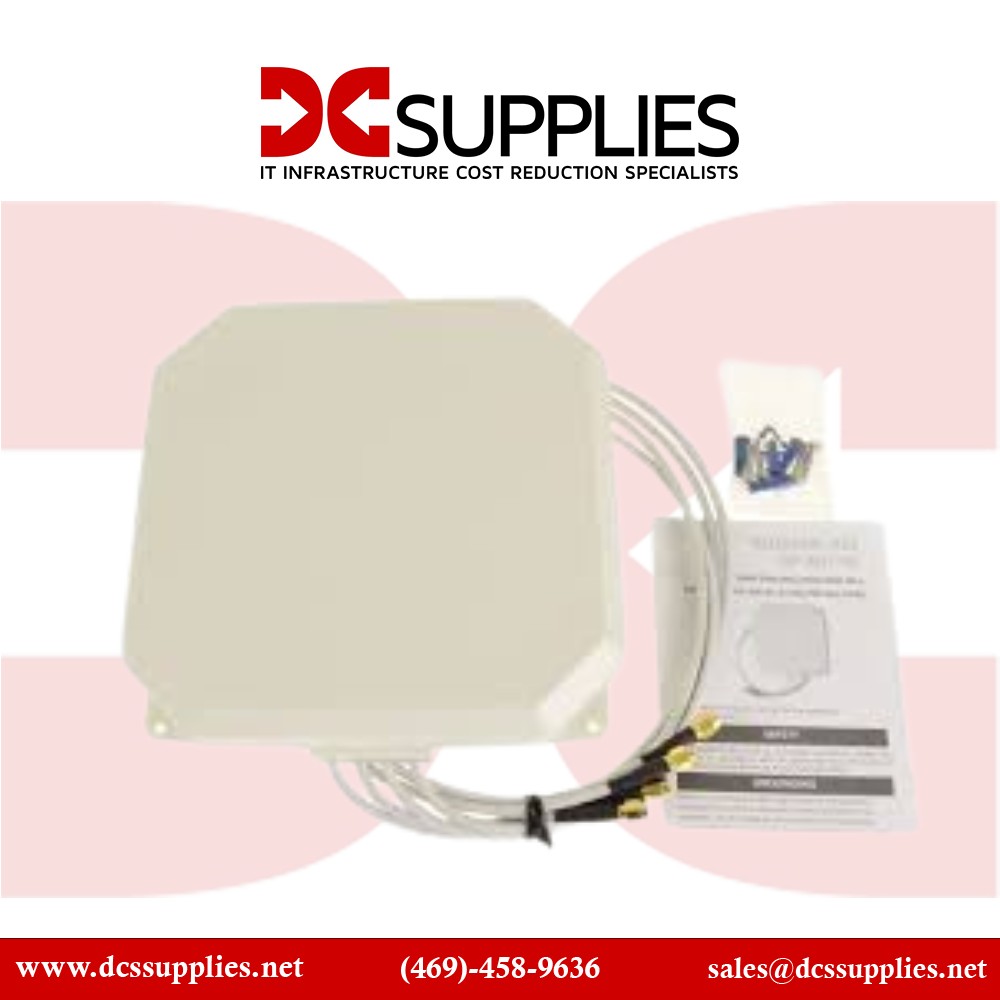

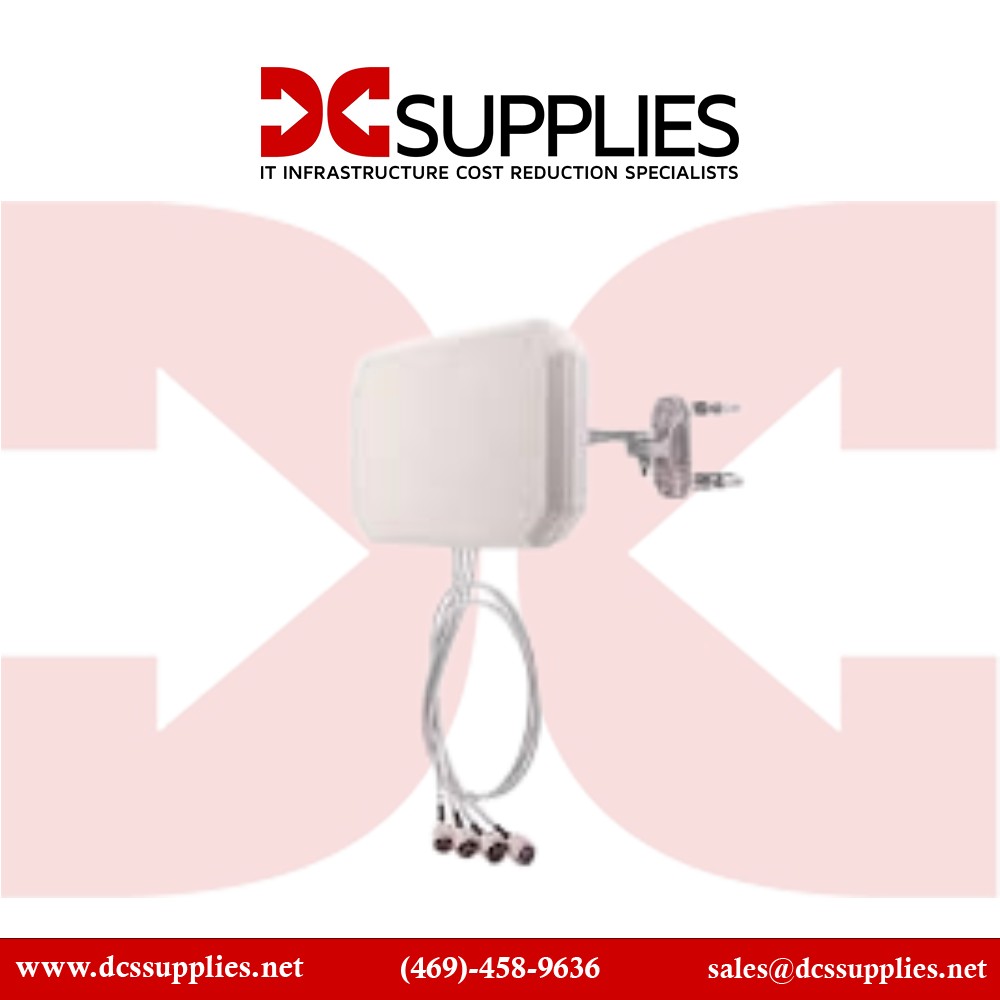

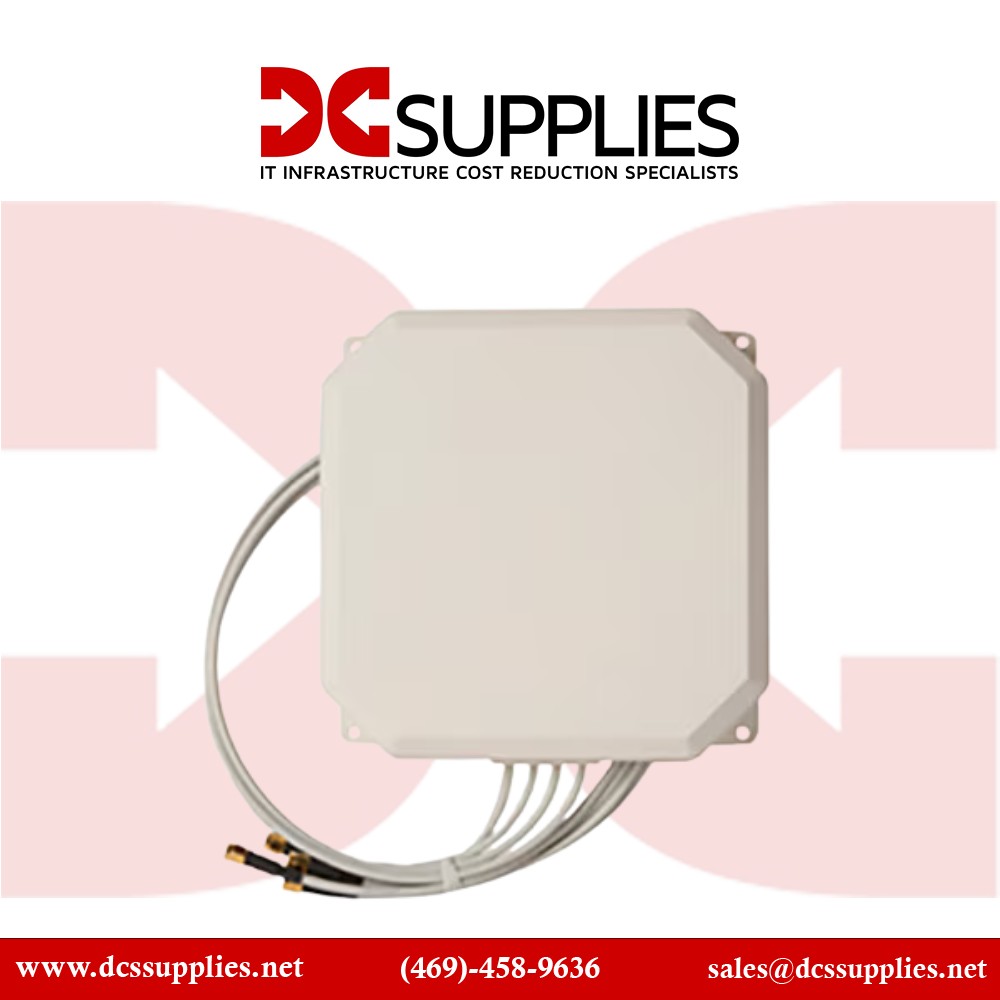

HPE S1F86A Aruba AP-ANT-325 2×2 Medium Gain Panel Antenna
Overview
The HPE S1F86A is a cabled, RP-SMA mounted directional panel antenna designed for Aruba access points that support external antennas. It covers the 2.4 GHz, 5 GHz, and 6 GHz Wi-Fi bands in a 2×2 MIMO configuration, making it suitable for deployments where focused, high-capacity signal propagation is needed. Built with medium gain, it provides a balance between coverage distance and beamwidth. The antenna is housed in a rugged IP67-rated radome and comes with 75 cm plenum-rated cables for reliable indoor or semi-outdoor use.
Key Features
Tri-band support: 2.4 GHz, 5 GHz, 6 GHz
2×2 MIMO, medium gain design
Directional panel form for focused coverage
Comes with 75 cm plenum-rated RP-SMA cables
IP67-rated rugged housing for harsh environments
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE / Aruba |
| Part Number | S1F86A |
| Product Type | Directional panel antenna |
| Frequency Bands | 2.4 GHz, 5 GHz, 6 GHz |
| MIMO Configuration | 2×2 |
| Gain (Peak) | 6.1 dBi @ 2.4 / 5 GHz; 5.4 dBi @ 6 GHz |
| Beamwidth (3 dB) | ~90° horizontal & vertical |
| Connectors | 2 × RP-SMA male, with 75 cm cables |
| Max Input Power | 33 dBm / ~2 W per port |
| Impedance | 50 Ω |
| Radome Material | ASA (UV-resistant) |
| Protection | IP67 rated (dust / water) |
| Dimensions (H × W × D) | 216 mm × 41 mm × 168 mm |
| Weight | 544.3 g |
| Mounting Options | Wall or pole mount (mount hardware required) |
