Accortec MFS1S00-H003E-ACC 200GBase-AOC QSFP56 Infiniband HDR Active Optical Cable, 3m

Accortec

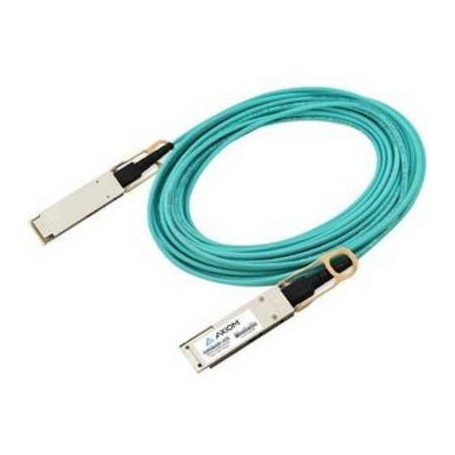

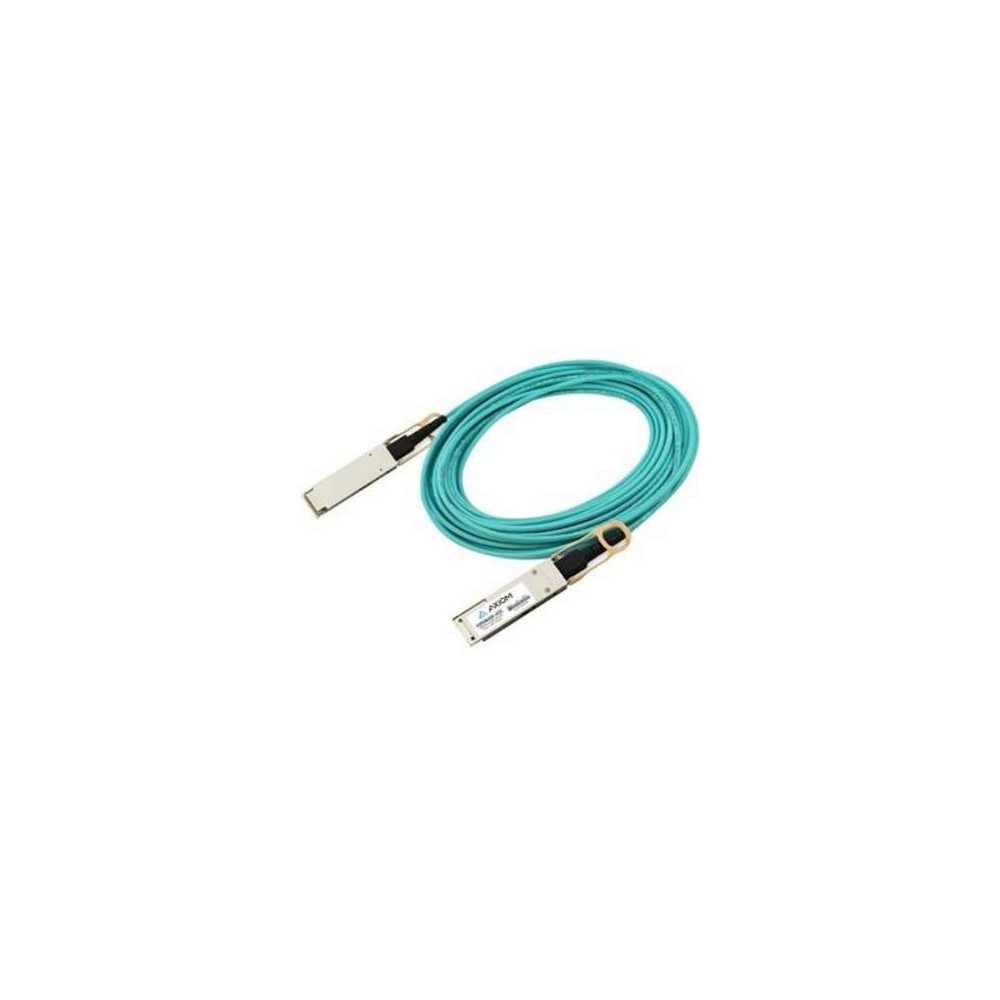

MFS1S00-H003E-ACC 200GBASE-AOC QSFP56 InfiniBand HDR Active Optical Cable, 3 m

The AccortecMFS1S00-H003E-ACC is a TAA-compliant, Mellanox-compatible 200GBASE QSFP56 Active Optical Cable (AOC) designed specifically for InfiniBand HDR and 200 Gbps Ethernet systems over a 3 meter (9.84 ft) reach. Engineered to eliminate separate transceiver modules, this plug-and-play solution simplifies deployment while delivering consistent high-density, low-latency connectivity in modern data center and HPC environments

Features

Featuring a sturdy LSZH (Low Smoke Zero Halogen) jacket, this AOC supports hot-swappable installation and is optimized for safe operations in enclosed spaces. Each end integrates four multimode fiber lanes using VCSEL transmitters (50 Gb/s per lane) for total 200 Gbps throughput, all while consuming under 4.5 W typical per connector.

Advanced Options

Built upon validated MFS1S00-HxxxE architecture, the AccortecMFS1S00-H003E-ACC offers programmable retiming per lane, BER better than 1E-15, and compatibility with SFF-8665 QSFP56 MSA interfaces. Its compact 3 m cable is ideal for rack-to-rack or adjacent-rack links, balancing flexibility, airflow, and reach. Designed to operate in temperatures from 0 °C to 70 °C with robust EMI immunity, it is a dependable option for sustained 24/7 infrastructure operations

Product Key Features

1. 200 Gbps QSFP56 AOC built for InfiniBand HDR and 200G Ethernet

2. 3 meter (9.84 ft) reach perfect for short-range interconnects

3. Mellanox-compatible and TAA-compliant for government/enterprise use

4. Plug-and-play, hot-swappable SFF-8665 QSFP56 connectors

5. LSZH jacket and sub-4.5 W power consumption per end

---

Reliability & Performance

AccortecMFS1S00-H003E-ACC delivers enterprise-grade reliability, combining high-speed VCSEL optics with rugged LSZH fiber cabling to ensure minimal latency and maximum signal fidelity. The cable supports programmable lane retiming and stringent BER performance when used in validated Mellanox environments. Built to withstand dense rack environments, its low thermal output and compact footprint help maintain airflow and minimize rack congestion×ideal for mission-critical HPC, AI/ML, and cloud infrastructure networks

Key Features

• 200 Gbps throughput via QSFP56 to QSFP56 AOC

• 3 meter cable length (≈9.84 ft)

• Mellanox-compatible, TAA-compliant

• Hot-swappable plug-and-play design

• LSZH fiber jacket, low-power operation

Specifications :

Product Specifications

Specification	Detail
Model Number	MFS1S00-H003E-ACC
Type	Active Optical Cable (AOC)
Compatibility	Mellanox, InfiniBand HDR, 200G Ethernet
Data Rate	200 Gbps (4×50 Gb/s PAM4)
Connector Type	QSFP56 to QSFP56 (SFF-8665 compliant)
Cable Length	3 m (9.84 ft)
Fiber Type	Multimode (MMF), VCSEL-based
Power Consumption	~4.35 W typical per end
Jacket Material	LSZH
Operating Temp	0°C to 70°C
Bit Error Rate (BER)	<1E-15
Bend Radius	~30 mm minimum
Hot Swappable	Yes
Compliance	TAA compliant, RoHS
