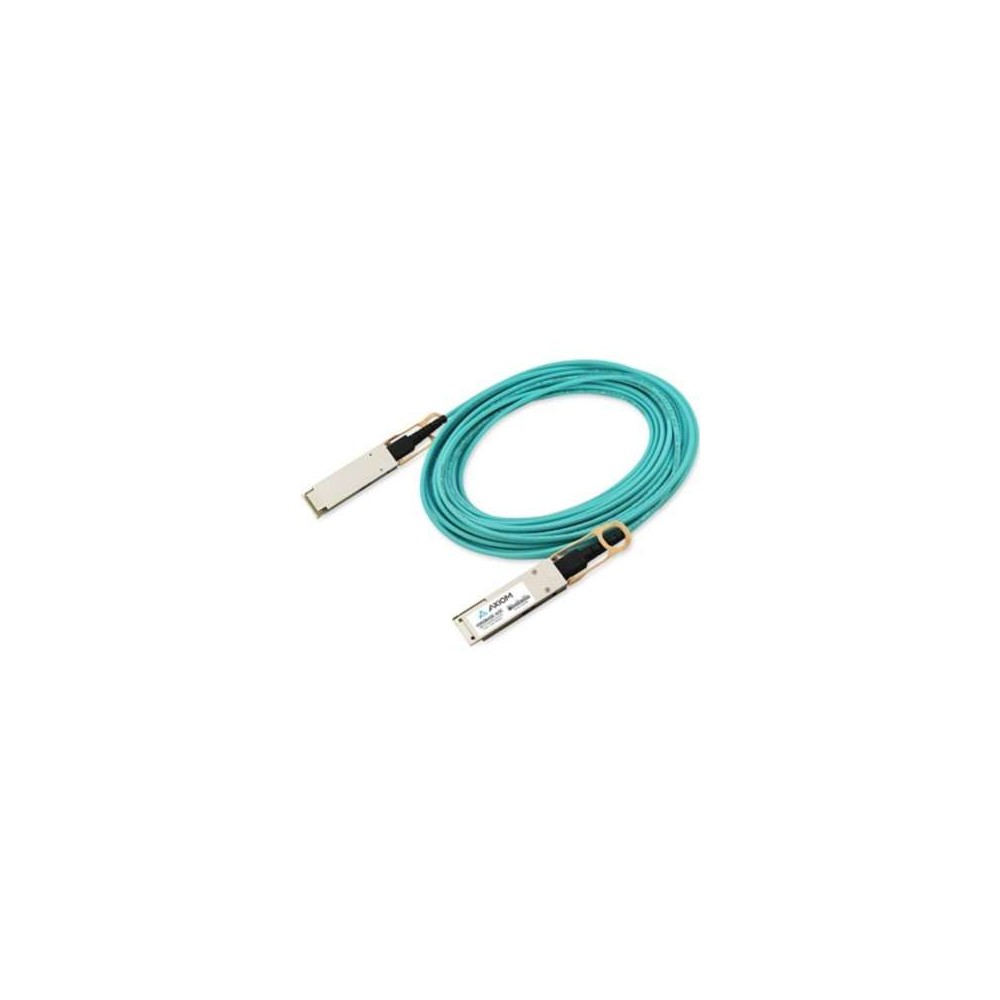

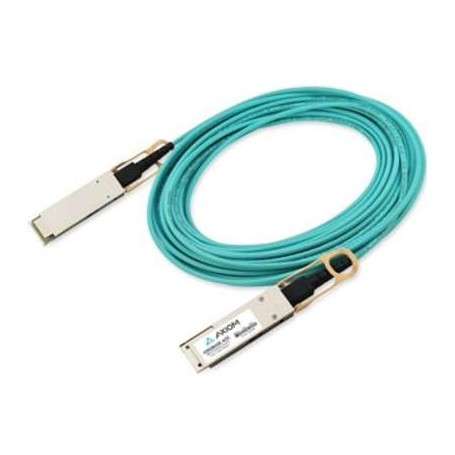

Accortec MFS1S00-H015V-ACC 200GBase-AOC QSFP56 Infiniband HDR Active Optical Cable, 15m View larger

Accortec MFS1S00-H015V-ACC 200GBase-AOC QSFP56 Infiniband HDR Active Optical Cable, 15m

New

In Stock

Accortec MFS1S00-H015V-ACC 200GBase-AOC QSFP56 Infiniband...

×




$1,299.00

  • New

Detailed Specifications

Accortec

MFS1S00‑H015V‑ACC 200 GBASE‑AOC QSFP56 Infiniband HDR Active Optical Cable – 15 m

The Accortec MFS1S00‑H015V‑ACC is a 15‑meter QSFP56 Active Optical Cable (AOC) engineered to deliver ultra‑high-speed 200 GBASE connectivity for InfiniBand HDR and 200 GbE networks. Operating over OM3 multimode fiber at 850 nm, this cable ensures low latency and robust data integrity across rack‑to‑rack and rack‑row link deployments up to 15 m. It is fully MSA-compliant, carrying programmable QSFP56 connectors and per-lane retiming options for error-free PAM4/50 Gb/s signaling

Features

Purpose-built for high-performance computing, data center interconnects, and enterprise backbone links, this AOC provides a plug‑and‑play solution with hot‑swappable QSFP56 terminations. The VCSEL‑based transceiver ends and LSZH-rated OM3 fiber ensure a safe, high-density installation. With power consumption under 5 W per end and support for up to 100 m over OM4/OM5 fiber, it meets the rigorous needs of modern low-latency fabrics without compromising efficiency or compatibility

Advanced Options

Accortec TAA-compliant version aligns with U.S. federal procurement requirements and supports NVIDIA/Mellanox HDR switches, NICs, and other compliant OEM gear. Ruggedized and performance-tested for InfiniBand-certified environments, it ensures fully reliable deployment in critical infrastructure

Product Key Features

  • High-speed 200 GBASE-AOC using QSFP56 connectors

  • 15 m OM3 multimode fiber with LSZH jacket for safe installations

  • InfiniBand HDR / 200 GbE support with per-lane retiming

  • VCSEL‑based optics with select lane timing control

  • TAA-compliant and MSA‑certified for enterprise deployment

Reliability & Performance

Designed for continuous, mission-critical Data Center and HPC networks, the Accortec MFS1S00‑H015V‑ACC offers exceptional signal integrity and low error rates (BER <1e‑15) over the full rated length. Its hot-pluggable QSFP56 terminations support redundant fabrics without downtime, while low power consumption reduces heat load in dense configurations. Rigorous factory testing ensures interoperability with NVIDIA/Mellanox HDR NICs and switches under high-throughput conditions

Key Features (Bullet List)

  • 200 Gbps Active Optical Cable (QSFP56 AOC)

  • 15 m length for rack-to-rack / row-level connectivity

  • OM3 multimode fiber with LSZH jacket

  • Supports InfiniBand HDR and 200 GbE networks

  • Per-lane DSP/PAM4 retiming capability

  • Low power consumption (<5 W per end)

  • Hot-swappable, MSA-compliant form factor

  • TAA‑compliant for government procurement

  • Fully tested for compatibility with Mellanox/NVIDIA systems

  • Lifetime warranty and support available

Specifications :

Product Specifications
SpecificationDetails
Model Number MFS1S00‑H015V‑ACC
Cable Type QSFP56 Active Optical Cable (AOC)
Length 15 m (≈49.2 ft)
Data Rate 200 Gbps (HDR InfiniBand & 200 GbE compatible)
Fiber Type OM3 Multimode with LSZH jacket
Optics Wavelength 850 nm VCSEL
Connector Type QSFP56 per SFF‑8665
Retiming Per-lane DSP PAM4 up to 50 Gb/s
Power Consumption <5 W per end
Compliance MSA, TAA, RoHS
Operating Temp Range 0 °C to 70 °C
Application Data centers, HPC clusters, InfiniBand fabrics
