Detailed Specifications

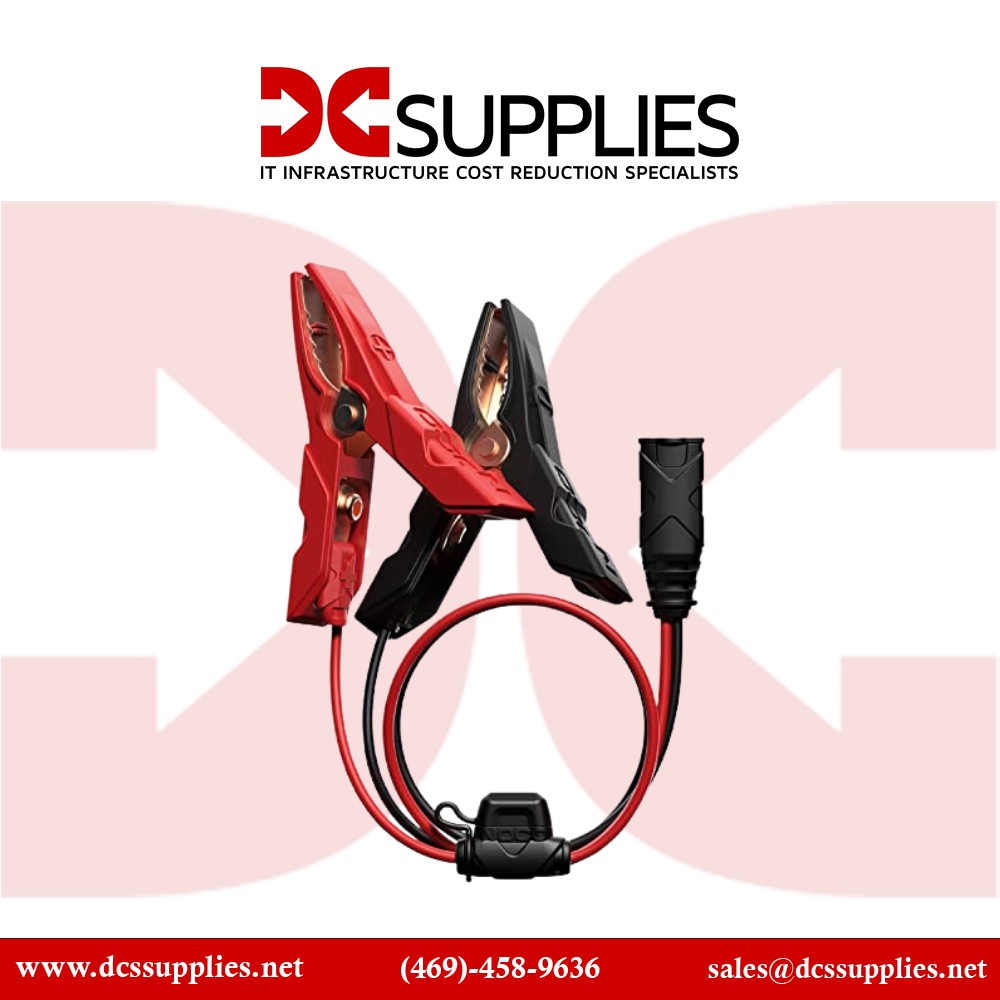

X-Connect XL Battery Clamps w/ M10 Eyelets - Genius Series Accessory
The NOCO GC014 provides versatile, high-current battery connection solutions with dual-mode functionality×snap the clamps on for one-time use or hard-mount the eyelets for fast Once set, any compatible Genius charger×like GENIUS5, GENIUS10, or GENIUS2X4×can plug in instantly. This flexible design lets users blend portability with long-term accessibility.
Features
tool-free charging. Designed for vehicles, marine, powersports, and fleet applications×this accessory helps you maintain battery health with convenience and protection.
Advanced Options
With its needle-nose clamps and generous clamp span, the GC014 easily accommodates various terminal geometries. Remove the clamps to leave the M10 copper eyelets on the battery for permanent X-Connect ports.
Product Key Features
Dual-purpose clamps with snap-on/out M10 eyelets for temporary or permanent battery connections
Built-in 20 A mini-blade fuse for electrical protection
Needle-nose clamps with 1.5″ span for secure fit on various terminal sizes
Rugged, watertight X-Connect plug housing for outdoor durability
Compatible with Genius series and legacy G-series smart chargers
Quick-release design enables fast swapping of chargers or accessories
Reliability & Performance
Built with 14 AWG wiring and a rugged 20 A fuse, the GC014 delivers safe high-current charging. The watertight housing resists oil, dust, moisture, and UV, making it ideal for harsh conditions. The quick-release mechanism secures connections firmly while allowing easy swapping in fleet or mobile setups.
Key Features (Bullet List)
Dual-mode clamps and M10 eyelets
20 A inline fuse for overload protection
14 AWG copper wiring & 1.5″ clamp span
Watertight X-Connect plug for external durability
Compatible with Genius and legacy G-series chargers
Quick-release snap connection design
| Specification | Details |
|---|
| Model Number | GC014 |
| Product Type | X-Connect XL Battery Clamps w/ M10 Eyelets |
| Compatibility | Genius1, 2, 5, 10, 2X2, 2X4; G750, G1100, G3500, G7200, G4 |
| Eyelet Size | M10 (10 mm) copper-plated |
| Fuse Rating | 20 A mini-blade |
| Wire Gauge | 14 AWG copper |
| Clamp Span | 1.5″ |
| Wire Length | 21″; overall 25″ (63.5 cm) |
| Connector | X-Connect female plug |
| Housing | Watertight, oil/gas/dust/UV-resistant |
| Weight | ~9.1 oz (258 g) |
| Country of Origin | China |
