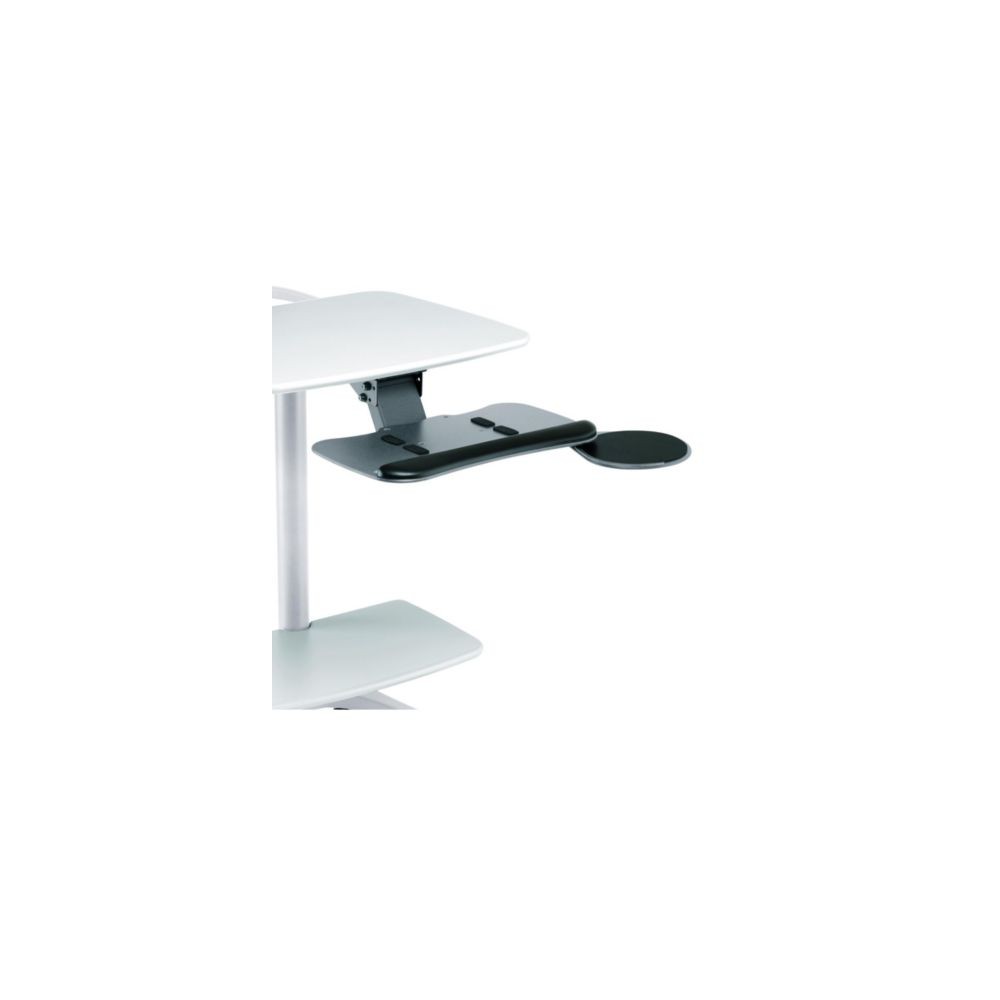

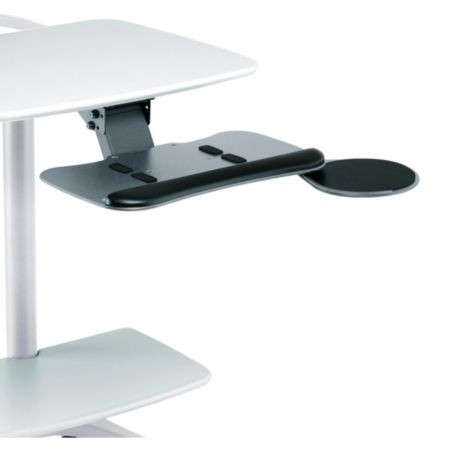

The Ergotron 169BK Compact Keyboard and Mouse Caddy is an adjustable keyboard platform designed for compatible mobile carts and workstation surfaces. It combines a keyboard tray, integrated foam wrist rest, and pivoting mouse extension to create a flexible workspace for everyday computer use.
Key Features
- Adjustable working height: Positions the keyboard from level with the worksurface to 6 inches (15.2 cm) below it.
- Pivoting mouse extension: Provides a dedicated mouse surface that swings outward when needed.
- Integrated wrist rest: Includes a foam wrist rest to support comfortable keyboard positioning.
- Tilt and swivel adjustment: Supports a 30-degree total tilt range and 360-degree pan for flexible positioning.
- Retractable design: Moves along an 11-inch (27.9 cm) track to bring the keyboard into position or retract it when not in use.
Technical Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 169BK |
|---|
| Product Type | Keyboard and mouse caddy |
|---|
| Product Name | Compact Keyboard and Mouse Caddy |
|---|
| Color | Black |
|---|
| Keyboard Tray Dimensions | 19.5 x 8 inches (49.5 x 20.3 cm) |
|---|
| Mouse Extension Dimensions | 8 x 9 inches (20.3 x 22.9 cm) |
|---|
| Height Adjustment | From worksurface level to 6 inches (15.2 cm) below |
|---|
| Tilt Range | 20 degrees backward and 10 degrees forward |
|---|
| Pan Range | 360 degrees |
|---|
| Track Length | 11 inches (27.9 cm) |
|---|
| Maximum Load Capacity | 10 lb (4.5 kg) |
|---|
| Material | Steel and phenolic components with integrated foam wrist rest |
|---|
| Compliance | Trade Agreements Act (TAA) compliant |
|---|
| Warranty | Limited lifetime warranty, subject to applicable terms |
|---|
| UPC | 766212214368 |
|---|
Installation and Compatibility
The Ergotron 169BK is designed to attach beneath a compatible wood shelf or workstation surface. Installation requires approximately 11 inches (27.9 cm) of mounting depth. The tray extends approximately 4 inches (10.2 cm) beyond the front of the worksurface when retracted.
Mounting hardware is included. Some installations require drilling, so check the surface construction and mounting instructions before installation. This caddy is not compatible with the Zido Adjustable-Height Cart 22 or Zido cart packages that use that base configuration.
Applications
This compact keyboard and mouse caddy is suitable for compatible computer carts, mobile workstations, and desk-based computing environments. Its adjustable height, tilt, and pivoting mouse surface provide flexibility for different workspace layouts.
DC Supplies Product Note
DC Supplies recommends confirming the mounting surface dimensions and compatibility with the intended workstation before ordering. Keep the total supported load within 10 lb (4.5 kg) and follow the manufacturer's installation instructions.
Frequently Asked Questions
1. What is the Ergotron 169BK?
It is a compact keyboard and mouse caddy with an adjustable keyboard platform, foam wrist rest, and pivoting mouse extension.
2. How far can the keyboard tray adjust vertically?
The tray adjusts from level with the worksurface to 6 inches (15.2 cm) below it.
3. Can the mouse extension pivot out of the way?
Yes. The mouse extension swings outward for use and can be moved out of the way when not needed.
4. What is the maximum supported load?
The maximum load capacity is 10 lb (4.5 kg), including the equipment supported by the caddy.
5. What installation space is required?
The installation requires approximately 11 inches (27.9 cm) of mounting depth beneath the worksurface.
6. Is the caddy compatible with every Ergotron cart?
No. Compatibility depends on the cart and mounting configuration. It is specifically not compatible with the Zido Adjustable-Height Cart 22 or packages based on that cart.
