Detailed Specifications

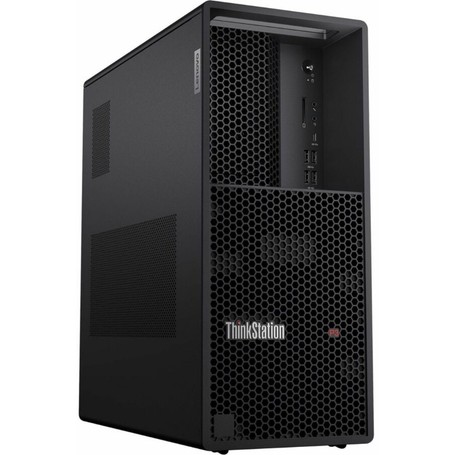

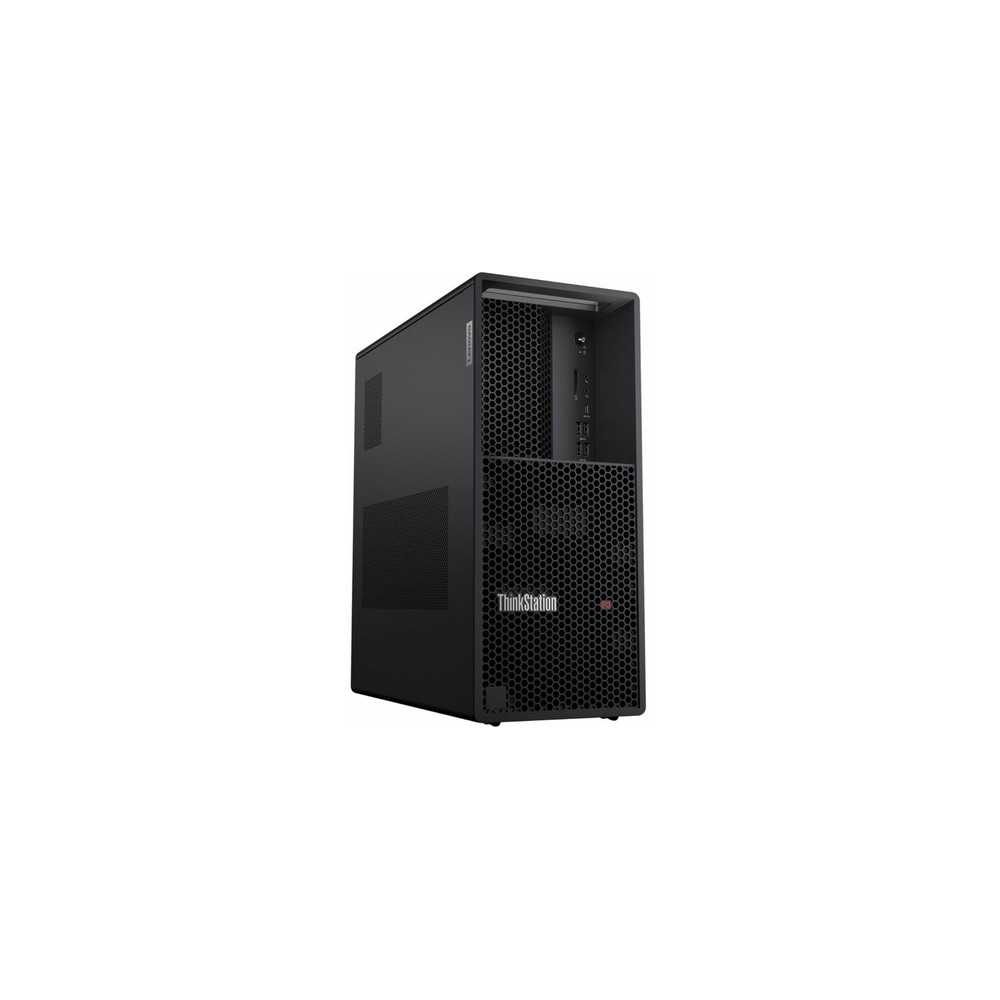

Lenovo 30HT007WUS ThinkStation P5 Tower Workstation
Overview
The Lenovo 30HT007WUS (ThinkStation P5) is a mission-critical desktop workstation engineered for heavy computational workloads, including complex BIM modeling, 8K video editing, and AI training. Developed in collaboration with Aston Martin, the chassis features advanced "hexcells" airflow technology to maintain peak performance during 24/7 duty cycles. It is the primary choice for research institutions and top-tier architecture firms requiring massive memory throughput and GPU compute density.
Technical capabilities are defined by the Intel Xeon W5-2445 processor and the NVIDIA RTX 5000 Ada Generation graphics card with 32GB of dedicated ECC VRAM. This configuration is equipped with 128GB of DDR5-4800MHz ECC memory, providing the error-correcting stability necessary for long-duration simulations and rendering. The system is built on a tool-less, modular architecture, allowing for rapid internal upgrades and maintenance.
Deployment is targeted at high-end professional studios and data centers where desktop-to-rack versatility is needed. The ThinkStation P5 is ISV-certified for all major engineering and creative software suites. This system is not intended for standard office productivity; its high-wattage 1000W power supply and specialized Xeon architecture are specifically tuned for multi-threaded technical applications where failure is not an option.
Key Features
Intel Xeon W5-2445 processor with 12 cores for workstation stability
NVIDIA RTX 5000 Ada 32GB GDDR6 for elite-tier rendering and AI
128GB DDR5 ECC memory prevents data corruption in critical tasks
2TB PCIe Gen4 NVMe performance SSD for massive file handling
1000W 92% efficient Platinum power supply supports dual-GPU expansion
Specifications
| Feature | Detail |
| Brand | Lenovo |
| Part Number | 30HT007WUS |
| Product Type | Tower Workstation |
| Processor | Intel Xeon W5-2445 (12-Core, up to 4.60 GHz) |
| Chipset | Intel W790 |
| Memory | 128GB (4x32GB) DDR5-4800MHz ECC (Up to 512GB) |
| Graphics | NVIDIA RTX 5000 Ada Generation (32GB GDDR6) |
| Storage | 2TB SSD M.2 2280 PCIe 4.0x4 NVMe Opal |
| Front Ports | 2x USB-C 3.2 Gen 2, 2x USB 3.2 Gen 2 |
| Rear Ports | 1x USB-C 3.2 Gen 2x2, 2x USB 2.0, 3x USB 3.2 Gen 2, 1x RJ45 (GbE) |
| Expansion Slots | 2x PCIe 5.0 x16, 1x PCIe 4.0 x16, 3x PCIe 4.0 x4 |
| Power Supply | 1000W Fixed (92% efficiency, Platinum) |
| Operating System | Windows 11 Pro for Workstations |
