Detailed Specifications

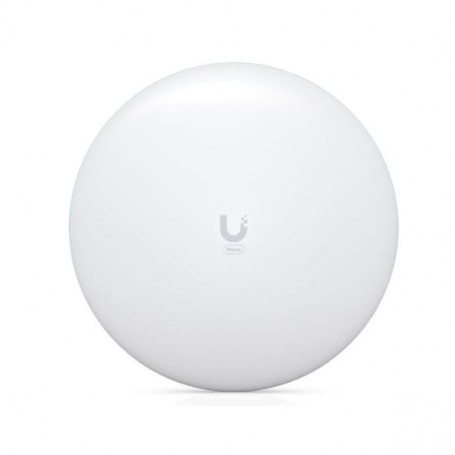

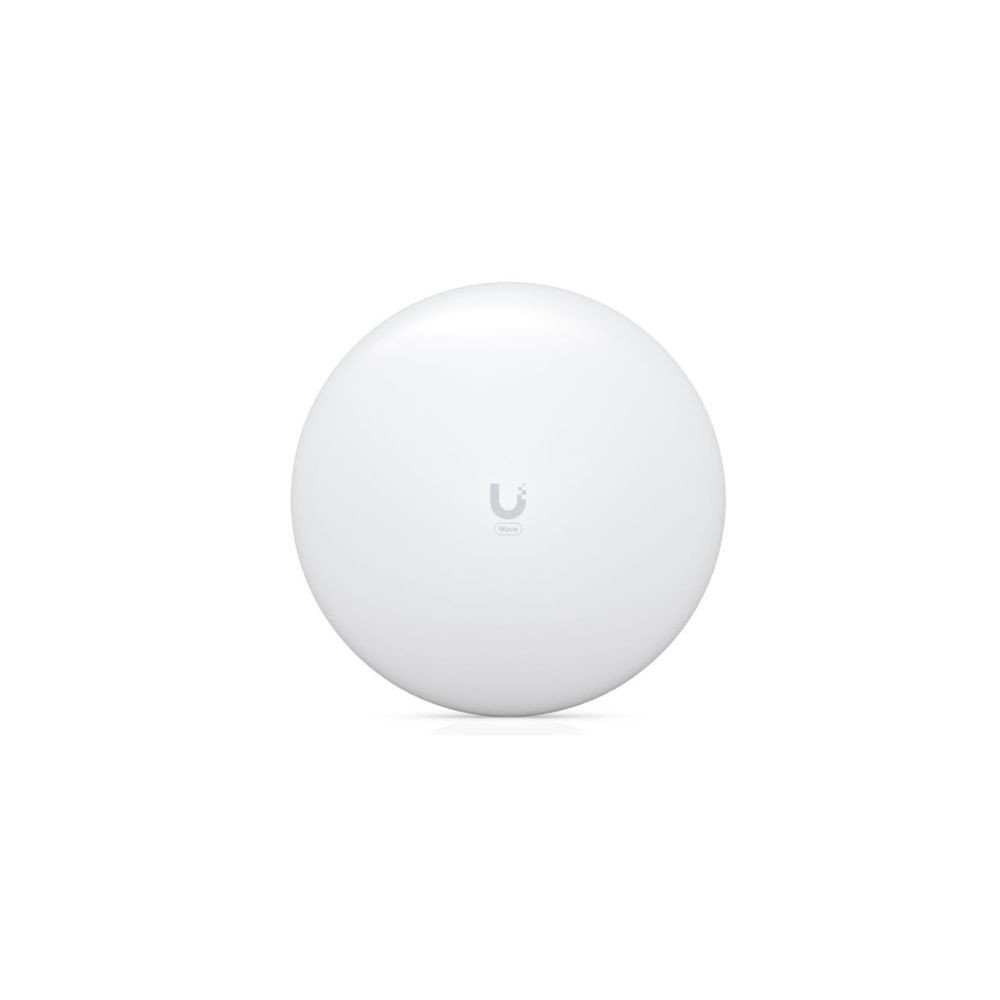

Ubiquiti Wave-LR-US Long-Range 60 GHz PtP Radio
Overview
The Ubiquiti Wave-LR-US is a long-range millimeter-wave Point-to-Point (PtP) wireless radio operating in the 60 GHz band. It provides high-capacity, low-latency links between locations where fiber or wired backhaul is impractical, while including a 5 GHz backup radio for resilience in adverse conditions. The unit uses a single Gigabit Ethernet PoE interface for data and power, and its weather-resistant IPX6 housing supports outdoor deployments on towers and rooftops. The Wave-LR is suited for campus backhaul, last-mile links, and high-throughput wireless bridges with clear line of sight.
Key Features
• 60 GHz long-range PtP link
• 5 GHz backup radio
• Gigabit Ethernet PoE port
• IPX6 weather-resistant design
Technical Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number | Wave-LR-US |
| Product Type | 60 GHz PtP Wireless Unit |
| Wireless Bands | 60 GHz primary, 5 GHz backup |
| Max Throughput | Up to ~2 Gb/s (60 GHz) |
| Backup 5 GHz Link | 802.11ac |
| Ethernet Ports | (1) 1 GbE RJ45 PoE |
| Power Method | Passive PoE 44-54 V DC |
| Power Consumption | ~12 W |
| Enclosure Rating | IPX6 |
| Mounting | Pole/tower mount |
| Operating Temp | −40 °C to 60 °C |
| Dimensions | ~200 × 200 × 70 mm |
| Weight | ~800 g |
