Detailed Specifications

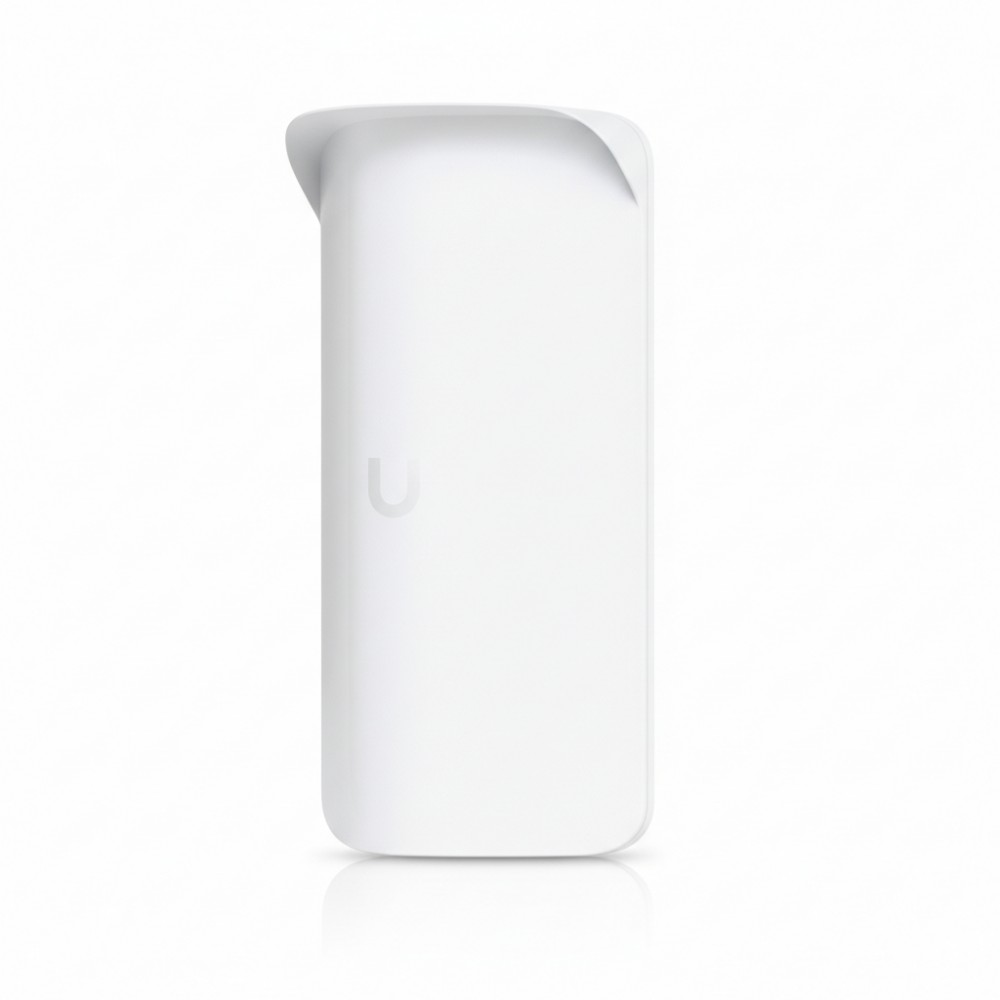

Ubiquiti WAVE-AP-GEN2-US 60 GHz PtMP Base Station
Overview
The Ubiquiti WAVE-AP-GEN2-US is a 60 GHz point-to-multipoint base station designed for high-capacity wireless backhaul and last-mile ISP distribution. It uses millimeter-wave spectrum with integrated beamforming to deliver multi-gigabit throughput to multiple subscriber stations. Built for tower and rooftop deployments, it enables fiber-like connectivity across urban and suburban coverage areas. The unit operates within the UISP ecosystem for centralized provisioning, monitoring, and link management.
Key Features
60 GHz PtMP radio with beamforming antenna
Multi-gigabit throughput for ISP distribution
Integrated GPS and synchronization support
UISP platform management and monitoring
Technical Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number | WAVE-AP-GEN2-US |
| Product Type | PtMP base station radio |
| Wireless Technology | 60 GHz millimeter wave (802.11ay-based) |
| Frequency Band | 57-71 GHz |
| Max Throughput | Up to 5.4 Gbps aggregate |
| Antenna | Integrated high-gain phased array |
| Beamforming | Electronic beam steering |
| Ethernet Interface | 1 × 2.5 GbE RJ45 |
| Power Method | PoE (48V passive) |
| Max Power Consumption | 18 W |
| Mounting | Pole mount (outdoor tower deployment) |
| Environmental Rating | IPX6 weather resistant |
| Operating Temperature | −40 °C to 60 °C |
| Management Platform | UISP |
