Overview

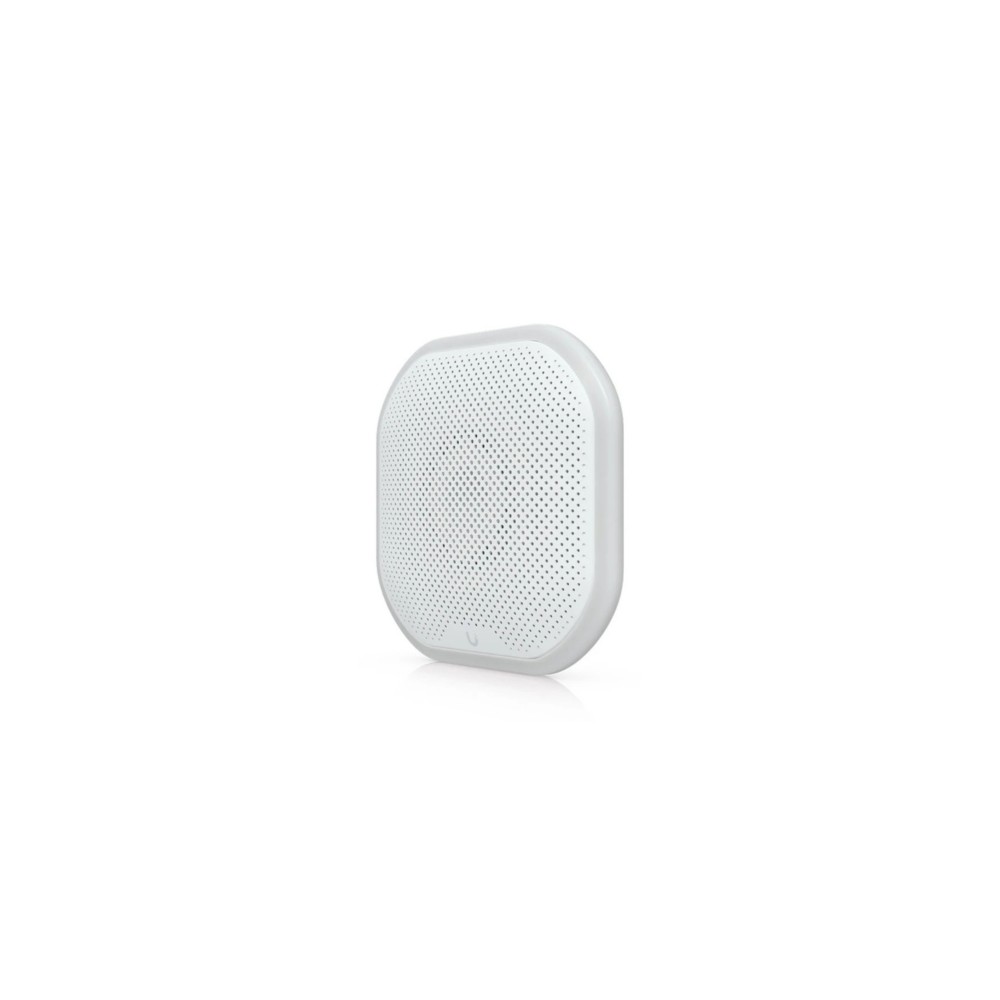

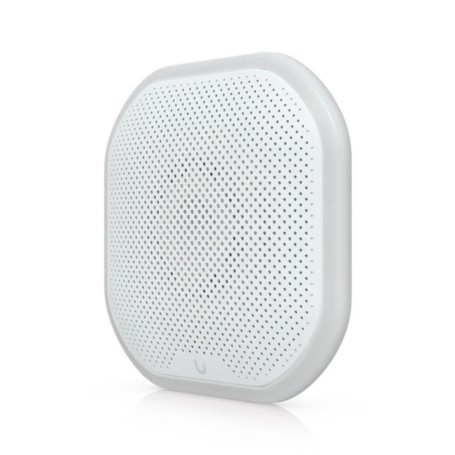

The Ubiquiti USL-Siren is an all-weather SuperLink siren designed to provide audible and visual security alerts within a UniFi Protect deployment. It delivers a 110 dB alarm and emergency LED lighting, with power provided by four CR123A batteries or a 12–24V DC source.
SuperLink Connectivity
The USL-Siren communicates using Ubiquiti's proprietary SuperLink wireless technology. A SuperLink Gateway is required for operation. The radio system provides a specified maximum range of up to 2 km (1.2 mi), subject to the installation environment and radio conditions.
Alarm and Emergency Lighting
The siren provides a 110 dB audible alarm together with an emergency LED light ring for visible notification. System and status indicators use multiple LED colors, while the light ring supports red, green, blue, and white illumination.
Power Options
The USL-Siren can operate from four CR123A batteries or a 12–24V DC power source. Maximum power consumption is 5W. The unit provides dedicated power and signal input terminals for wired power and signaling connections.
Installation and Environmental Protection
The siren supports wall mounting and ceiling installation using the included ceiling mounting plate. Its aluminum alloy and polycarbonate enclosure is rated IP56 for protection against dust and water exposure, making it suitable for indoor and appropriate outdoor installations.
Key Features
- 110 dB audible alarm
- SuperLink wireless connectivity with up to 2 km maximum specified range
- Emergency LED lighting with multi-color light ring
- Battery or 12–24V DC power options
- IP56 all-weather enclosure with wall or ceiling mounting
Compatibility
The USL-Siren is designed for UniFi Protect management through SuperLink connectivity and requires a SuperLink Gateway. It is managed through UniFi Protect Web and the UniFi Protect iOS and Android applications.
DC Supplies Product Note
Plan the installation around the required SuperLink Gateway before deploying the USL-Siren. The siren is the SuperLink wireless model and should not be confused with the separate UP-Siren-PoE, which uses PoE power.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | USL-Siren |
| Product Type | SuperLink Siren |
| Management | UniFi Protect Web, UniFi Protect iOS and Android |
| Connectivity | SuperLink proprietary wireless |
| Maximum SuperLink Range | 2 km (1.2 mi) |
| Maximum TX Power | 14 dBm |
| Antenna Gain | 2 dBi |
| Operating Frequency | US: 915.6–927.6 MHz; EU: 865.1–869.5 MHz |
| Alarm Volume | 110 dB |
| Power Method | 4 × CR123A batteries or 12–24V DC |
| Maximum Power Consumption | 5W |
| Input Terminals | 1 × power input, 1 × signal input |
| Mounting | Wall or ceiling mounting plate |
| Dimensions | 139.9 × 139.9 × 35 mm (5.5 × 5.5 × 1.4 in) |
| Weight | 345 g (12.2 oz) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Weatherproofing | IP56 |
| Operating Temperature | -30°C to 50°C (-22°F to 122°F) |
| Operating Humidity | 5–90% noncondensing |
| Buttons | Power, factory reset, tamper switch |
| Certifications | FCC, IC, CE |
| NDAA Compliant | Yes |
Frequently Asked Questions
What is the Ubiquiti USL-Siren?
The USL-Siren is an all-weather SuperLink siren for UniFi Protect security deployments, providing a 110 dB audible alarm and emergency LED lighting.
Does the USL-Siren require a SuperLink Gateway?
Yes. Ubiquiti specifies that a SuperLink Gateway is required for the USL-Siren.
How is the USL-Siren powered?
It can use four CR123A batteries or a 12–24V DC power source, with maximum power consumption specified at 5W.
Is the USL-Siren suitable for outdoor installation?
The enclosure is IP56 rated and designed for all-weather use. The specified operating temperature range is -30°C to 50°C.
How does the USL-Siren communicate?
It uses Ubiquiti's proprietary SuperLink wireless technology. The specified maximum SuperLink range is up to 2 km (1.2 mi), depending on installation and environmental conditions.
