Detailed Specifications
TRENDnet TEW-830MDR2K-CA - AC2200 Wi-Fi Mesh System
Overview
The TRENDnet TEW-830MDR2K-CA is a two-pack mesh Wi-Fi 5 system built to deliver seamless home or small-office coverage. Each unit supports dual 5 GHz (867 Mbps each) and one 2.4 GHz (400 Mbps) band, offering a combined AC2200 throughput. This mesh system solves dead-zone problems by intelligently steering devices to the best node and enabling seamless roaming between units. It's ideal for deployments in homes up to ~4,000 ft², or any environment where a single router fails to reliably reach all corners. Management is handled via the TRENDnet Wi-Fi Mesh mobile app, which provides firmware upgrades, client-list monitoring, and mesh quality metrics. For power, each node uses an external 12 V DC adapter. The system also includes a USB 3.0 port (Samba-supported), supporting shared storage in the mesh network. With IPv6 support, Multi-User MIMO, and advanced features like band steering and implicit/explicit beamforming, this mesh kit is a technically solid choice for stable, whole-home coverage.
Key Features
AC2200 throughput (867+867+400 Mbps)
Two-unit mesh system for extended coverage
Multi-User MIMO for efficient bandwidth use
USB 3.0 port with Samba file sharing
Seamless Wi-Fi roaming across nodes
Specification :
| Specification | Detail |
|---|
| Brand | TRENDnet |
| Part Number | TEW-830MDR2K-CA |
| Product Type | Mesh Wi-Fi Router System |
| Wi-Fi Standard | IEEE 802.11ac (Wi-Fi 5) |
| Maximum Throughput | AC2200 (867 + 867 + 400 Mbps) |
| Frequency Bands | 2.4 GHz & dual 5 GHz ( |

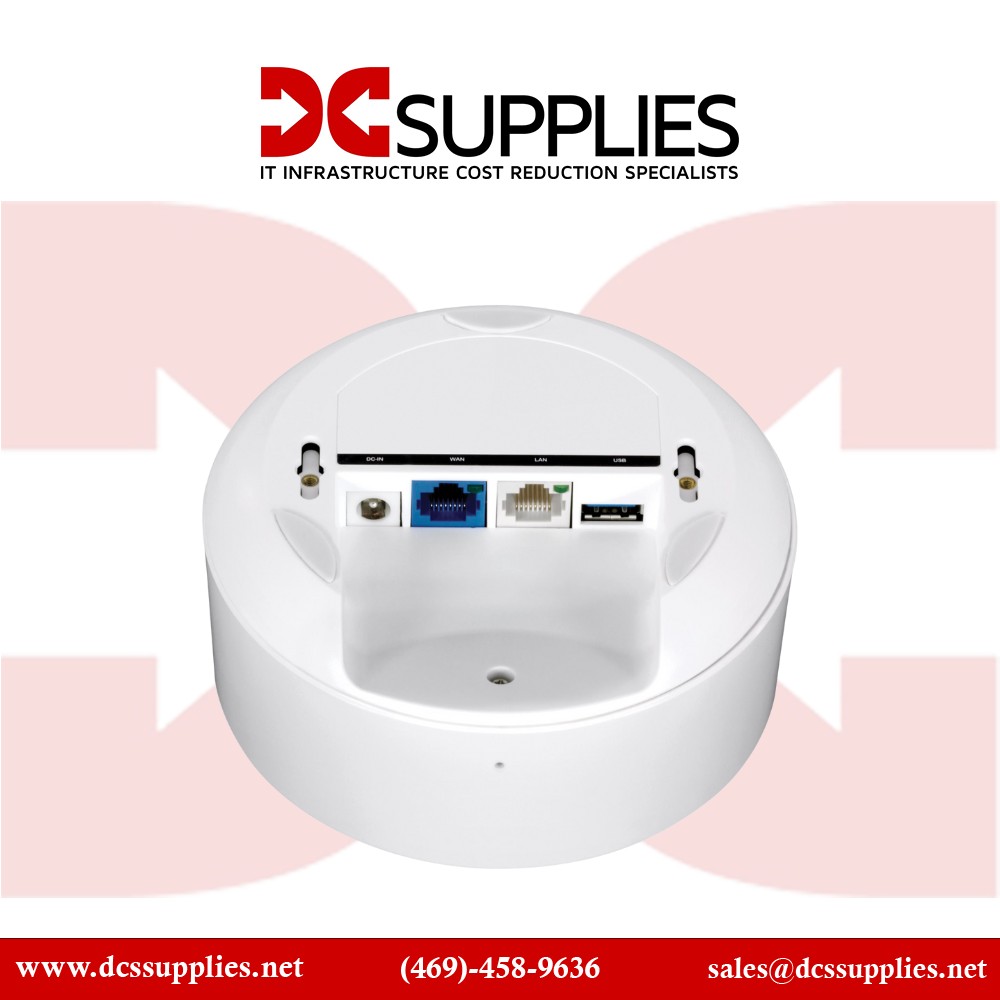

| Ports | 1 × Gigabit WAN, 1 × Gigabit LAN, 1 × USB 3.0 |
| Antennas | Internal; 2.4 GHz: 2×4.03 dBi, 5 GHz: 4×5.64 dBi |
| Operating Temp. | 0 °C to 40 °C (32 °F to 104 °F) |
| Power Input | 12 V DC, 1.5 A adapter per unit |
| Max Power Consumption | 15.12 W |
| Dimensions (per unit) | 4.96 × 4.96 × 2.36 inches (126 × 126 × 60 mm) |
| Weight (per unit) | 13.1 oz (372 g) |
| Security | WPA/WPA2-PSK AES, Guest Network, Client Isolation |
| Management | HTTP/HTTPS web UI, mobile app, mesh monitoring |
| IPv6 Support | Yes |
| Certification | FCC, IC |
| Warranty | 3 years |
