Detailed Specifications

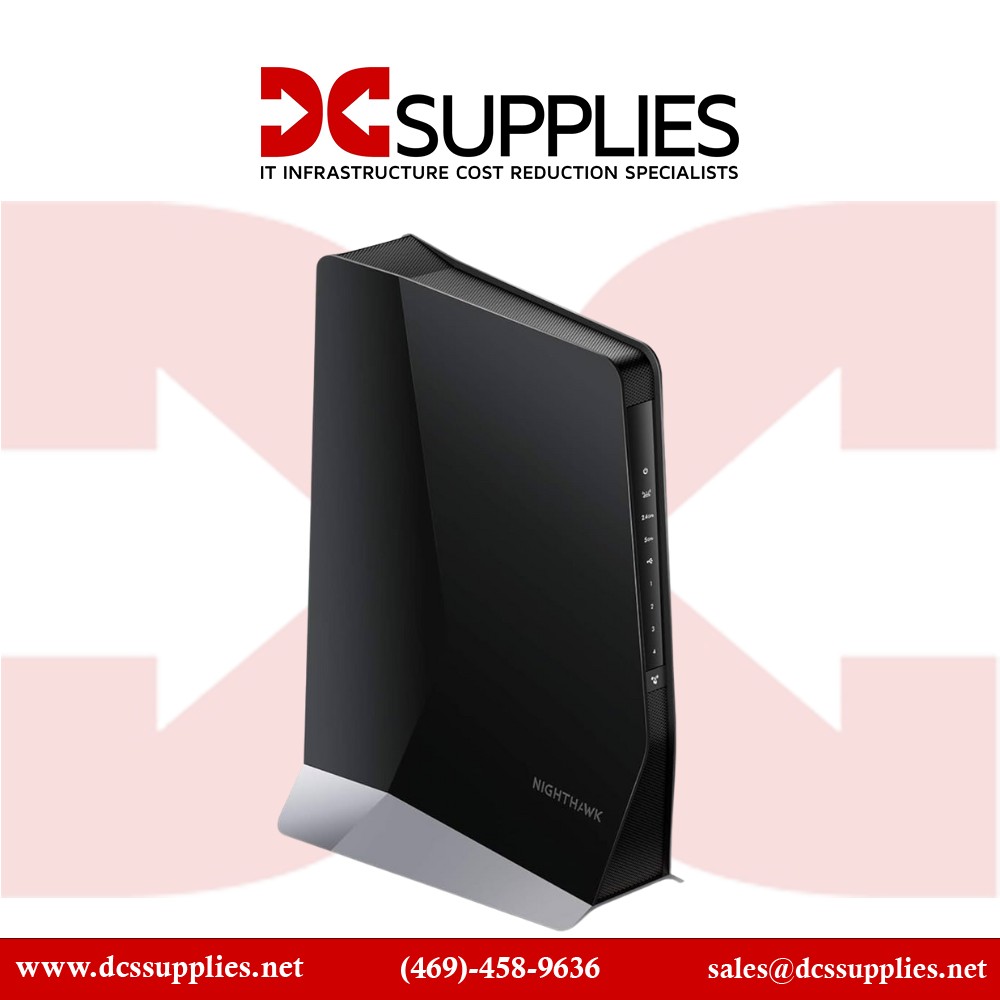

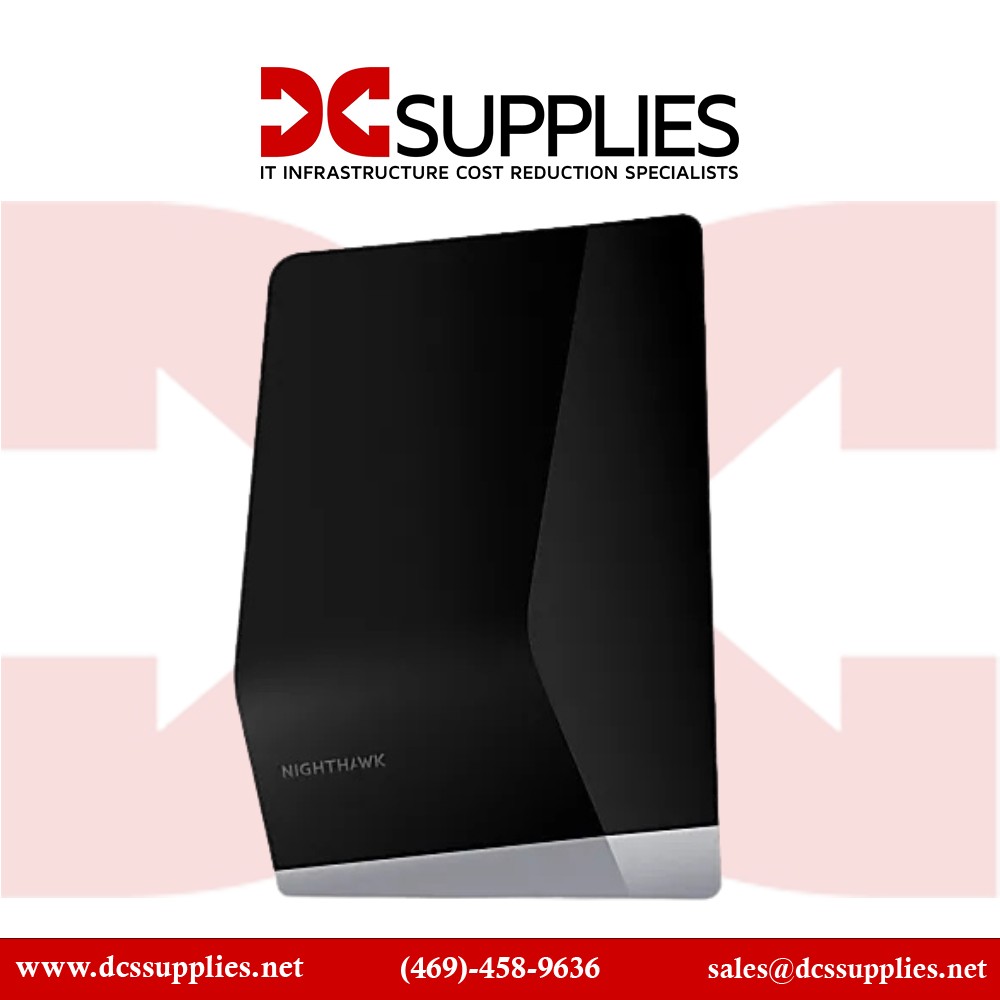

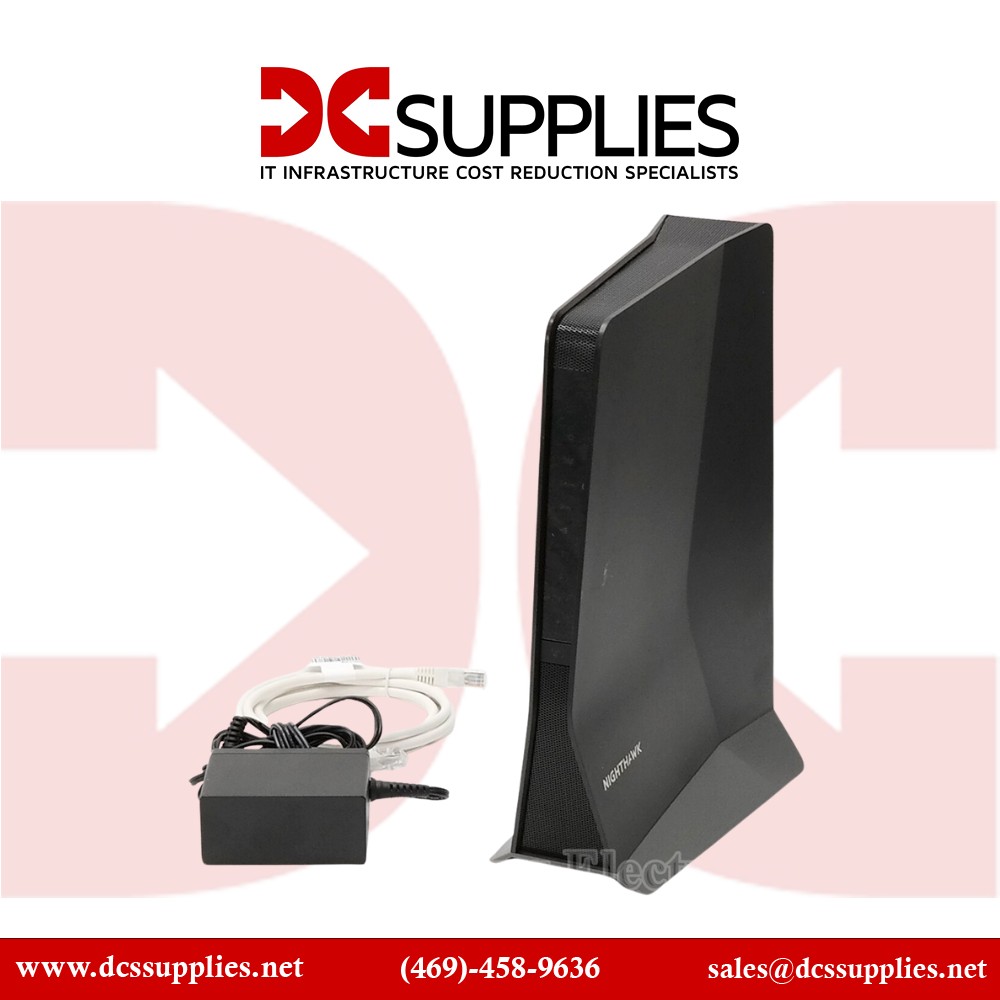

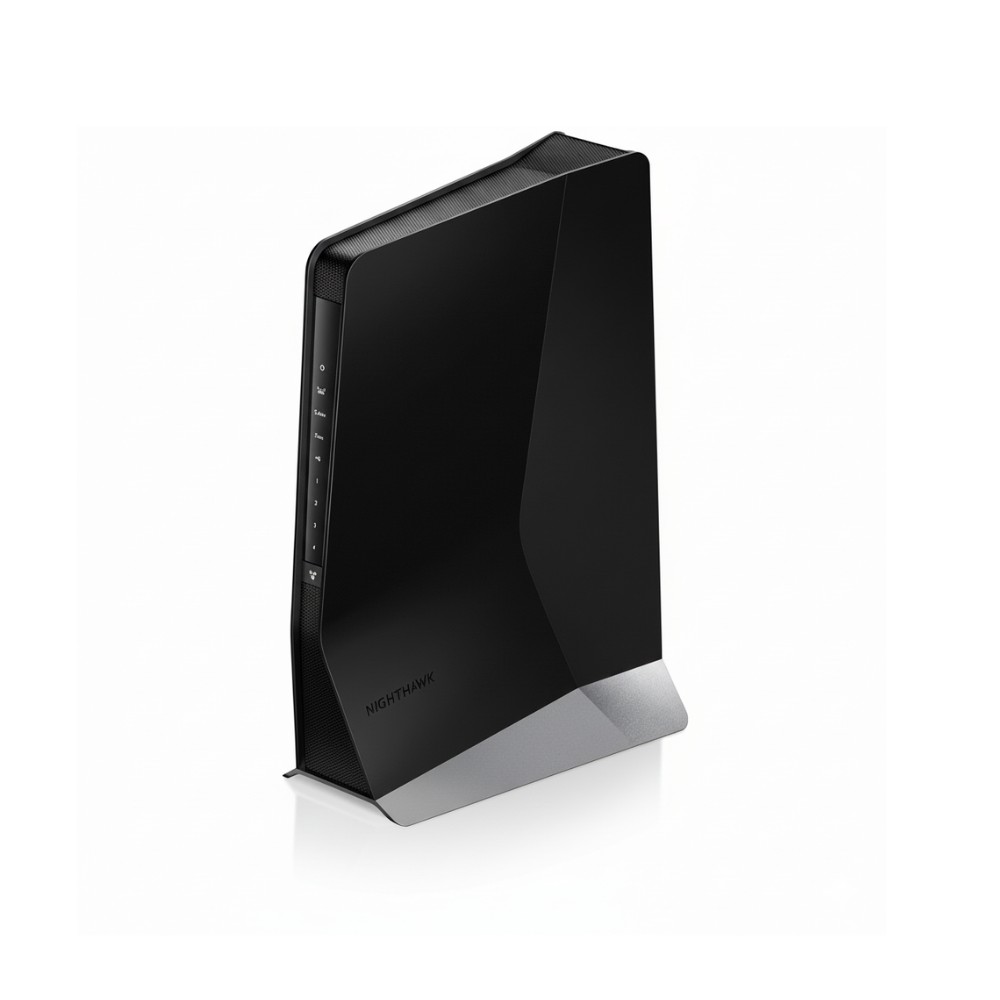

Netgear EAX80-100NAS Nighthawk AX6000 8-Stream WiFi 6 Mesh Extender
Overview:
The Netgear EAX80-100NAS is an 8-stream WiFi 6 mesh extender that adds 2,500 square feet of coverage to existing networks while supporting 30+ simultaneous devices. This AX6000 dual-band unit delivers 1200 Mbps on 2.4GHz and 4800 Mbps on 5GHz with MU-MIMO and OFDMA technology to handle high-density environments like smart homes or home offices. Four Gigabit Ethernet ports provide wired backhaul options or connect devices like gaming consoles and smart TVs, while the USB 3.0 port enables ReadyShare network storage for file sharing across your network.
Key Features :
- 8-stream WiFi 6 architecture provides 4x the device capacity of previous extenders with OFDMA and MU-MIMO for efficient multi-device handling
- AX6000 dual-band speeds up to 6 Gbps aggregate with 1200 Mbps on 2.4GHz and 4800 Mbps on 5GHz for 4K streaming and online gaming
- Four Gigabit Ethernet LAN ports enable wired connections for stationary devices or use one port for Gigabit wired backhaul to the main router
- USB 3.0 ReadyShare port turns attached storage drives into network shares accessible by all connected devices for centralized file storage
Specifications :
| Specification | Detail |
|---|
| Brand | Netgear |
| Part Number | EAX80-100NAS |
| Product Type | WiFi 6 Mesh Range Extender |
| Wi-Fi Standard | 802.11ax (WiFi 6), backward compatible with a/b/g/n/ac |
| Radio Configuration | 8-stream dual-band: 1200 Mbps (2.4GHz) + 4800 Mbps (5GHz) = AX6000 |
| Ethernet Ports | 4x Gigabit (10/100/1000 Mbps) RJ-45 LAN ports + USB 3.0 port |
| Management | Web GUI, Nighthawk app (iOS/Android), WPS setup |
| Power Requirements | Internal power supply, 32W max consumption |
| Dimensions & Weight | 279x197x106mm (10x7.75x4.2 in), 0.86kg (1.9 lbs) |
| Warranty | 1-year limited hardware warranty |
