Netgear RBS50Y-100NAS Orbi Outdoor Tri-Band Wi-Fi Range Extender View larger
Previous Next

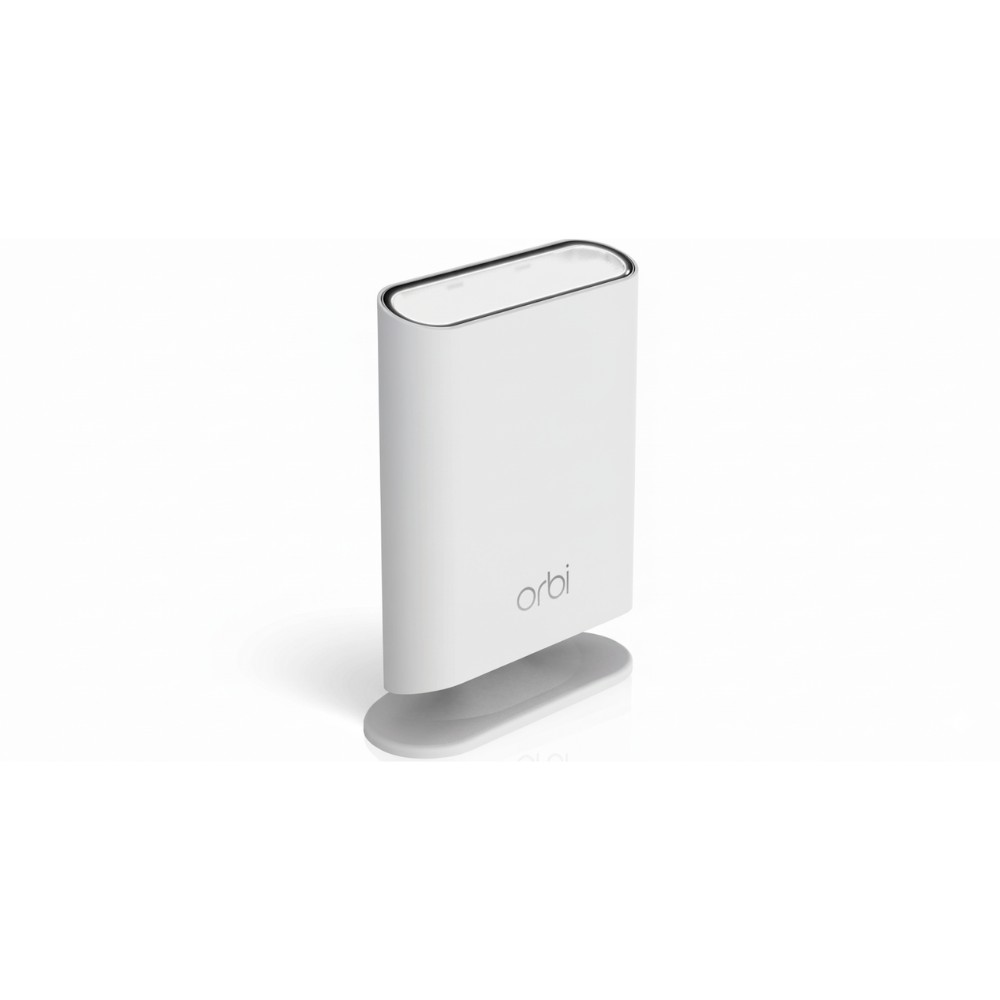

Netgear RBS50Y-100NAS Orbi Outdoor Tri-Band Wi-Fi Range Extender

New

Netgear Orbi RBS50Y Tri-Band IEEE 802.11ac 5GHz 3000Mbps Internal Antennas Wireless
×




  • New

Detailed Specifications

Netgear RBS50Y-100NAS

Orbi Outdoor AC3000 Tri‑Band Mesh Satellite

The NETGEAR RBS50Y‑100NAS is a robust outdoor mesh satellite designed to extend Orbi or third-party router Wi‑Fi coverage into your yard, pool area, garage, or greenhouse. With tri‑band AC3000 performance and industrial-grade build, it ensures fast, reliable coverage—even in harsh outdoor environments.

Features

Delivering tri-band connectivity (400 Mbps + 866 Mbps + 1,733 Mbps) over one 2.4 GHz and two 5 GHz radios—including a dedicated 4×4 backhaul—the RBS50Y maintains high throughput even during heavy outdoor device usage . Its IP56-rated enclosure resists dust, rain, snow, and UV—rated for temperatures from –20 °C to 50 °C—making it a great outdoor solution.

Advanced Options

Installation is simple—mount it on a wall or pole using the included kit, power it with the 12 V/2.5 A adapter, then sync via WPS or the Orbi app. Once paired, it integrates seamlessly with your existing Orbi system under the same SSID for uninterrupted roaming.

Product Key Features

  •  Tri‑Band AC3000: 400 Mbps (2.4 GHz) + 866 Mbps + 1,733 Mbps (5 GHz backhaul)

  •  Weather‑Resistant IP56 enclosure ideal for outdoor use from –20 °C to +50 °C

  •  4×4 dedicated backhaul ensures robust, seamless Wi‑Fi extension

  •  Wall- or pole-mountable, with included mounting bracket and screws

  •  Single SSID & seamless roaming, auto syncs with Orbi Router via app or WPS

  •  Alexa compatible guest controls, plus 6 internal high-gain antennas with MU‑MIMO and beamforming

Reliability & Performance

Equipped with 6 high-gain internal antennas, MU‑MIMO, beamforming, and a powerful quad-core CPU with 512 MB RAM and 256 MB flash, the device delivers stable performance and intelligent coverage It supports WPA/WPA2‑PSK security, guest network, and voice controls (Alexa). It’s backed by a 3‑year warranty, ensuring rugged reliability outdoors.

Key Features :

  • Tri‑band AC3000 (400 + 866 + 1,733 Mbps)

  • 4×4 dedicated backhaul for stable mesh connectivity

  • Weather‑resistant IP56 rated; –20 °C to +50 °C operation

  • MU‑MIMO & beamforming for device acceleration

  • 6 internal high-gain antennas

  • Seamless single‑SSID roaming with Orbi systems

  • Guest network, Alexa integration, WPS sync

SpecificationDetails
Model Number RBS50Y‑100NAS (RBS50Y Outdoor Satellite)
Product Type Outdoor Mesh Satellite (tri‑band, AC3000)
Wi‑Fi Standard IEEE 802.11a/b/g/n/ac, AC3000
Radio 1 (2.4 GHz) Speed 400 Mbps, 2×2 MIMO, 256‑QAM
Radio 2 (5 GHz) Speed 866 Mbps, 2×2 MIMO, 256‑QAM
Radio 3 (5 GHz backhaul) 1,733 Mbps, 4×4 MIMO
Antennas 6 internal high-gain
Processor Quad‑core CPU
Memory 256 MB flash, 512 MB RAM
MU‑MIMO & Beamforming Yes
Security WPA/WPA2‑PSK
Management Sync via Orbi App or WPS
Mounting Wall or pole via included kit
Dimensions (W×D×H) 21.1 × 6.9 × 26.9 cm (8.3 × 2.7 × 10.6 in)
Weight ~1.33 kg (2.94 lb)
Weather Rating IP56 (dust-tight, high‑pressure water jets)
Operating Temperature –20 °C to +50 °C
Power Adapter 12 V / 2.5 A DC
