Detailed Specifications

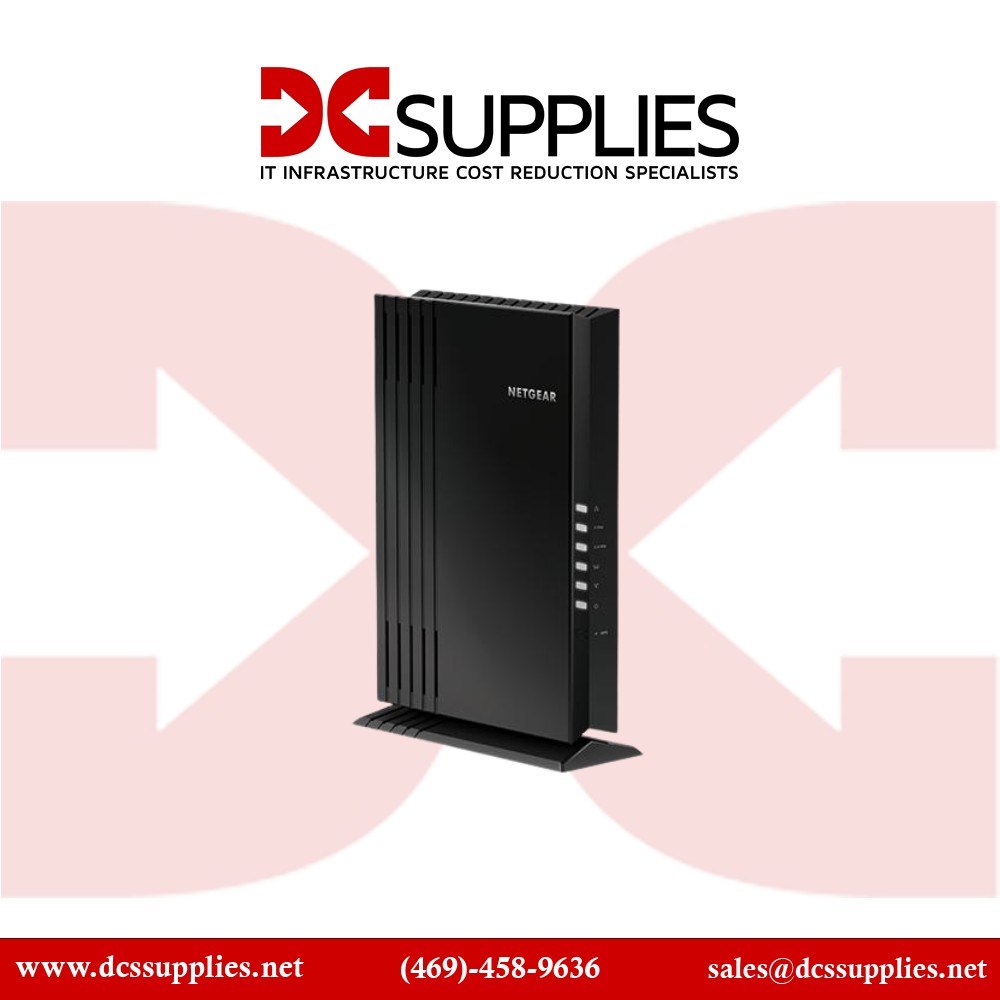

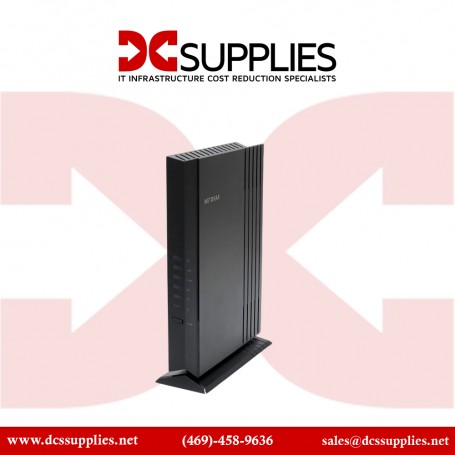

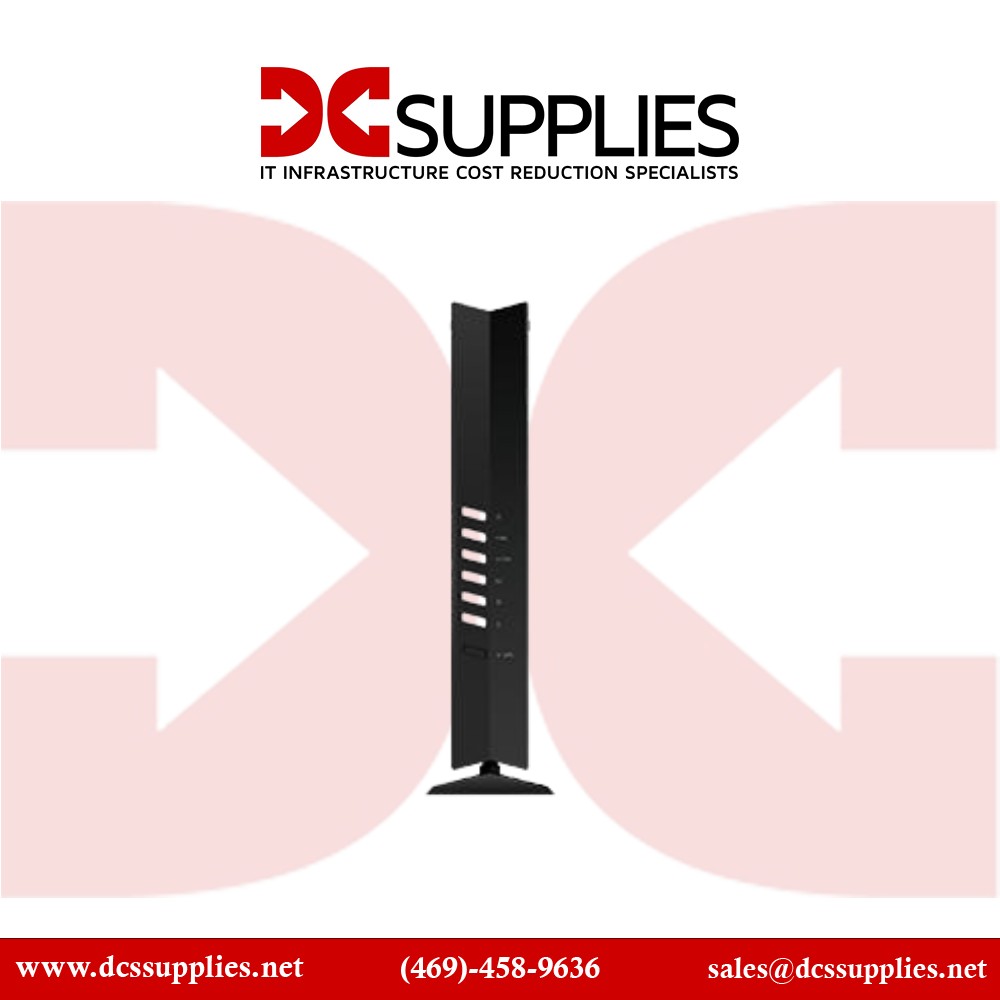

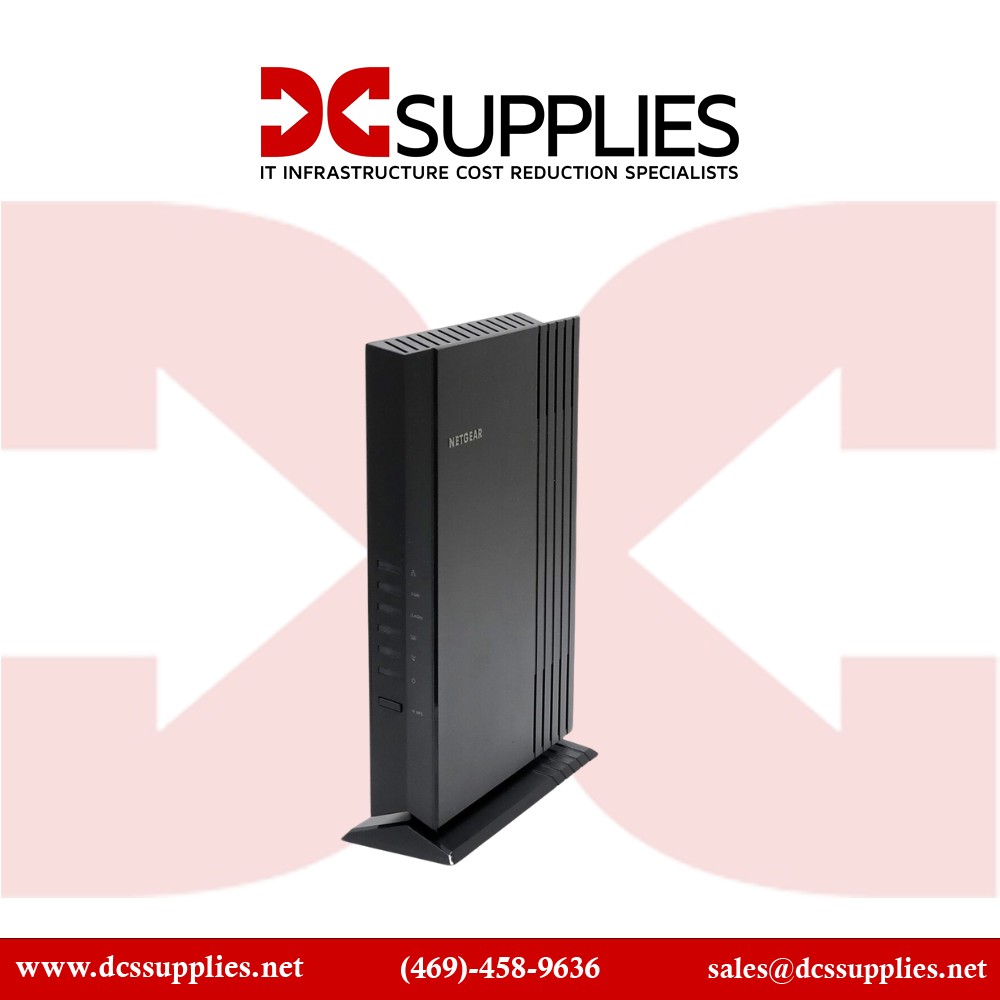

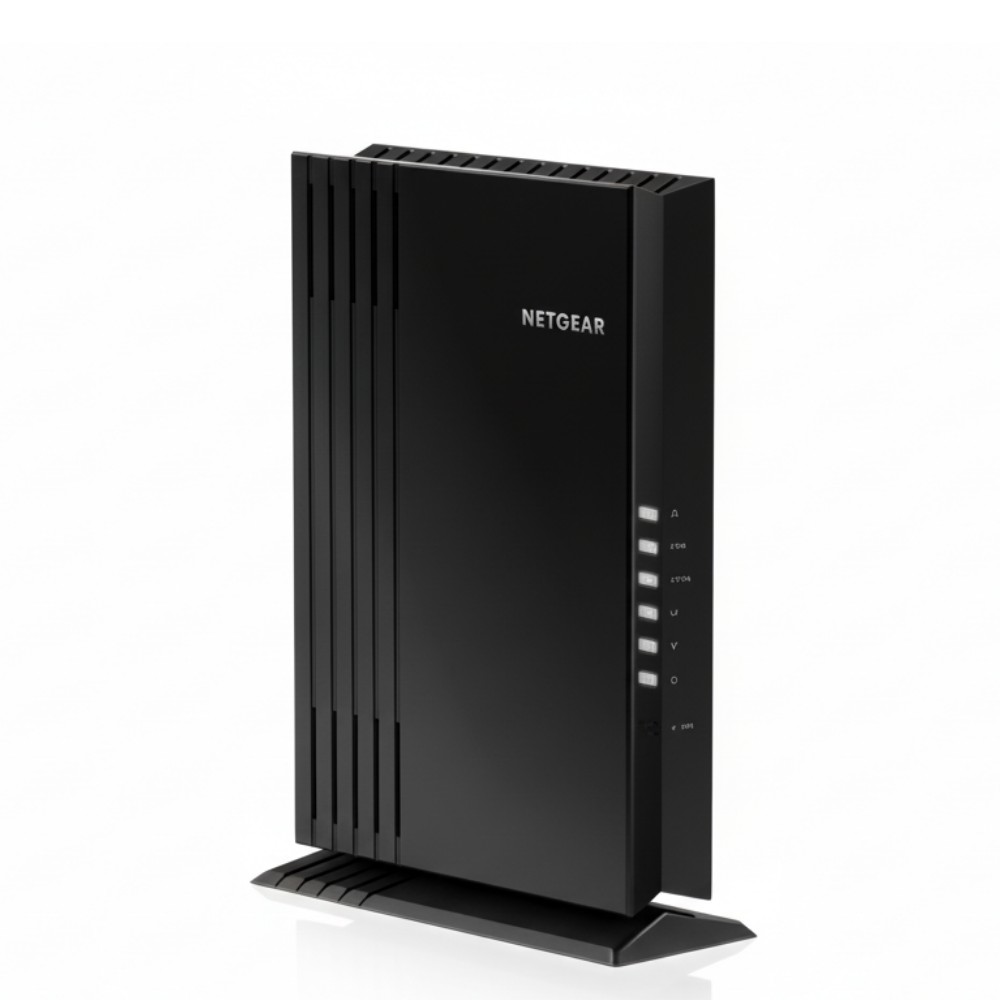

NETGEAR EAX20-100CNS - AX1800 Mesh WiFi 6 Extender
Overview
The NETGEAR EAX20-100CNS is a desktop mesh extender designed to enhance coverage and capacity in existing WiFi 6 (802.11ax) networks. It supports dual-band operation (2.4 GHz + 5 GHz) with four spatial streams, delivering up to 1.8 Gbps aggregate throughput. It fits into home or small office environments to extend signal into weak zones. It is managed via the Nighthawk app and integrates with mesh systems to maintain a single SSID.
Key Features
AX1800 dual-band, 4-stream WiFi
Four Gigabit RJ-45 LAN ports
1.5 GHz quad-core CPU inside
Seamless roaming with mesh SSID
Technical Specifications
| Specification | Value |
|---|
| Brand | NETGEAR |
| Part Number | EAX20-100CNS |
| Product Type | Mesh WiFi 6 Extender |
| WiFi Standard | IEEE 802.11ax (WiFi 6) |
| Max Aggregate Throughput | 1,800 Mbps (600 Mbps @ 2.4 GHz + 1,200 Mbps @ 5 GHz) |
| Spatial Streams | 4 (2×2 each band) |
| Ethernet Ports | 4 × Gigabit RJ-45 (10/100/1000) |
| CPU | 1.5 GHz quad-core |
| Dimensions | 241.7 × 169.5 × 63.4 mm |
| Weight | 504.4 g |
| Coverage Extension | Adds up to ~1,500 sq ft of coverage |
| Security | WPA3, WPA2, 128-bit AES |
| Operating Modes | Extender / Access Point |
| Compatibility | Works with any WiFi router (802.11a/b/g/n/ac/ax) |
