Overview

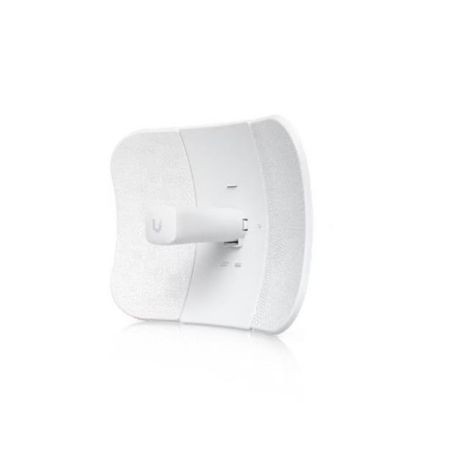

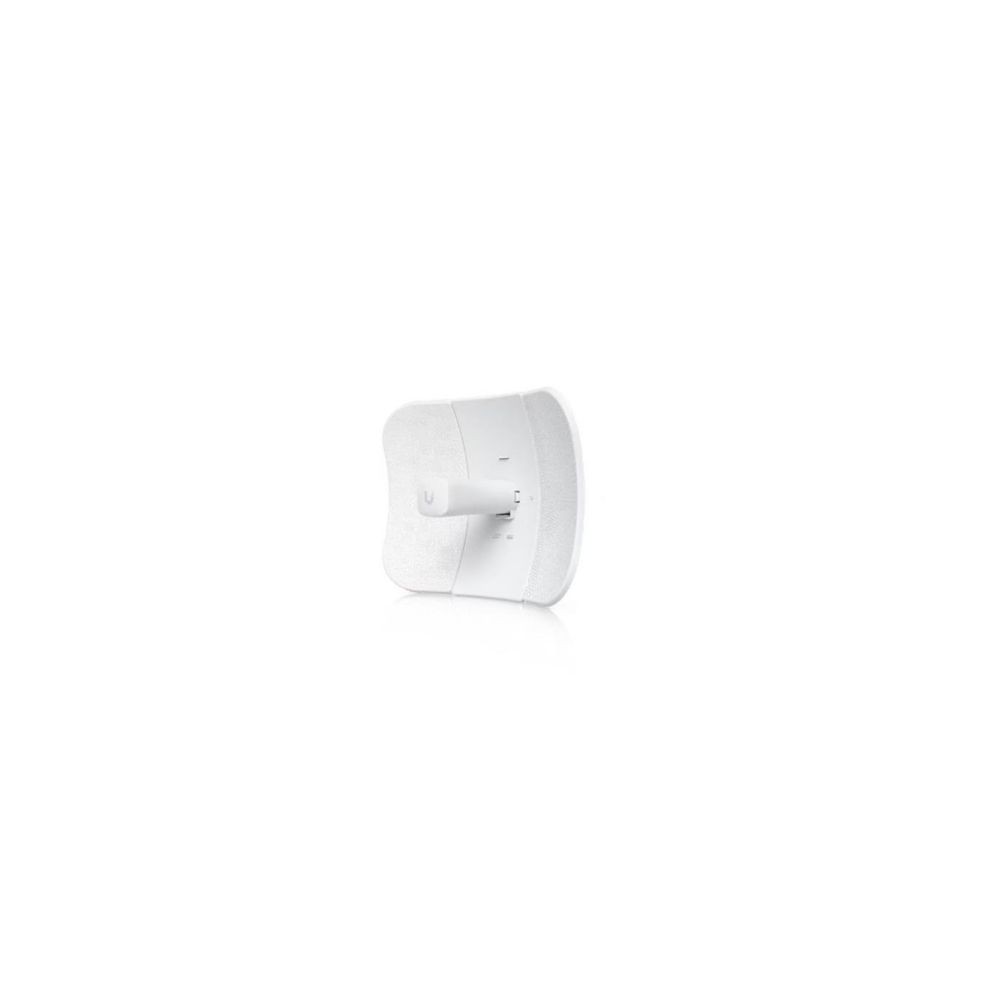

The Ubiquiti LBE-5AC-GEN2-5 is a five-pack of LiteBeam 5AC Gen2 5 GHz airMAX AC radios designed for wireless point-to-point and point-to-multipoint deployments. Each unit combines a 23 dBi directional antenna with an integrated radio, Gigabit Ethernet, passive PoE, and dedicated 2.4 GHz management Wi-Fi.
Wireless Performance
Each LiteBeam 5AC Gen2 operates in the 5 GHz band from 5150 to 5875 MHz and provides 23 dBi antenna gain with 450+ Mbps total throughput. Point-to-point operation supports channel widths from 10 to 80 MHz, while point-to-multipoint operation supports 10, 20, 30, and 40 MHz channels. The radio uses Ubiquiti airMAX AC technology for outdoor wireless links.
Network and Management
Each unit provides one 10/100/1000 Ethernet port and supports Access Point and Station operating modes. A dedicated 2.4 GHz management radio supports 2412–2472 MHz operation worldwide, allowing configuration through the airMAX management interface and UISP mobile workflow.
Power and Installation
The LiteBeam 5AC Gen2 uses 24V passive PoE through the Ethernet connection. Each unit supports 22–27V DC input and has a maximum power consumption of 7W. The included pole-mounting hardware provides mechanical installation for outdoor deployments.
Outdoor Construction
The directional reflector uses SGCC steel with a plastic feed assembly. The radio is rated for operation from -40 to 70°C with 5–95% noncondensing humidity. The enclosure is designed for outdoor wireless deployment and provides resistance to wind conditions up to 200 km/h.
Key Features
- Five LiteBeam 5AC Gen2 radios in one pack
- 23 dBi directional antenna gain and 450+ Mbps total throughput per unit
- 5 GHz airMAX AC wireless platform
- Gigabit Ethernet with 24V passive PoE
- Dedicated 2.4 GHz management Wi-Fi
Applications
The LBE-5AC-GEN2-5 is intended for wireless backhaul, point-to-point links, point-to-multipoint customer-premises deployments, WISP networks, and outdoor network extensions. The five-unit pack is suitable for deployments requiring multiple LiteBeam radios.
DC Supplies Product Note
The LiteBeam 5AC Gen2 uses passive 24V PoE rather than 802.3af or 802.3at PoE. Verify the power method before connecting each radio to network switching equipment.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | LBE-5AC-GEN2-5 |
| Product Type | 5 GHz Outdoor Wireless CPE, 5-Pack |
| Product Line | airMAX LiteBeam 5AC Gen2 |
| Pack Quantity | 5 |
| Operating Frequency | 5150–5875 MHz |
| Antenna Gain | 23 dBi |
| Total Throughput | 450+ Mbps per unit |
| Operating Modes | Access Point, Station |
| Wireless Technology | airMAX AC |
| PtP Channel Widths | 10/20/30/40/50/60/80 MHz |
| PtMP Channel Widths | 10/20/30/40 MHz |
| Networking Interface | 1 × 10/100/1000 Ethernet |
| Management Radio | 2.4 GHz, 2412–2472 MHz worldwide |
| Power Method | 24V Passive PoE, 2-pair |
| Power Supply | 24V, 0.3A Gigabit PoE adapter |
| Supported Voltage | 22–27V DC |
| Maximum Power Consumption | 7W per unit |
| Maximum Output Power | 25 dBm |
| Mounting | Pole mount |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 275 N at 200 km/h |
| Operating Temperature | -40 to 70°C |
| Operating Humidity | 5–95% noncondensing |
| Enclosure | SGCC steel reflector and plastic components |
| ESD/EMP Protection | ±24 kV contact/air |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel |
FAQs
How many LiteBeam radios are included?
The LBE-5AC-GEN2-5 is a five-pack, providing five LiteBeam 5AC Gen2 units.
What frequency does the LiteBeam 5AC Gen2 use?
Each unit operates in the 5 GHz range from 5150 to 5875 MHz, subject to applicable regional frequency regulations.
What is the antenna gain?
Each LiteBeam 5AC Gen2 provides 23 dBi antenna gain.
Does it support Gigabit Ethernet?
Yes. Each unit has one 10/100/1000 Ethernet port.
Does it use standard PoE?
No. The LiteBeam 5AC Gen2 uses 24V passive PoE. It should not be treated as an 802.3af or 802.3at powered device.
