Overview

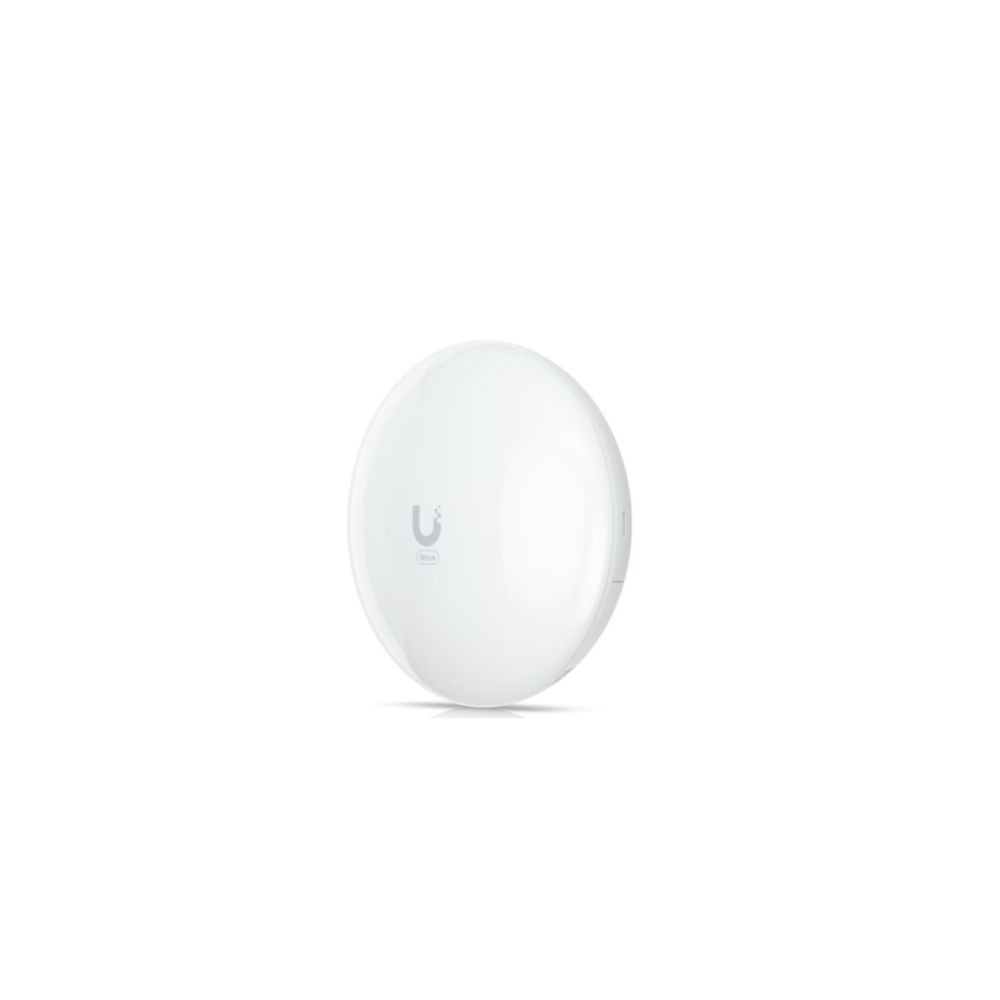

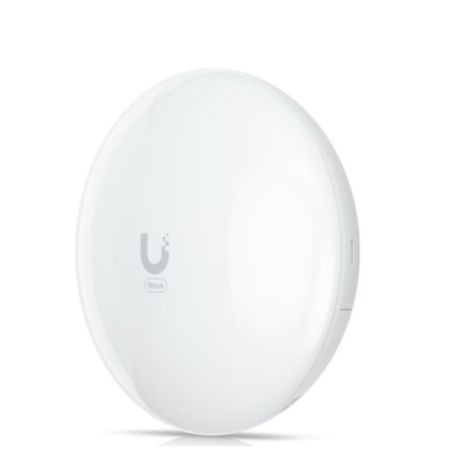

The Ubiquiti WAVE-PICO, also designated Wave-Pico, is a compact UISP 60 GHz wireless station designed for point-to-multipoint and point-to-point links. It combines Wave Technology with a 5 GHz WiFi 6 backup radio and provides up to 2 Gbps total throughput.
60 GHz Wireless
The primary radio operates from 57–71 GHz with 2160, 1080, and 540 MHz channel bandwidths. It uses 16QAM and QPSK modulation, a 27.7 dBi antenna, and vertically-linear polarization. Ubiquiti specifies a 3 dB beamwidth of 6° in both azimuth and elevation. Maximum range is up to 1.5 km for PtP links and up to 1.3 km when connected to a Wave AP. :contentReference[oaicite:1]{index=1}
5 GHz Backup Radio
A WiFi 6 backup radio provides connectivity resilience when the primary 60 GHz link is affected by environmental conditions. The backup radio operates across 5 GHz bands with 20, 40, and 80 MHz channel bandwidths, 9 dBi antenna gain, and dual-linear polarization. :contentReference[oaicite:2]{index=2}
Networking and Power
The WAVE-PICO provides one Gigabit Ethernet RJ45 interface. It supports passive PoE using either four-pair power delivery or two-pair operation when supplied with 44–54V DC. Maximum power consumption is 10W, and a 48V DC, 0.5A Gigabit PoE adapter is included. :contentReference[oaicite:3]{index=3}
Installation and Environmental Protection
The station uses a pole-mount design compatible with pole diameters from 20 to 53.1 mm. Its UV-stabilized polycarbonate enclosure and mount provide IPX6 weatherproofing, with an operating temperature range of -40 to 60°C and 5–95% noncondensing humidity. :contentReference[oaicite:4]{index=4}
Key Features
- 57–71 GHz Wave Technology radio
- Up to 2 Gbps total throughput
- 27.7 dBi 60 GHz antenna gain
- 5 GHz WiFi 6 backup radio
- 1 × Gigabit Ethernet RJ45 port
- Passive PoE power with included 48V adapter
- IPX6 weatherproof enclosure
Applications
The WAVE-PICO is designed for compact wireless backhaul and access deployments, including point-to-point links and point-to-multipoint client connections using compatible UISP Wave infrastructure.
DC Supplies Product Note
The Wave Pico is a station rather than a Wave access point. For PtMP deployment, it connects to compatible Wave AP infrastructure; Ubiquiti also specifies compatibility with Wave AP Micro and Wave AP Gen2 at shorter maximum ranges. :contentReference[oaicite:5]{index=5}
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | WAVE-PICO |
| Product Type | 60 GHz Wireless Station |
| Product Line | UISP Wave |
| Operating Modes | PtP, PtMP Station |
| Total Throughput | 2 Gbps |
| 60 GHz Frequency | 57–71 GHz |
| 60 GHz Channel Bandwidth | 2160, 1080, 540 MHz |
| 60 GHz Modulation | 16QAM, QPSK |
| 60 GHz Antenna Gain | 27.7 dBi |
| 60 GHz Polarization | Vertically-linear |
| 60 GHz Beamwidth | 6° azimuth / 6° elevation, 3 dB |
| 5 GHz Backup Standard | 802.11ax (WiFi 6) |
| 5 GHz Antenna Gain | 9 dBi |
| Networking Interface | 1 × Gigabit Ethernet RJ45 |
| Maximum Power Consumption | 10W |
| Power Method | Passive PoE |
| Supported Voltage | 22–27V DC; 44–54V DC |
| Included Power Supply | 48V DC, 0.5A Gigabit PoE adapter |
| Maximum PtP Range | 1.5 km (1 mile) |
| Maximum PtMP Range | 1.3 km with Wave AP |
| Mounting | Pole mount |
| Compatible Pole Diameter | 20–53.1 mm |
| Weatherproofing | IPX6 |
| Operating Temperature | -40 to 60°C |
| Operating Humidity | 5–95% noncondensing |
| Enclosure Material | UV-stabilized polycarbonate |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE |
FAQs
What is the Ubiquiti WAVE-PICO?
The WAVE-PICO is a compact UISP Wave 60 GHz wireless station supporting both point-to-point and point-to-multipoint operation.
What throughput does the Wave Pico support?
Ubiquiti specifies up to 2 Gbps total throughput. :contentReference[oaicite:6]{index=6}
Does the Wave Pico have a backup radio?
Yes. It includes a 5 GHz 802.11ax WiFi 6 backup radio with 9 dBi antenna gain. :contentReference[oaicite:7]{index=7}
What is the maximum link range?
Ubiquiti specifies up to 1.5 km for PtP operation and up to 1.3 km when connecting to a Wave AP. :contentReference[oaicite:8]{index=8}
How is the Wave Pico powered?
It uses passive PoE and supports 44–54V DC for four-pair operation, with 22–27V DC also supported. A 48V, 0.5A Gigabit PoE adapter is included. :contentReference[oaicite:9]{index=9}
