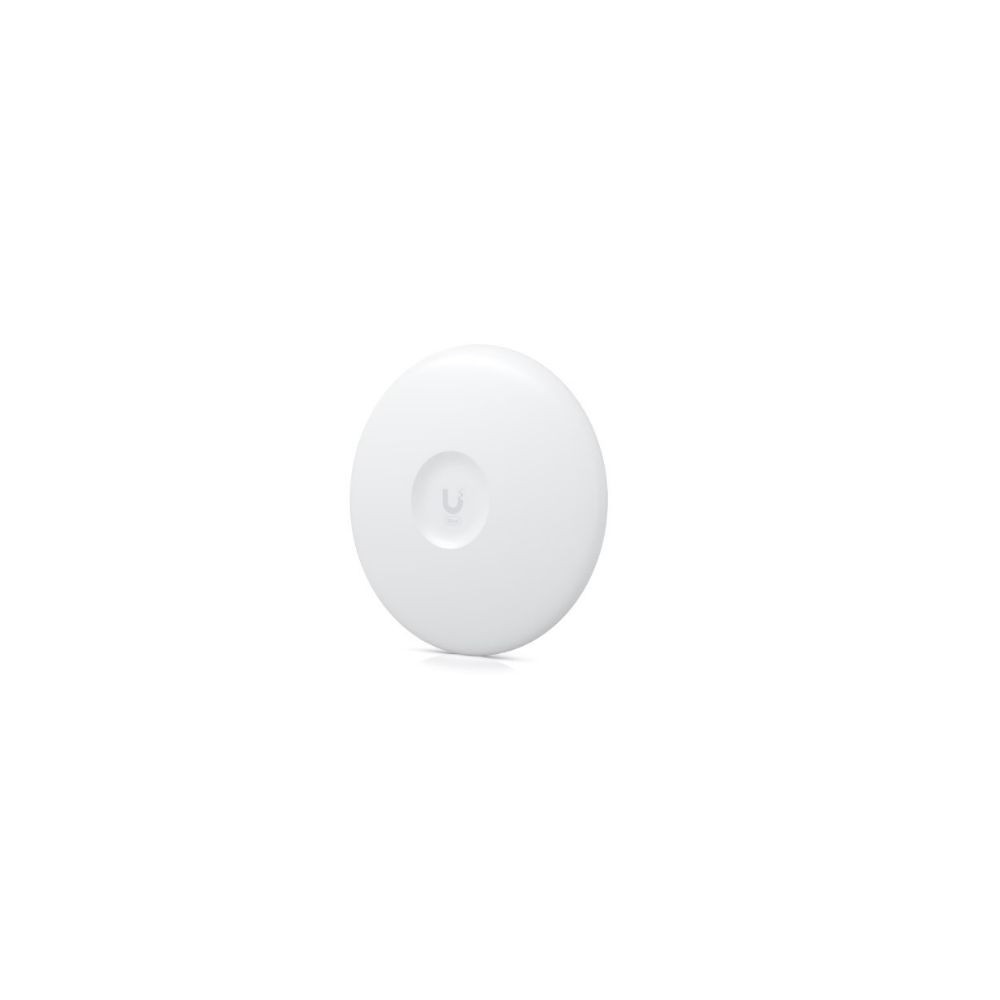

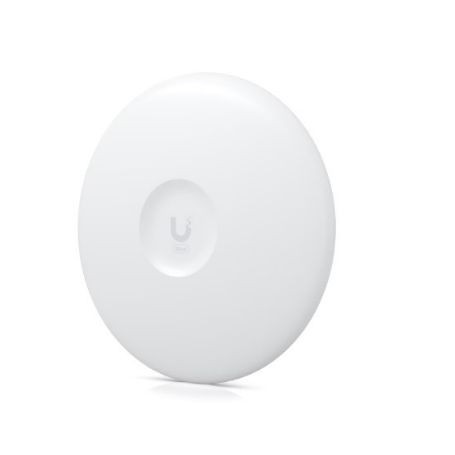

Ubiquiti WAVE-PRO UISP Wave Pro 60 GHz Radio
Overview
The Ubiquiti WAVE-PRO is a high-capacity UISP Wave radio designed for long-distance point-to-point bridge and point-to-multipoint station links. Its primary 60 GHz radio provides up to 5.4 Gbps total throughput, while an integrated 5 GHz Wi-Fi 6 backup radio provides an alternative wireless connection.
The WAVE-PRO supports both PtP and PtMP Station operating modes and can connect to compatible Wave access points. Ubiquiti specifies a maximum PtP range of up to 15 km and PtMP ranges of up to 8 km when connected to a Wave AP, depending on deployment conditions and paired equipment.
60 GHz Wireless Technology
The primary radio operates from 57–71 GHz with selectable 2160, 1080, and 540 MHz channel bandwidths. It uses 16QAM and QPSK modulation and provides 46 dBi antenna gain with vertically linear polarization.
The integrated 60 GHz antenna has a 1.3° azimuth and 1.3° elevation beamwidth, making accurate antenna alignment important for long-distance wireless links.
5 GHz Backup Radio
The WAVE-PRO includes an 802.11ax Wi-Fi 6 backup radio operating across the supported 5 GHz range. It supports 20, 40, and 80 MHz channel bandwidths and provides 22 dBi antenna gain with dual-linear polarization.
Networking Interfaces
The device provides two 2.5 GbE RJ45 ports and one 10G SFP+ port. This interface combination provides multi-gigabit wired connectivity for high-capacity wireless links and network uplinks.
Management and Features
The WAVE-PRO is managed through UISP and requires UISP version 2.3.0 or later. Supported features include traffic shaping with burst support, SNMP, NTP client functionality, ping watchdog, cable testing, site survey, speed test, traceroute, antenna alignment, and Wave AI.
Installation
The WAVE-PRO uses a pole-mount design supporting poles with an outer diameter of 25 to 76.2 mm. The enclosure combines aluminum alloy and UV-stabilized polycarbonate, while the mount uses stainless steel. The unit is IPX6 rated and designed for outdoor operation from -40°C to 60°C.
Key Features
- 60 GHz Wave Technology with up to 5.4 Gbps total throughput
- 46 dBi integrated 60 GHz antenna gain
- Long-distance PtP range of up to 15 km
- 10G SFP+ plus two 2.5 GbE RJ45 networking ports
- Integrated 5 GHz Wi-Fi 6 backup radio with 22 dBi antenna gain
Applications
- Long-distance point-to-point wireless bridges
- Point-to-multipoint station connections
- High-capacity fixed wireless network links
- ISP and outdoor broadband infrastructure
- Wireless connectivity between geographically separated network sites
DC Supplies Product Note
The WAVE-PRO supports passive PoE and accepts 44–54V DC or 22–27V DC depending on the supported PoE configuration. Ubiquiti lists a 48V DC, 0.65A 2.5 GbE PoE adapter as included.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | WAVE-PRO |
| Product Type | 60 GHz Wireless Radio |
| Product Family | UISP Wave |
| Operating Modes | PtP, PtMP Station |
| Primary Radio Frequency | 57–71 GHz |
| Primary Channel Bandwidth | 2160, 1080, 540 MHz |
| Primary Modulation | 16QAM, QPSK |
| Primary Antenna Gain | 46 dBi |
| Primary Polarization | Vertically-Linear |
| Primary Beamwidth | 1.3° Azimuth / 1.3° Elevation |
| 5 GHz Backup Standard | 802.11ax (Wi-Fi 6) |
| 5 GHz Backup Frequency | 5150–5875 MHz, region dependent |
| 5 GHz Channel Bandwidth | 20, 40, 80 MHz |
| 5 GHz Antenna Gain | 22 dBi |
| Total Throughput | 5.4 Gbps |
| Maximum PtP Range | Up to 15 km |
| Maximum PtMP Range | Up to 8 km with Wave AP |
| Networking Interfaces | 2 × 2.5 GbE RJ45, 1 × 10G SFP+ |
| Network Mode | Bridge / Router |
| Management | UISP |
| GPS | Integrated |
| Power Method | Passive PoE |
| Supported Voltage | 44–54V DC; 22–27V DC |
| Maximum Power Consumption | 26W |
| Power Supply | 48V DC, 0.65A 2.5 GbE PoE adapter |
| Weatherproofing | IPX6 |
| Mounting | Pole Mount |
| Supported Pole Diameter | 25–76.2 mm |
| Dimensions | Ø424.4 × 166.2 mm |
| Weight Without Mount | 2.8 kg |
| Weight With Mount | 4 kg |
| Operating Temperature | -40°C to 60°C |
| Operating Humidity | 5–95% non-condensing |
| Enclosure Material | Aluminum alloy, UV-stabilized polycarbonate |
| Mount Material | Stainless steel |
| Encryption | WPA2-PSK (AES) |
| UISP Requirement | UISP Version 2.3.0 or later |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE |
FAQs
What is the Ubiquiti WAVE-PRO?
The WAVE-PRO is a UISP Wave 60 GHz radio designed for long-distance point-to-point and point-to-multipoint wireless links.
What throughput does the WAVE-PRO support?
Ubiquiti specifies total throughput of up to 5.4 Gbps.
What is the maximum range of the WAVE-PRO?
Ubiquiti specifies up to 15 km for PtP links. For PtMP operation, the maximum range is up to 8 km when connected to a Wave AP, subject to deployment conditions and paired equipment.
Does the WAVE-PRO include a backup radio?
Yes. It includes a 5 GHz 802.11ax Wi-Fi 6 backup radio with 22 dBi antenna gain.
What network ports does the WAVE-PRO provide?
The WAVE-PRO provides two 2.5 GbE RJ45 ports and one 10G SFP+ port.
How is the WAVE-PRO managed?
The device is managed through UISP and requires UISP version 2.3.0 or later.
