Detailed Specifications

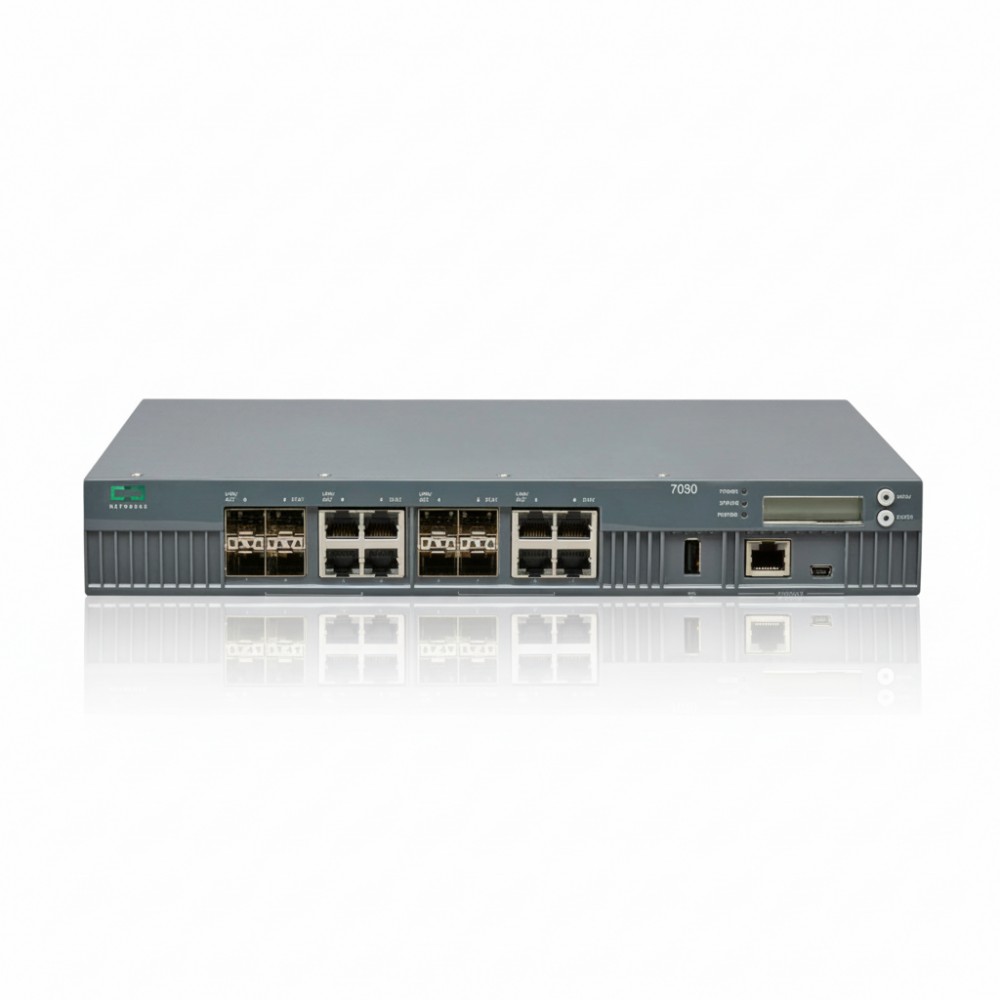

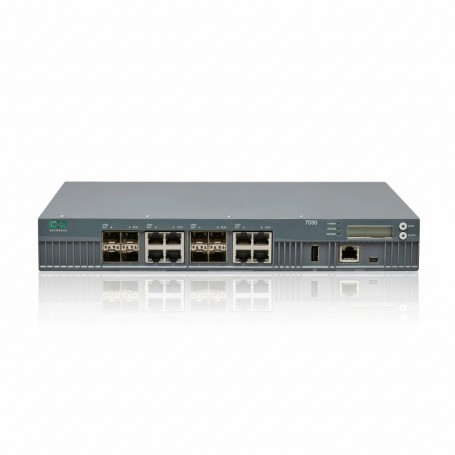

HPE JW711A - Aruba 7030 Series Wireless LAN Controller
Overview
The HPE JW711A (Aruba 7030) is a rack-mount wireless LAN controller made for branch offices or mid-sized campus sites that need to manage both wired and wireless access in one box. It supports up to 64 access points and up to 4,000 concurrent users, delivering up to 8 Gbps of firewall or bridging throughput. It fits into environments where you're consolidating wired and Wi-Fi policy enforcement, VPN tunnels and user segmentation under one platform. Compatible with the ArubaOS ecosystem and integrates into existing wired/WLAN architectures.
Key Features
Supports up to 64 access points and around 4,000 clients × appropriate for larger branch or smaller campus wings.
Up to 8 Gbps of policy enforcement firewall or wired-bridged throughput, enabling deep inspection and user segmentation.
Eight network ports (RJ-45 Gigabit) provide flexible uplink and LAN connectivity options.
FIPS/TAA compliant version (US variant) for government or secure deployments.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE |
| Part Number | JW711A |
| Product Type | Wireless LAN Controller |
| Max Access Points | 64 APs |
| Max Concurrent Users | 4,096 |
| Firewall Throughput | 8 Gbps |
| Management Interface | Web GUI / CLI / out-of-band (as part of ArubaOS) |
| Network Ports | 8 × 10/100/1000 BASE-T RJ-45 |
| Power Requirements | Internal power supply, AC input (see datasheet) |
| Dimensions & Weight | 1.7″ H × 12″ W × 8.3″ D (~4.54 kg) approx. |
| Warranty | Limited 1 year hardware warranty |
