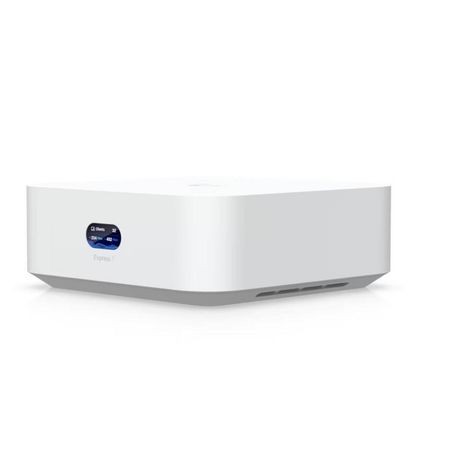

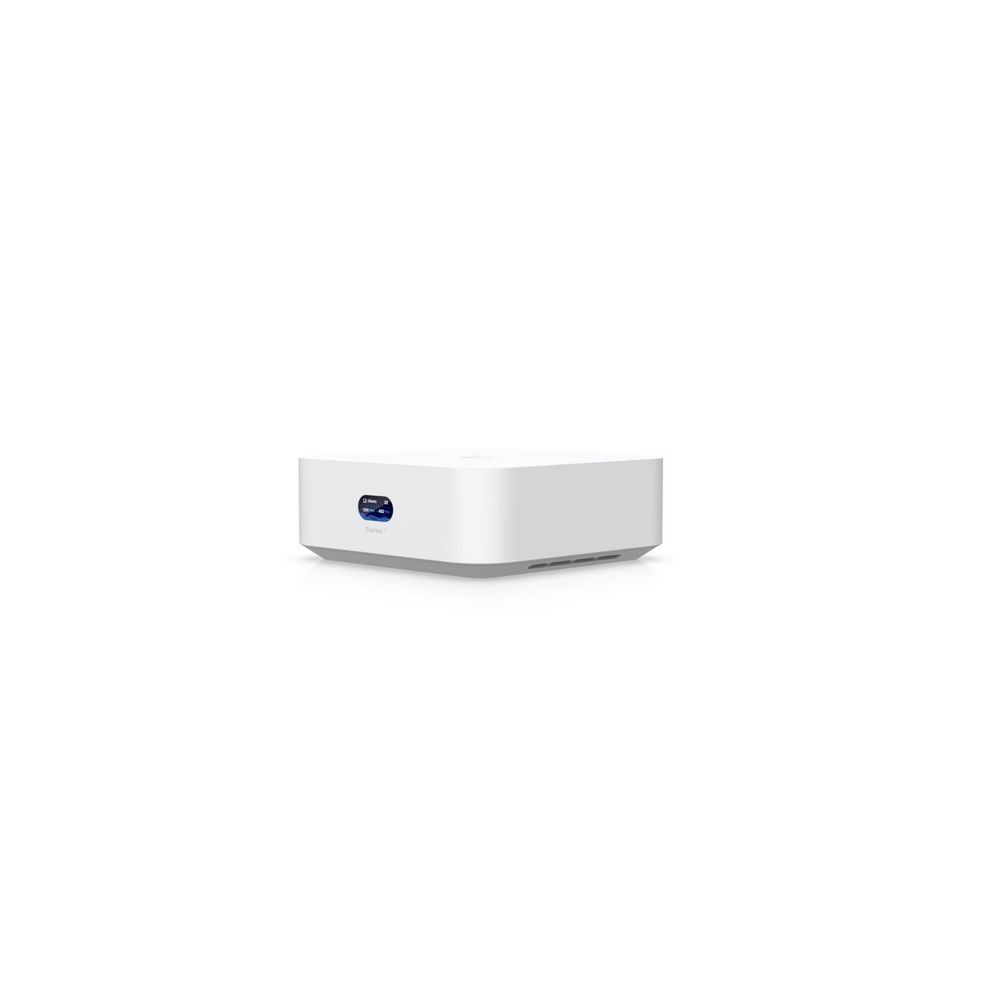

The Ubiquiti UX7 UniFi Express 7 is a compact UniFi Cloud Gateway combining routing, security, network management, and integrated WiFi 7 in a desktop form factor. It provides a 10GbE RJ45 WAN interface, 2.5GbE LAN connectivity, and tri-radio 2.4 GHz, 5 GHz, and 6 GHz wireless networking.
Gateway and Network Connectivity
The UX7 provides one 10GbE RJ45 port supporting 10/5/2.5/1GbE and one 2.5GbE RJ45 port supporting 2.5/1GbE/100/10Mbps. It supports more than 30 managed UniFi devices and more than 300 simultaneous connected users.
WiFi 7
Integrated WiFi supports 802.11a/b/g/n/ac/ax/be, including WiFi 6, WiFi 6E, and WiFi 7. The three radios provide 2x2 MU-MIMO on 2.4 GHz, 5 GHz, and 6 GHz. Maximum specified wireless throughput is 688 Mbps on 2.4 GHz, 4.3 Gbps on 5 GHz, and 5.7 Gbps on 6 GHz.
Security and Routing
The UX7 provides stateful and application-aware Layer 7 firewall capabilities, DPI and traffic identification, zone-based firewall filtering, content filtering, VLAN/subnet traffic segmentation, and intrusion prevention/detection. Ubiquiti specifies up to 2.3 Gbps IDS/IPS throughput.
VPN and SD-WAN
Networking features include license-free SD-WAN, Site Magic site-to-site VPN, IPsec, OpenVPN, WireGuard, Teleport, policy-based WAN and VPN routing, and customizable DHCP services. OSPF, mDNS, advanced QoS, advanced NAT, and integrated RADIUS are also supported.
Hardware
The UX7 uses a quad-core ARM Cortex-A53 processor running at 1.5 GHz and 3 GB of system memory. A 0.96-inch status display provides local device information, while Ethernet and Bluetooth are available for management and setup.
Key Features
- 10GbE RJ45 WAN and 2.5GbE RJ45 LAN connectivity
- Integrated tri-radio WiFi 7 with 6 GHz support
- Up to 2.3 Gbps IDS/IPS throughput
- Site-to-site VPN, WireGuard, OpenVPN, and Teleport support
- Compact desktop form factor with mesh-capable WiFi
Applications
The UX7 is suited to residential networks, small offices, branch locations, compact business deployments, and whole-home UniFi installations requiring an integrated gateway and high-speed WiFi platform.
DC Supplies Product Note
The UX7 can operate as a UniFi gateway or extend an existing UniFi deployment as a mesh-scalable access point, providing flexibility when network topology changes.
Specifications
| Brand | Ubiquiti |
| Part Number / MPN | UX7 |
| Product Type | 10G Cloud Gateway with Integrated WiFi 7 |
| Series | UniFi Express 7 |
| Form Factor | Compact desktop |
| Managed UniFi Devices | 30+ |
| Simultaneous Users | 300+ |
| WAN Port | 1 × 10GbE RJ45, 10/5/2.5/1GbE |
| LAN Port | 1 × 2.5GbE RJ45, 2.5/1GbE/100/10Mbps |
| IDS/IPS Throughput | 2.3 Gbps |
| WiFi Standard | 802.11a/b/g/n/ac/ax/be |
| WiFi Generation | WiFi 6 / WiFi 6E / WiFi 7 |
| 2.4 GHz Throughput | 688 Mbps |
| 5 GHz Throughput | 4.3 Gbps |
| 6 GHz Throughput | 5.7 Gbps |
| MIMO | 2×2 DL/UL MU-MIMO on 2.4/5/6 GHz |
| Antenna Gain | 4 dBi at 2.4 GHz; 7 dBi at 5 GHz; 6 dBi at 6 GHz |
| Max. TX Power | 23 dBm at 2.4 GHz; 26 dBm at 5 GHz; 24 dBm at 6 GHz |
| Processor | Quad-core ARM Cortex-A53, 1.5 GHz |
| System Memory | 3 GB |
| Power Method | USB Type-C, 5V DC/5A |
| Maximum Power Consumption | 22W |
| Security | Stateful firewall, Layer 7 firewall, DPI, IDS/IPS, content filtering |
| VPN | Site Magic, IPsec, OpenVPN, WireGuard, Teleport |
| Dynamic Routing | OSPF |
| Management | Ethernet, Bluetooth |
| Display | 0.96-inch status display |
| Enclosure Material | Polycarbonate |
| Operating Temperature | -10 to 40°C |
| Operating Humidity | 5–95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel |
FAQs
What is the Ubiquiti UX7?
The UX7 is a compact UniFi Cloud Gateway with an integrated WiFi 7 access point, 10GbE WAN, 2.5GbE LAN, routing, firewall, VPN, and UniFi Network management capabilities.
Does the UX7 support WiFi 7?
Yes. The integrated wireless system supports 802.11be WiFi 7 as well as WiFi 6, WiFi 6E, WiFi 5, and earlier supported standards.
What Ethernet ports does the UX7 have?
It has one 10GbE RJ45 port and one 2.5GbE RJ45 port. The 10GbE port can also operate at 5GbE, 2.5GbE, 1GbE, and 100/10Mbps.
How much IDS/IPS throughput does it support?
Ubiquiti specifies up to 2.3 Gbps of IDS/IPS throughput.
Can the UX7 be used as an access point?
Yes. The UX7 can operate as a gateway or extend an existing UniFi deployment as a mesh-scalable access point.
How is the UX7 powered?
The UX7 uses USB Type-C power at 5V DC/5A. The power adapter is included.
