Overview

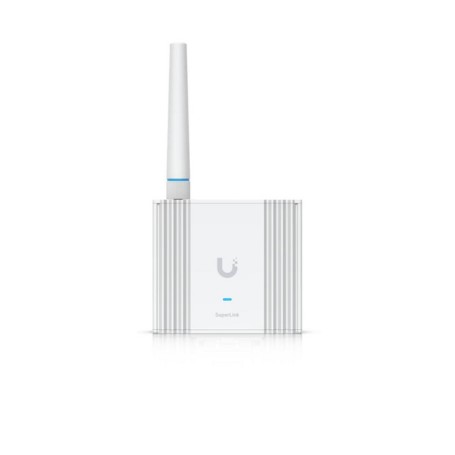

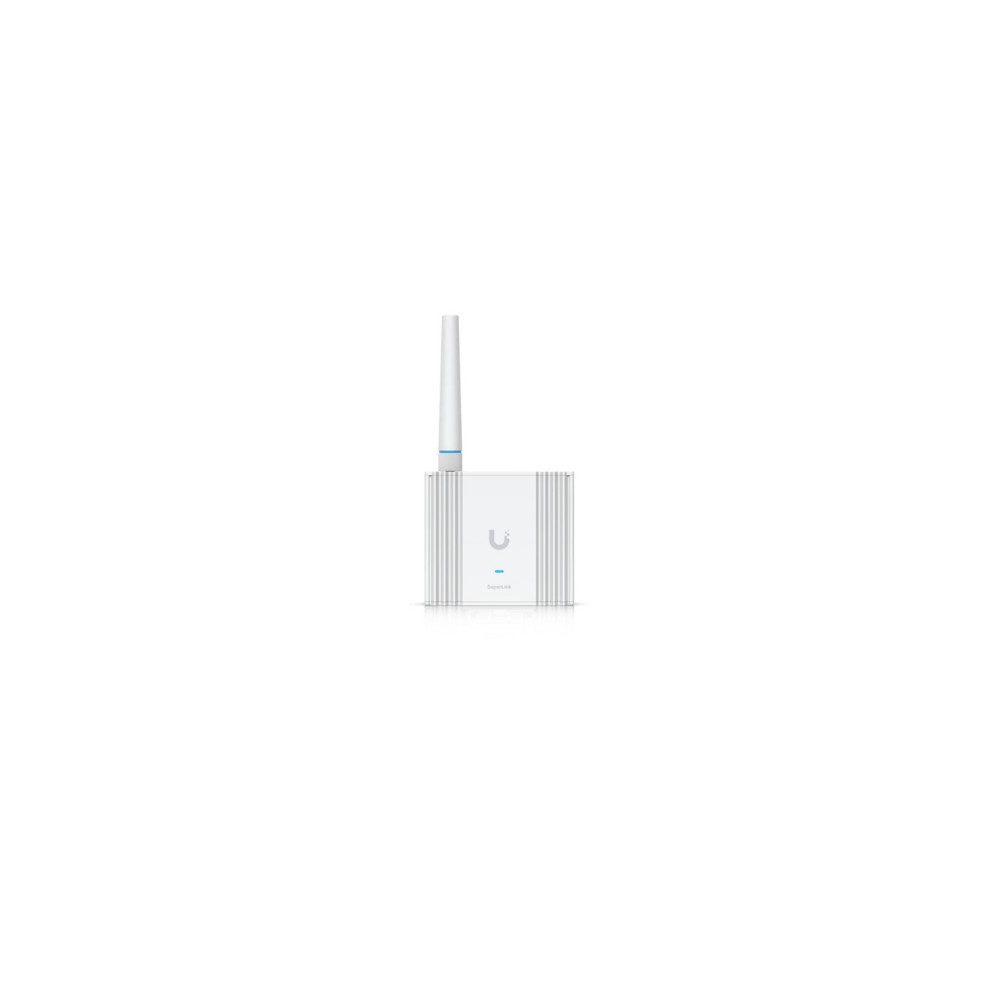

The Ubiquiti USL-Gateway is a SuperLink Gateway designed to connect UniFi Protect Sensors over Ubiquiti's proprietary long-range wireless SuperLink technology. It provides a wired Ethernet connection to the UniFi Protect environment while extending wireless sensor connectivity over distances of up to 2 km (1.2 mi) under the manufacturer's stated maximum range.
Technical Information
The gateway provides one 10/100 MbE RJ45 networking interface and supports Bluetooth 5.2 alongside proprietary SuperLink connectivity. Ubiquiti specifies a maximum SuperLink client count of 96 and a maximum Bluetooth client count of 7. The device supports PoE as its primary power method, with optional USB Type-C power at 5V, 1A.
Connectivity and Coverage
SuperLink operates in region-specific frequency ranges. Ubiquiti lists 915.6–927.6 MHz for the US, 865.1–869.5 MHz for the EU, and 920.5–922.3 MHz for Japan. Maximum stated range is up to 2 km (1.2 mi) for SuperLink and up to 100 m (328 ft) for Bluetooth.
Mounting
The USL-Gateway supports wall and DIN rail mounting. Its dimensions vary according to the mounting configuration: 159.3 x 81.9 x 26 mm with antenna, 159.3 x 81.9 x 38.5 mm with DIN rail mount, and 159.3 x 81.9 x 30.5 mm with wall mount.
Key Features
- Proprietary SuperLink wireless connectivity for UniFi Protect Sensors
- SuperLink range of up to 2 km (1.2 mi) as specified by Ubiquiti
- 10/100 MbE RJ45 networking interface
- Bluetooth 5.2 connectivity with up to 7 Bluetooth clients
- Wall and DIN rail mounting support
Applications
The USL-Gateway is intended for UniFi Protect installations that use compatible Protect Sensors and require a dedicated wireless gateway between sensors and the UniFi Protect environment. Its wall and DIN rail mounting options support different installation locations within a security deployment.
DC Supplies Product Note
For deployment planning, verify the regional SuperLink frequency specification and the available PoE infrastructure before installation, as Ubiquiti documents different SuperLink frequency ranges for the US, EU, and Japan.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | USL-Gateway |
| Product Type | SuperLink Wireless Gateway |
| UniFi Application Suite | Protect |
| Networking Interface | 1 x 10/100 MbE RJ45 |
| Wireless Connectivity | Bluetooth 5.2; proprietary SuperLink |
| Bluetooth Frequency | 2400–2480 MHz |
| SuperLink Frequency | US: 915.6–927.6 MHz; EU: 865.1–869.5 MHz; JP: 920.5–922.3 MHz |
| Bluetooth Maximum Range | Up to 100 m (328 ft) |
| SuperLink Maximum Range | Up to 2 km (1.2 mi) |
| Maximum Bluetooth Client Count | 7 |
| Maximum SuperLink Client Count | 96 |
| Bluetooth Antenna Gain | 3 dBi |
| SuperLink Antenna Gain | 2 dBi |
| Bluetooth Maximum TX Power | 10 dBm |
| SuperLink Maximum TX Power | 27 dBm |
| Power Method | PoE; USB Type-C, 5V, 1A optional |
| Maximum Power Consumption | 3.4W |
| Antenna Connector | 1 x RP-SMA female |
| Mounting | Wall and DIN rail |
| Weight | 179 g (6.3 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
| Web Application | UniFi Protect |
| Mobile App | UniFi Protect for iOS and Android |
Frequently Asked Questions
What is the Ubiquiti USL-Gateway used for?
The USL-Gateway provides wireless SuperLink connectivity for compatible UniFi Protect Sensors and connects to the UniFi Protect environment through its wired Ethernet interface.
How far can SuperLink reach?
Ubiquiti specifies a maximum SuperLink range of up to 2 km (1.2 mi). Actual coverage can vary with installation conditions and the surrounding environment.
Does the USL-Gateway support Ethernet?
Yes. The gateway has one 10/100 MbE RJ45 networking port.
How is the USL-Gateway powered?
The primary power method is PoE. Ubiquiti also specifies optional USB Type-C power at 5V, 1A.
Can the USL-Gateway be mounted on a DIN rail?
Yes. Ubiquiti specifies both wall and DIN rail mounting support.
Which software is required?
The USL-Gateway is designed for the UniFi Protect application environment and is supported through the UniFi Protect web application and mobile apps for iOS and Android.
