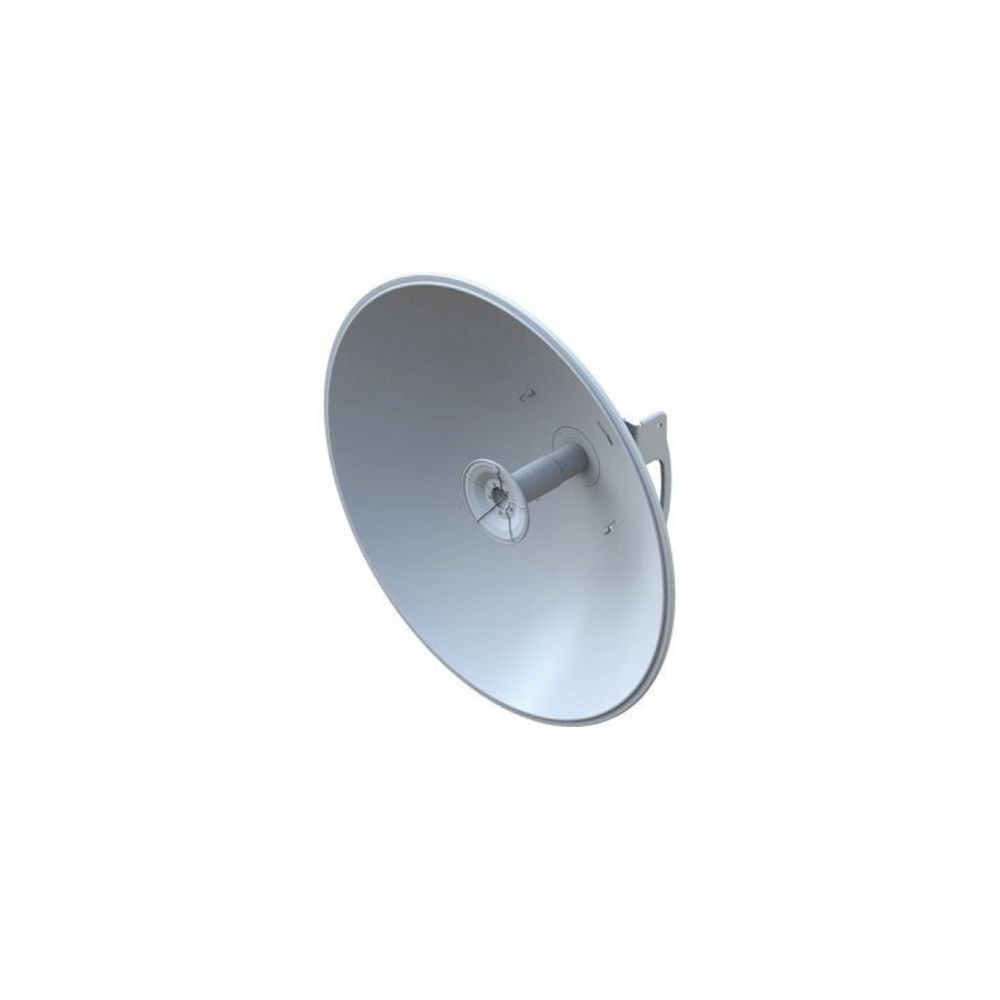

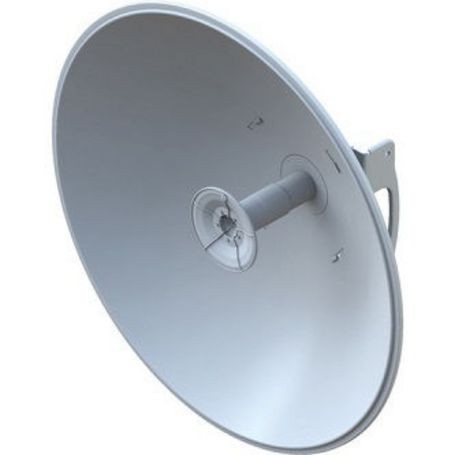

Ubiquiti AF60-XR RB – airFiber 60 XR 60GHz Long-Range PtP Bridge
Overview
The Ubiquiti AF60-XR RB is the rebox variant of the airFiber 60 Xtreme-Range, a multi-gigabit 60 GHz point-to-point wireless bridge designed for long-distance network links. The system combines a 60 GHz primary radio with a 5 GHz backup radio and supports a maximum total throughput of 5.4 Gbps.
The AF60-XR is designed for point-to-point operation and supports links of 15+ km under appropriate deployment conditions. Network connectivity includes one Gigabit Ethernet RJ45 port and one 1/10G SFP+ port, providing copper and fiber-capable network interfaces at the radio.
Technical Information
The primary radio operates across 57–71 GHz, subject to regional regulatory requirements, with channel bandwidths of 2160, 1080, and 540 MHz. The 60 GHz radio uses 16QAM, BPSK, and QPSK modulation with vertically linear polarization.
A 5 GHz backup radio provides additional link redundancy and operates across region-dependent U-NII frequency ranges. It supports 20, 40, and 80 MHz channel bandwidths, modulation up to 256QAM, and a 26 dBi antenna gain.
The system uses passive PoE and has a maximum power consumption of 24W. A 48V DC, 0.65A Gigabit PoE adapter is specified with the AF60-XR platform.
Compatibility
AF60-XR RB is intended for Ubiquiti UISP airFiber point-to-point deployments. Both ends of a point-to-point link should use compatible AF60-XR equipment and firmware. The device operates in PtP mode and is managed through UISP.
The integrated 1/10G SFP+ interface supports network architectures requiring a higher-speed wired connection to the wireless bridge. Regulatory operating frequencies and available channels vary by deployment region.
Key Features
- 60 GHz point-to-point wireless bridge with 5.4 Gbps maximum total throughput
- 15+ km maximum specified range
- Integrated 5 GHz backup radio for link redundancy
- 1/10G SFP+ and Gigabit Ethernet RJ45 network interfaces
- IPX6 weatherproofing with precision alignment mounting system
Applications
- Long-distance point-to-point wireless backhaul
- Multi-gigabit building-to-building network links
- Enterprise and service-provider wireless infrastructure
- Remote site network connectivity
- 60 GHz primary links requiring 5 GHz backup connectivity
DC Supplies Product Note
AF60-XR RB identifies a rebox version of the AF60-XR platform. The RB designation should be retained when ordering because it identifies the specific rebox SKU, while the underlying radio platform remains the airFiber 60 Xtreme-Range.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | AF60-XR RB |
| Product Type | 60 GHz Point-to-Point Wireless Bridge |
| Product Family | airFiber 60 Xtreme-Range |
| Operating Mode | PtP only |
| Maximum Total Throughput | 5.4 Gbps |
| Maximum Range | 15+ km |
| Primary Radio Frequency | 57–71 GHz |
| Primary Channel Bandwidth | 2160, 1080, 540 MHz |
| Primary Modulation | 16QAM, BPSK, QPSK |
| Backup Radio Frequency | 5 GHz; region dependent |
| Backup Channel Bandwidth | 20, 40, 80 MHz |
| Backup Antenna Gain | 26 dBi |
| Networking Interfaces | 1 × GbE RJ45; 1 × 1/10G SFP+ |
| Power Method | Passive PoE |
| Maximum Power Consumption | 24 W |
| Supported Voltage Range | 44–54V DC; 22–27V DC |
| GPS | Yes |
| Weatherproofing | IPX6 |
| Operating Temperature | -40 to 55°C |
| Operating Humidity | 5–95% noncondensing |
| Dimensions | 779 × 664 × 383 mm |
| Weight | 8.6 kg without mount; 13 kg with mount |
| Pole Compatibility | 40–80 mm outer diameter |
| Management | UISP |
| Encryption | WPA2-PSK (AES) |
| NDAA Compliant | Yes |
FAQs
What is the Ubiquiti AF60-XR RB?
AF60-XR RB is the rebox SKU for the Ubiquiti airFiber 60 Xtreme-Range 60 GHz point-to-point wireless bridge.
What throughput does the AF60-XR support?
The AF60-XR platform specifies a maximum total throughput of 5.4 Gbps.
What is the maximum range?
Ubiquiti specifies a maximum range of 15+ km for the AF60-XR platform.
Does the AF60-XR have a backup radio?
Yes. The system includes an integrated 5 GHz backup radio in addition to its primary 60 GHz radio.
What network ports are available?
The device provides one Gigabit Ethernet RJ45 port and one 1/10G SFP+ port.
How is the AF60-XR powered?
The device uses passive PoE and has a maximum power consumption of 24W. The AF60-XR platform specifies a 48V DC, 0.65A Gigabit PoE adapter.
