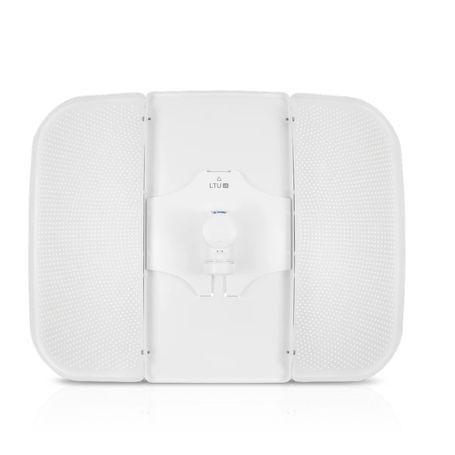

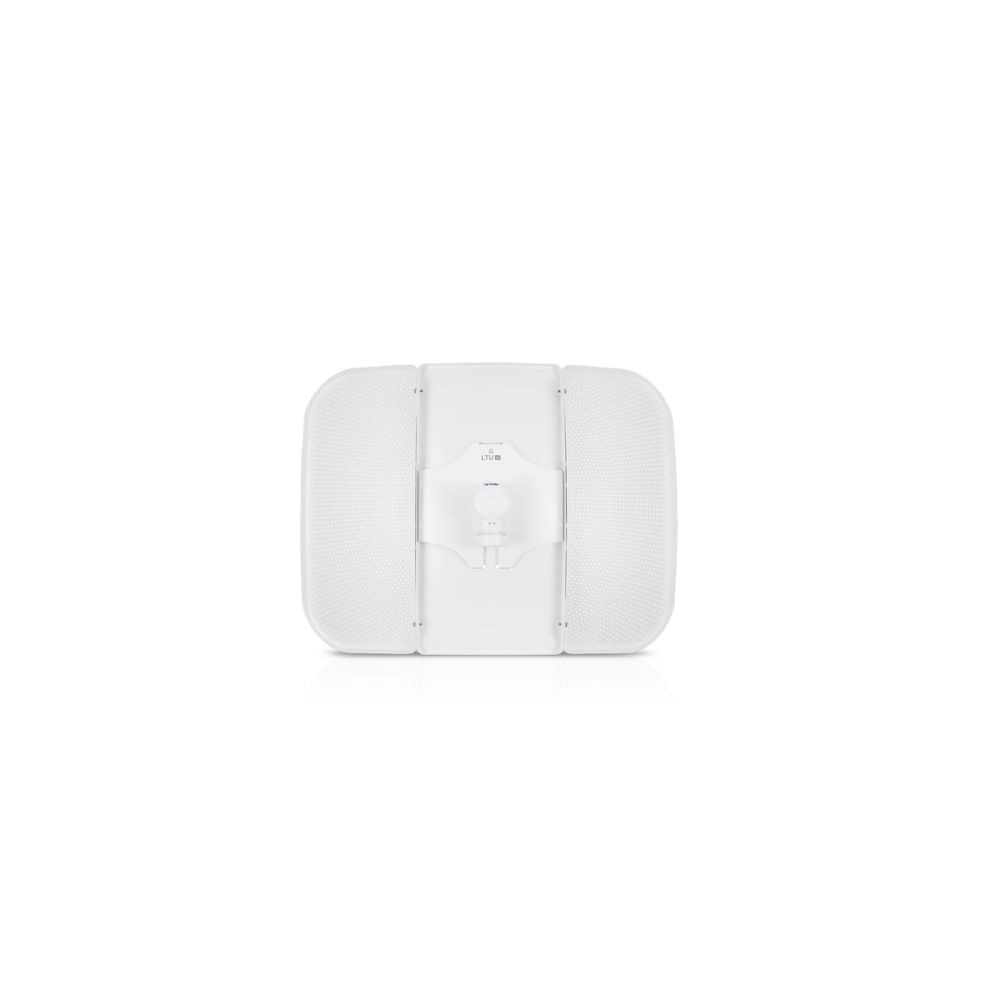

The Ubiquiti LTU-LR is a 5 GHz long-range LTU client designed for point-to-multipoint wireless deployments with the LTU-Rocket as the base station. It combines a 26 dBi antenna with LTU technology, Gigabit Ethernet, passive PoE, and an outdoor-rated enclosure for long-distance fixed wireless connectivity.
Wireless Performance
The LTU-LR operates across the 5 GHz LTU band and provides up to 900+ Mbps maximum throughput with supported firmware. Its 26 dBi antenna gain and up to 22 dBm conducted transmit power support long-range wireless links while flexible channel configurations allow deployment across 10, 20, 30, 40, 50, and up to 100 MHz channel widths.
Network and Power
A single Gigabit Ethernet RJ45 interface provides the wired network connection. The LTU-LR uses 24V passive PoE over two pairs and includes a 24V, 0.5A Gigabit PoE adapter. The supported DC input range is 22–26V, with maximum power consumption of 8.5W.
Deployment and Management
The LTU-LR is designed primarily as a PtMP CPE and can also operate in PtP mode with supported firmware. Bluetooth management enables setup through the UISP mobile application, while web-based management and network utilities support configuration, alignment, diagnostics, and monitoring.
Outdoor Construction
The enclosure uses UV-stabilized polycarbonate and is designed for outdoor pole mounting. The unit has IPX6 weatherproofing, 200 km/h wind survivability, and ±24 kV air/contact ESD and EMP protection. It operates from -40°C to 60°C with 5–95% non-condensing humidity.
Key Features
- 26 dBi 5 GHz antenna gain
- 900+ Mbps maximum throughput with supported firmware
- Gigabit Ethernet RJ45 interface
- 24V passive PoE with included Gigabit PoE adapter
- IPX6 outdoor protection and 200 km/h wind survivability
Applications
The LTU-LR is suited to fixed wireless broadband access, ISP customer-premises deployments, rural connectivity, enterprise wireless links, and long-range PtMP networks using an LTU-Rocket base station.
DC Supplies Product Note
The LTU-LR is a client-side LTU radio rather than a standalone Wi-Fi access point. Deployment requires an appropriate LTU base station or compatible wireless architecture and a clear radio path between endpoints.
Specifications
| Brand | Ubiquiti |
| Part Number / MPN | LTU-LR |
| Product Type | 5 GHz LTU Long-Range Wireless CPE |
| Product Family | UISP LTU |
| Operating Frequency | 4800–6200 MHz, regulatory dependent |
| US/Canada Frequency Bands | 5150–5250, 5250–5350, 5470–5725, 5725–5850 MHz |
| Antenna Gain | 26 dBi |
| Maximum Conducted TX Power | 22 dBm |
| Maximum Throughput | 900+ Mbps with firmware 2.3.0 or later |
| Channel Width | 10, 20, 30, 40, 50, up to 100 MHz |
| Wireless Modes | PtMP CPE, PtP |
| Networking Interface | 1 × Gigabit Ethernet RJ45 |
| Power Method | 24V passive PoE, 2-pair |
| Power Supply | 24V, 0.5A Gigabit PoE adapter |
| Supported Voltage Range | 22–26V DC |
| Maximum Power Consumption | 8.5W |
| ESD/EMP Protection | ±24 kV air/contact |
| Mounting | Pole mount, kit included |
| Wind Survivability | 200 km/h |
| Weatherproofing | IPX6 |
| Operating Temperature | -40 to 60°C |
| Operating Humidity | 5–95% non-condensing |
| Enclosure Material | UV-stabilized polycarbonate |
| Management | UISP App Bluetooth management, web UI |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
FAQs
What is the Ubiquiti LTU-LR used for?
The LTU-LR is a long-range 5 GHz LTU client designed primarily for point-to-multipoint wireless networks and can also operate in supported point-to-point configurations.
What throughput does the LTU-LR support?
Ubiquiti specifies maximum throughput of 900+ Mbps with firmware version 2.3.0 and later.
What antenna gain does the LTU-LR provide?
The LTU-LR provides 26 dBi antenna gain at 5 GHz.
How is the LTU-LR powered?
It uses 24V passive PoE over two Ethernet pairs and is supplied with a 24V, 0.5A Gigabit PoE adapter.
Can the LTU-LR be used outdoors?
Yes. The unit has an IPX6 rating, UV-stabilized polycarbonate construction, 200 km/h wind survivability, and an operating temperature range of -40°C to 60°C.
