Overview

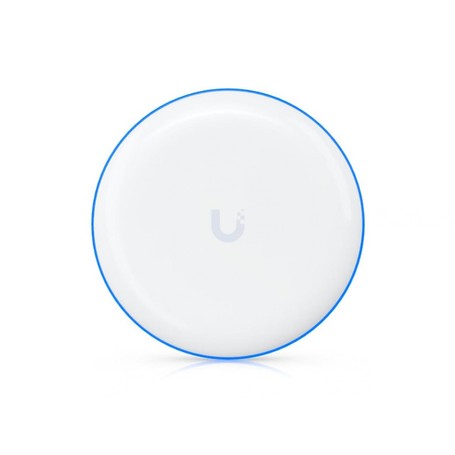

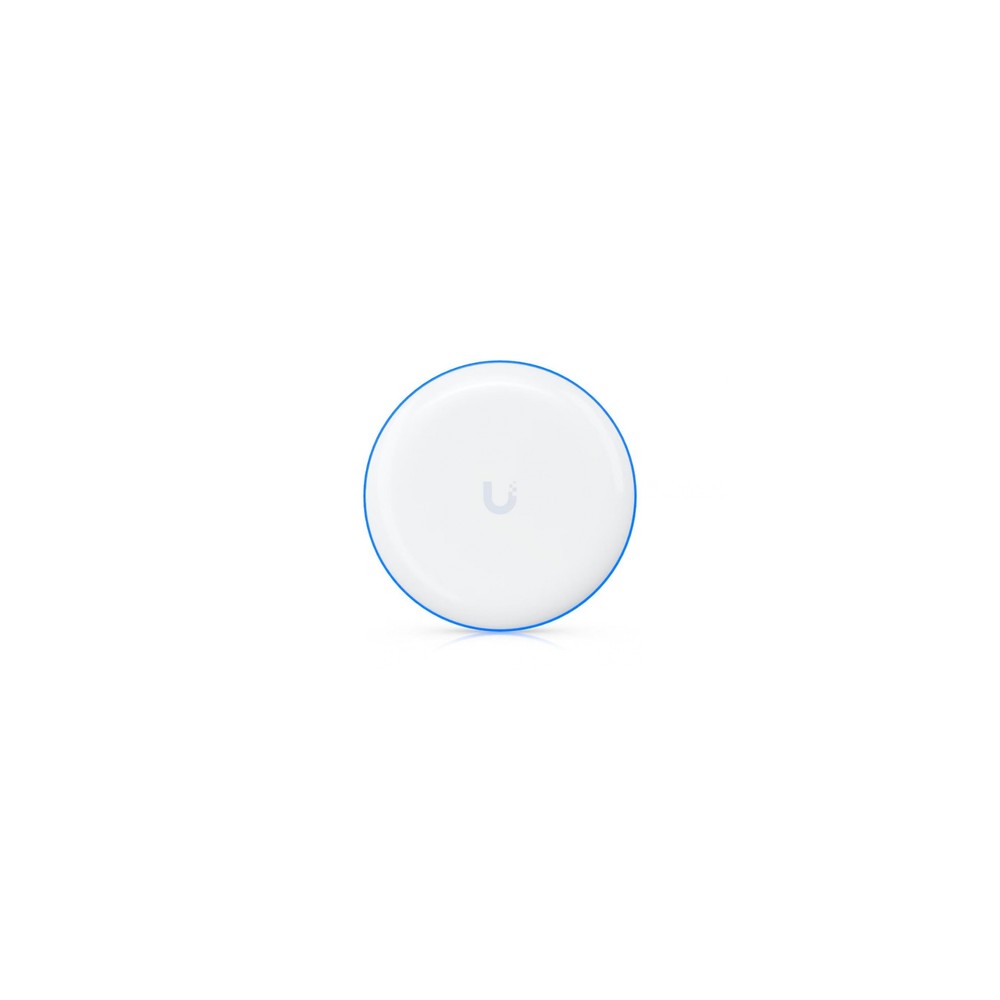

UBB-SINGLE-US is a 60GHz wireless point-to-point bridge designed to provide high-speed network connectivity between buildings or separated locations. It combines a high-capacity 60GHz main radio with a 5GHz backup radio and a Gigabit Ethernet interface for building-to-building network links.
Wireless Connectivity
The main 60GHz radio supports up to 1.7 Gbps data rates and uses a highly directional 17.2 dBi antenna. The integrated 5GHz backup radio provides an alternative wireless connection when the primary 60GHz link is interrupted or affected by environmental conditions.
Network and Management
The bridge provides one Gigabit Ethernet RJ45 port and can be managed through a UniFi Console, Official UniFi Hosting, or a self-hosted UniFi Network Server. Bluetooth is also available for management.
Single-Unit Configuration
UBB-SINGLE-US is supplied as a single Building Bridge unit and is intended for replacement or spare applications. The 2-pack version contains two units paired out of the box, while the single-unit version includes one PoE adapter.
Outdoor Installation
The UBB uses a UV-resistant polycarbonate enclosure and supports wall and pole mounting. Its IPX6 weatherproofing and operating temperature range of -40°C to 70°C support outdoor deployment in demanding environments.
Key Features
- 60GHz point-to-point wireless connectivity
- 5GHz backup radio for link redundancy
- Up to 1.7 Gbps data rate on the 60GHz radio
- Gigabit Ethernet RJ45 network interface
- IPX6 weatherproofing with wall and pole mounting support
Applications
UBB-SINGLE-US can be deployed for building-to-building network connections, campus links, remote network extensions, warehouse connectivity, and replacement of an existing UBB unit in a point-to-point installation.
DC Supplies Product Note
This product is a single Building Bridge unit rather than a complete two-unit bridge pair. For a new point-to-point link, a compatible bridge must also be installed at the opposite location. One PoE adapter is included with the single-unit configuration.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | UBB-SINGLE-US |
|---|
| Product Type | 60GHz Wireless Point-to-Point Bridge |
|---|
| Wireless Standard | WiFi 5 |
|---|
| Operating Mode | Point-to-Point (PtP) |
|---|
| 60GHz Maximum Data Rate | 1.7 Gbps |
|---|
| 5GHz Maximum Data Rate | 866.6 Mbps |
|---|
| 60GHz Antenna Gain | 17.2 dBi |
|---|
| 5GHz Antenna Gain | 10 dBi |
|---|
| Networking Interface | 1 × GbE RJ45 |
|---|
| Power Method | PoE |
|---|
| Supported Voltage Range | 44–57V DC |
|---|
| Maximum Power Consumption | 11W |
|---|
| Weatherproofing | IPX6 |
|---|
| Enclosure Material | UV-resistant polycarbonate |
|---|
| Mounting | Wall, pole |
|---|
| Dimensions | Ø140 × 90 mm |
|---|
| Weight | 376 g |
|---|
| Operating Temperature | -40°C to 70°C |
|---|
| Operating Humidity | 5–95% non-condensing |
|---|
| Management | Ethernet, Bluetooth |
|---|
| NDAA Compliant | Yes |
|---|
| Certifications | CE, FCC, IC |
|---|
FAQs
Is UBB-SINGLE-US a complete bridge pair?
No. It is a single Building Bridge unit. A second compatible unit is required for a complete point-to-point link.
What is the main wireless frequency?
The primary wireless connection operates in the 60GHz band, with a 5GHz radio available as backup.
What Ethernet interface does the UBB provide?
It provides one Gigabit Ethernet RJ45 port.
Does the single unit include a PoE adapter?
Yes. Ubiquiti specifies one PoE power adapter with the single-unit configuration.
Can the UBB be installed outdoors?
Yes. It has an IPX6-rated enclosure, UV-resistant polycarbonate construction, and an operating temperature range of -40°C to 70°C.
