Overview

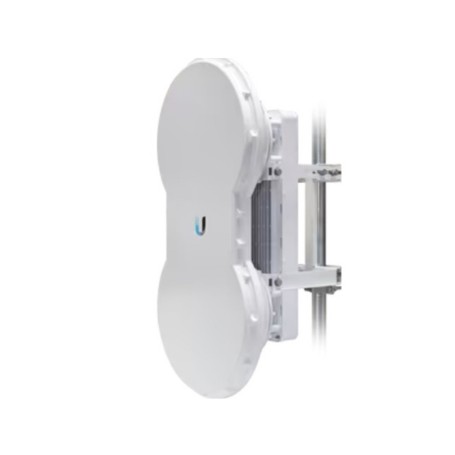

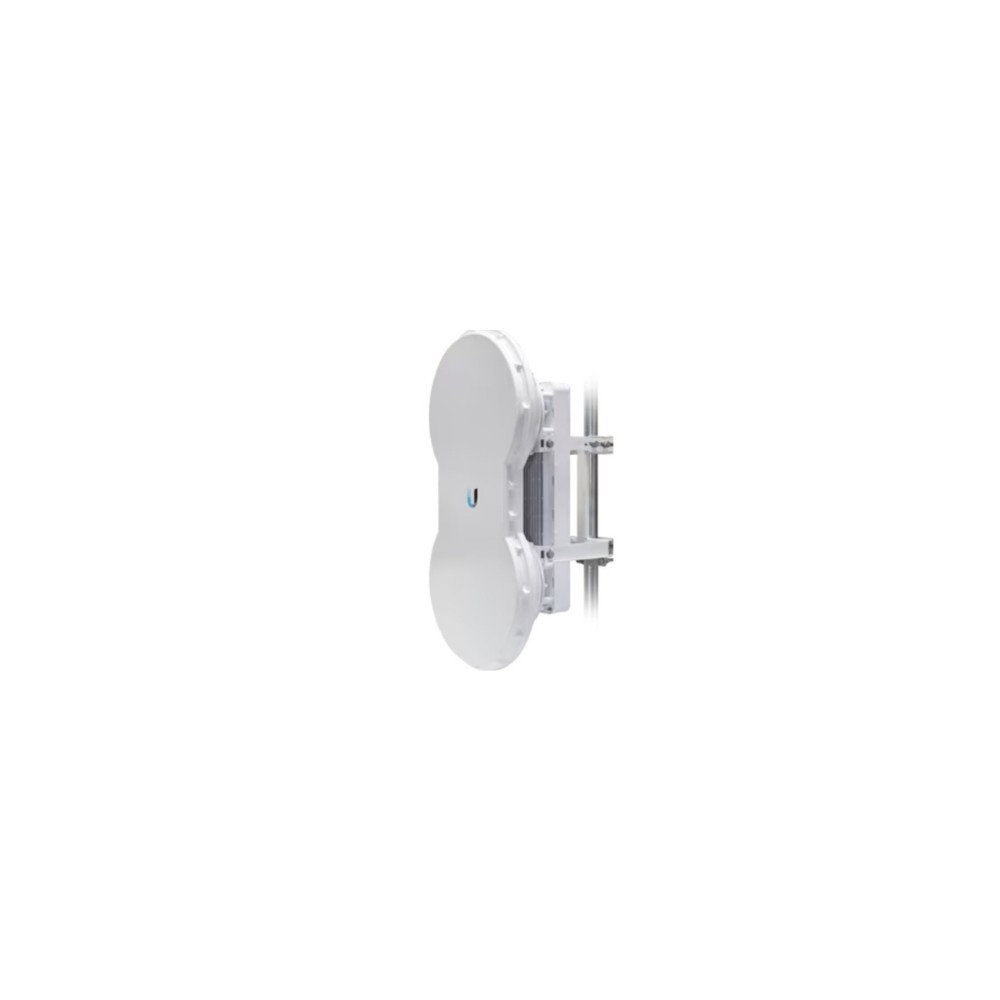

The Ubiquiti AF-5U is an airFiber 5 High-Band wireless point-to-point bridge designed for long-distance network backhaul. It operates in the 5.7–6.2 GHz high-band spectrum and provides 1.2+ Gbps maximum throughput, 100+ km maximum range, and GPS-based radio frame synchronization. The AF-5U also incorporates filtering intended to support co-location with equipment operating in lower 5 GHz bands.
Wireless Performance
The AF-5U supports regional operating ranges from 5725–5850 MHz under FCC/IC requirements, 5725–5875 MHz under ETSI requirements, and up to 5725–6200 MHz in other regions. Channel bandwidths of 10, 20, 30, 40, and 50 MHz are supported, with modulation up to 1024QAM MIMO. The radio provides 23 dBi transmit and receive gain, a 6° beamwidth, dual-slant polarization, and greater than 28 dB cross-polarity isolation.
Key Features
- 1.2+ Gbps maximum throughput for point-to-point backhaul
- 100+ km maximum range, dependent on regulatory region
- High-band operation from 5725 MHz with regional support up to 6200 MHz
- GPS radio frame synchronization with programmable uplink/downlink ratio in Half Duplex mode
- 128-bit AES encryption and 1+ million packets-per-second processing
Interfaces and Power
The AF-5U provides one Gigabit Ethernet RJ45 data port, one 10/100 Mbps Ethernet management port, and an RJ-12 auxiliary alignment-tone port. It uses passive four-pair PoE with a supported voltage range of 42–58 V DC. A 50 V, 1.2 A Gigabit PoE adapter is included, and maximum power consumption is 40 W.
Mounting and Environmental Specifications
The pole-mount kit is included. The radio measures 938.4 × 468.4 × 281.4 mm and weighs 16 kg with the mount. Ubiquiti specifies wind survivability of 200 km/h and wind loading of 863 N at 200 km/h. The operating temperature range is -40°C to 55°C.
DC Supplies Product Note
The AF-5U is the high-band member of the airFiber 5 platform. Unlike the AF-5 mid-band model, the AF-5U is designed for the 5.7–6.2 GHz high-band spectrum. Frequency availability and permitted output power depend on the country and applicable regulatory requirements, so deployment should be configured for the local regulatory domain.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | AF-5U |
|---|
| Product Type | 5 GHz High-Band Point-to-Point Wireless Bridge |
|---|
| Product Family | airFiber 5 High-Band |
|---|
| Maximum Throughput | 1.2+ Gbps |
|---|
| Maximum Range | 100+ km, dependent on regulatory region |
|---|
| Operating Frequency | 5725–5850 MHz FCC/IC; 5725–5875 MHz ETSI; 5725–6200 MHz other regions |
|---|
| Channel Bandwidth | 10/20/30/40/50 MHz |
|---|
| Modulation | 1024QAM MIMO, 256QAM MIMO, 64QAM MIMO, 16QAM MIMO, QPSK MIMO, 1/2 Rate QPSK xRT, 1/4 Rate QPSK xRT |
|---|
| TX Gain | 23 dBi |
|---|
| RX Gain | 23 dBi |
|---|
| Beamwidth | 6° |
|---|
| Front-to-Back Ratio | 70 dB |
|---|
| Polarization | Dual-slant |
|---|
| Cross-Polarity Isolation | >28 dB |
|---|
| EIRP | Approximately 50 dBm, dependent on regulatory region and frequency band |
|---|
| Encryption | 128-bit AES |
|---|
| Packets per Second | 1+ million |
|---|
| Radio Frame Synchronization | GPS |
|---|
| Networking Interface | 1 × Gigabit Ethernet RJ45; 1 × 10/100 Mbps Ethernet RJ45 |
|---|
| Auxiliary Port | 1 × RJ-12 alignment-tone port |
|---|
| Power Method | Passive PoE, 4-pair |
|---|
| Supported Voltage | 42–58 V DC |
|---|
| Power Supply | 50 V, 1.2 A Gigabit PoE adapter included |
|---|
| Maximum Power Consumption | 40 W |
|---|
| Mounting | Pole mount kit included |
|---|
| Wind Survivability | 200 km/h |
|---|
| Wind Loading | 863 N at 200 km/h |
|---|
| Dimensions | 938.4 × 468.4 × 281.4 mm |
|---|
| Weight | 16 kg with mount |
|---|
| Operating Temperature | -40°C to 55°C |
|---|
| Certifications | CE, FCC, IC |
|---|
| NDAA Compliant | Yes |
|---|
