Overview

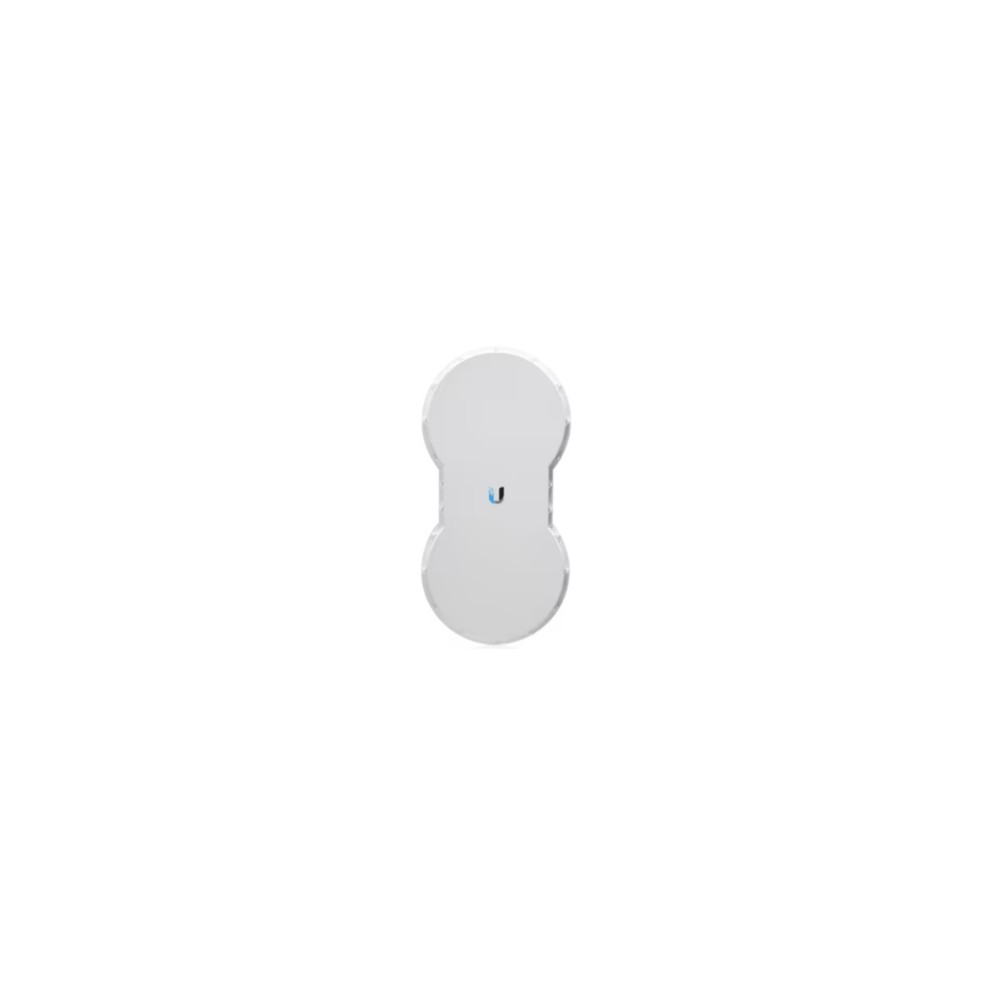

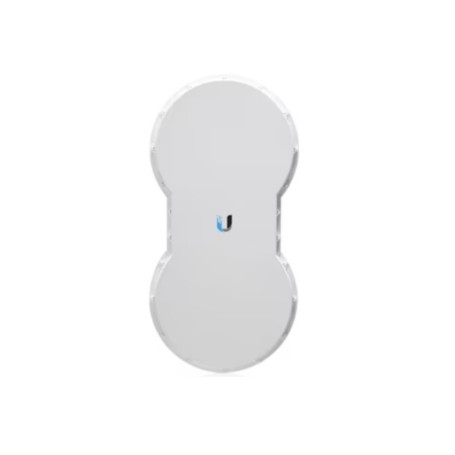

The Ubiquiti AF-5(US) is an airFiber 5 GHz Mid-Band wireless point-to-point bridge designed for long-distance network backhaul. It provides 1.2+ Gbps maximum throughput, 100+ km maximum range depending on regulatory region and frequency band, and GPS-based radio frame synchronization.
Wireless and Network Performance
The AF-5 operates in the 5 GHz mid-band with regional frequency ranges extending from 5470 MHz to 5950 MHz. It supports channel bandwidths from 10 MHz through 50 MHz and modulation modes up to 1024QAM MIMO. The integrated radio uses dual-slant polarization with 23 dBi transmit and receive gain and a 6° beamwidth.
Key Features
- 1.2+ Gbps maximum point-to-point throughput
- 100+ km maximum range, dependent on regulatory region and frequency band
- 10/20/30/40/50 MHz channel bandwidth support
- GPS synchronization for radio frame timing
- 128-bit AES encryption and dual-slant polarization
Interfaces and Power
The bridge provides one Gigabit Ethernet RJ45 port, one 10/100 Mbps Ethernet management port, and an RJ-12 auxiliary alignment-tone port. It uses passive PoE over four pairs and operates from 42–58 V DC. A 50 V, 1.2 A Gigabit PoE adapter is included, with maximum power consumption rated at 40 W.
Mounting and Deployment
The AF-5 includes a pole-mount kit and is rated for wind survivability of 200 km/h, with wind loading specified at 863 N at 200 km/h. Operating temperature is -40°C to 55°C. The unit includes local and remote calibrated signal-strength displays and status LEDs for network, GPS, master/slave, link, modulation, and overload conditions.
DC Supplies Product Note
For deployment planning, the AF-5 is the mid-band version of the airFiber 5 platform. The high-band AF-5U is a separate model with different regional frequency ranges, so the exact model and applicable regulatory band should be verified before deployment.
Specifications
| Brand | Ubiquiti |
|---|
| Part Number / MPN | AF-5(US) |
|---|
| Product Type | 5 GHz Point-to-Point Wireless Bridge |
|---|
| Product Family | airFiber 5 Mid-Band |
|---|
| Maximum Throughput | 1.2+ Gbps |
|---|
| Maximum Range | 100+ km, dependent on regulatory region and frequency band |
|---|
| Operating Frequency | 5470–5600 MHz and 5650–5850 MHz under FCC/IC; 5470–5875 MHz under ETSI; 5470–5950 MHz in other regions |
|---|
| Channel Bandwidth | 10/20/30/40/50 MHz |
|---|
| Modulation | 1024QAM, 256QAM, 64QAM, 16QAM, QPSK MIMO, 1/2 Rate QPSK xRT, 1/4 Rate QPSK xRT |
|---|
| TX Gain | 23 dBi |
|---|
| RX Gain | 23 dBi |
|---|
| Beamwidth | 6° |
|---|
| Front-to-Back Ratio | 70 dB |
|---|
| Polarization | Dual-slant |
|---|
| Cross-Polarity Isolation | >28 dB |
|---|
| EIRP | Approximately 50 dBm, dependent on regulatory region and frequency band |
|---|
| Encryption | 128-bit AES |
|---|
| Networking Interfaces | 1 × Gigabit Ethernet RJ45; 1 × 10/100 Mbps Ethernet RJ45 |
|---|
| Auxiliary Port | 1 × RJ-12 alignment tone port |
|---|
| Power Method | Passive PoE, 4-pair |
|---|
| Supported Voltage | 42–58 V DC |
|---|
| Power Supply | 50 V, 1.2 A Gigabit PoE adapter included |
|---|
| Maximum Power Consumption | 40 W |
|---|
| Radio Frame Synchronization | GPS |
|---|
| Mounting | Pole mount kit included |
|---|
| Wind Survivability | 200 km/h |
|---|
| Wind Loading | 863 N at 200 km/h |
|---|
| Dimensions | 938.4 × 468.4 × 281.4 mm |
|---|
| Weight | 16 kg with mount |
|---|
| Operating Temperature | -40°C to 55°C |
|---|
| Certifications | CE, FCC, IC |
|---|
| NDAA Compliant | Yes |
|---|
FAQs
What is the Ubiquiti AF-5(US) used for?
It is a 5 GHz mid-band point-to-point wireless bridge intended for long-distance network backhaul and building-to-building connectivity.
What throughput does the AF-5 provide?
Ubiquiti specifies maximum throughput of 1.2+ Gbps.
What is the maximum range of the AF-5?
The specified maximum range is 100+ km, with actual range dependent on the regulatory region and frequency band.
What Ethernet ports are available?
The AF-5 has one Gigabit Ethernet RJ45 port and one 10/100 Mbps Ethernet RJ45 management port, plus an RJ-12 alignment-tone port.
Does the AF-5 include a PoE adapter?
Yes. The package includes a 50 V, 1.2 A Gigabit PoE adapter.
