Detailed Specifications
Overview

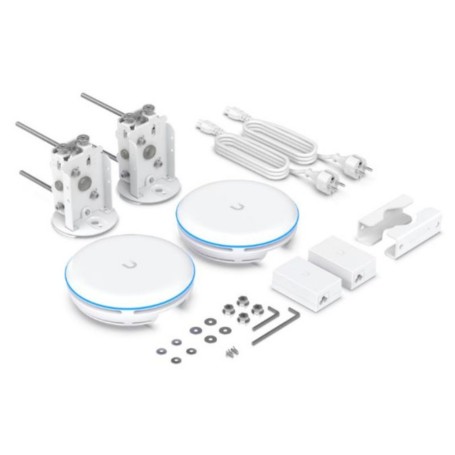

The Ubiquiti UBB-XG Building Bridge XG is a 60 GHz point-to-point wireless bridge designed for high-speed building-to-building connectivity. It provides a 6 Gbps maximum 60 GHz data rate, a 10G SFP+ uplink, and a 5 GHz backup radio for link continuity.
Wireless Performance
The main radio operates from 57–66 GHz with 2160/4320 MHz channel bandwidth and supports a maximum data rate of 6 Gbps. A 5 GHz backup radio provides additional connectivity using 20/40/80 MHz channel bandwidth.
Networking and Power
UBB-XG provides one Gigabit Ethernet RJ45 port and one 1/10G SFP+ port. The device uses PoE++ Passive PoE and has a maximum power consumption of 29W. A PoE adapter is included.
Key Features
- 60 GHz point-to-point wireless bridge
- Up to 6 Gbps 60 GHz data rate
- 1/10G SFP+ uplink for high-speed wired connectivity
- 5 GHz backup radio for link redundancy
- IPX6 weatherproofing for outdoor deployment
Deployment
The UBB-XG operates in point-to-point mode and can be mounted on a wall or pole. Its specified wireless coverage is up to 500 m (1,640 ft). The unit supports pole diameters from 1–2.5 inches (25–63.5 mm).
DC Supplies Product Note

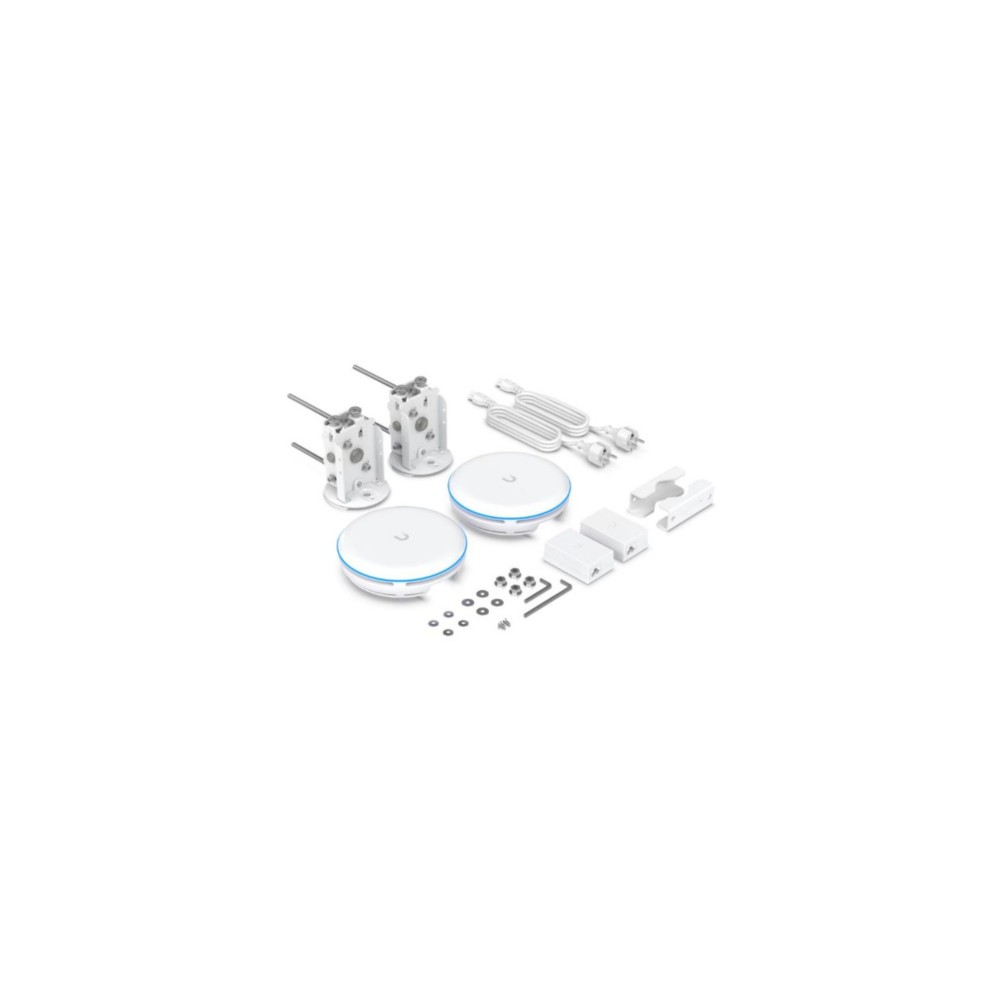

The UBB-XG is available as a single unit and as a paired two-unit configuration. Ubiquiti notes that the 2-pack is paired out of the box, while a single unit is intended for replacement or spare use. The single-unit configuration includes one PoE power adapter.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UBB-XG |
| Product Type | Wireless Point-to-Point Bridge |
| Product Name | Building Bridge XG |
| Operating Mode | PtP |
| Main Radio Frequency | 57–66 GHz |
| Main Radio Maximum Data Rate | 6 Gbps |
| Main Radio Channel Bandwidth | 2160/4320 MHz |
| 5 GHz Backup Radio | Yes |
| 5 GHz Channel Bandwidth | VHT 20/40/80 MHz |
| 5 GHz Maximum Data Rate | 866.6 Mbps (BW80) |
| 60 GHz Antenna Gain | 21 dBi |
| 5 GHz Antenna Gain | 14 dBi |
| Networking Interfaces | 1 x GbE RJ45, 1 x 1/10G SFP+ |
| Power Method | PoE++ Passive PoE |
| Maximum Power Consumption | 29W |
| Included PoE Adapter | Yes |
| Coverage Area | 500 m (1,640 ft) |
| Weatherproofing | IPX6 |
| Mounting Locations | Wall, pole |
| Pole Mount Diameter | 1–2.5 in (25–63.5 mm) |
| Wind Loading | 56 N at 200 km/h (12.6 lbf at 125 mph) |
| Dimensions | Ø191.8 x 59 mm (Ø7.6 x 2.3 in) |
| Weight | 1.7 kg (3.8 lb) device; 2.9 kg (6.3 lb) with mount |
| Operating Temperature | -40 to 55 °C (-40 to 131 °F) |
| Operating Humidity | 5–95% noncondensing |
| NDAA Compliant | Yes |
FAQs
What is the UBB-XG designed for?
The UBB-XG is designed for point-to-point wireless connectivity between buildings using a 60 GHz main radio.
What is the maximum 60 GHz data rate?
The specified maximum 60 GHz data rate is 6 Gbps.
Does the UBB-XG have a backup radio?
Yes. It includes a 5 GHz backup radio with 20/40/80 MHz channel bandwidth.
What wired uplink ports are available?
The UBB-XG provides one 1 GbE RJ45 port and one 1/10G SFP+ port.
Can it be installed outdoors?
Yes. The UBB-XG has IPX6 weatherproofing and supports wall or pole mounting.
