Detailed Specifications

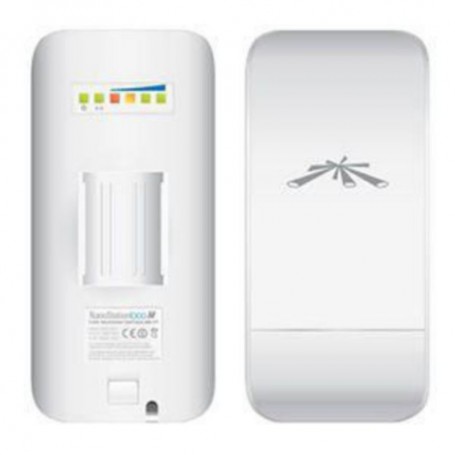

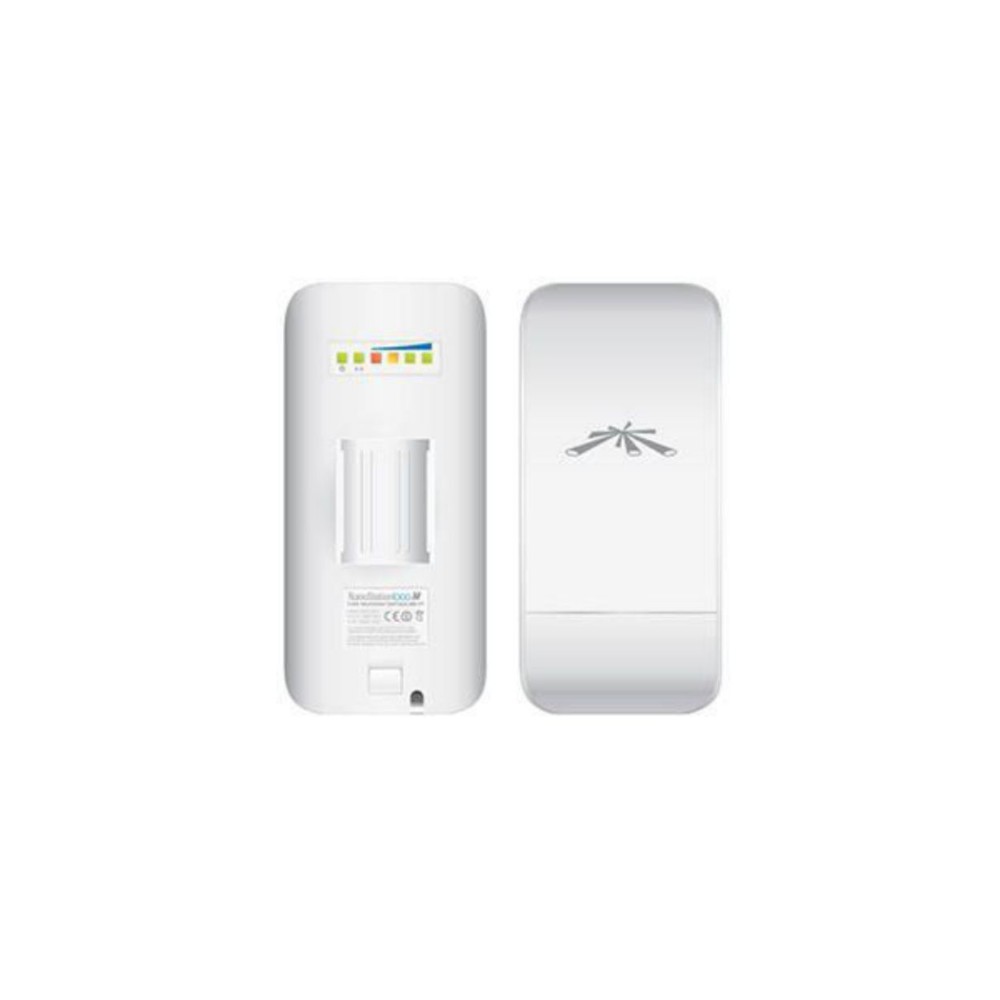

Ubiquiti LOCOM5(US) NanoStation 5 GHz Outdoor CPE
Overview
The Ubiquiti LOCOM5(US) is a compact outdoor customer-premises equipment (CPE) radio used by network engineers to build point-to-point or point-to-multipoint wireless links. It operates in the 5 GHz band using airMAX TDMA technology to extend Ethernet connectivity where cabling is impractical. The integrated directional antenna and passive PoE power simplify pole-mounted deployments. It fits rural broadband links, site-to-site connectivity, and perimeter network extensions.
Key Features
Integrated 13 dBi directional panel antenna
Passive 24 V PoE power and data delivery
airMAX TDMA protocol for PtP/PtMP links
Compact pole-mount outdoor enclosure
Technical Specifications
| Specification | Value |
|---|
| Brand | Ubiquiti |
| Part Number | LOCOM5(US) |
| Product Type | Outdoor Wireless CPE Bridge |
| Wireless Frequency Band | 5 GHz |
| Operating Frequency (US) | 5725-5850 MHz |
| Antenna Gain | 13 dBi |
| Beamwidth | 45° (H/V/Elevation) |
| Ethernet Interface | 1 × 10/100 Mbps RJ45 |
| Power Method | Passive PoE (pairs 4,5+; 7,8 return) |
| Power Supply | 24 V 0.5 A PoE adapter |
| Max Power Consumption | 5.5 W |
| Processor | Atheros MIPS 24Kc, 400 MHz |
| Memory | 64 MB DDR2, 8 MB Flash |
| Operating Temperature | −30 °C to +75 °C |
| Dimensions | 161 × 31 × 80 mm |
| Weight | 180 g |
