Detailed Specifications

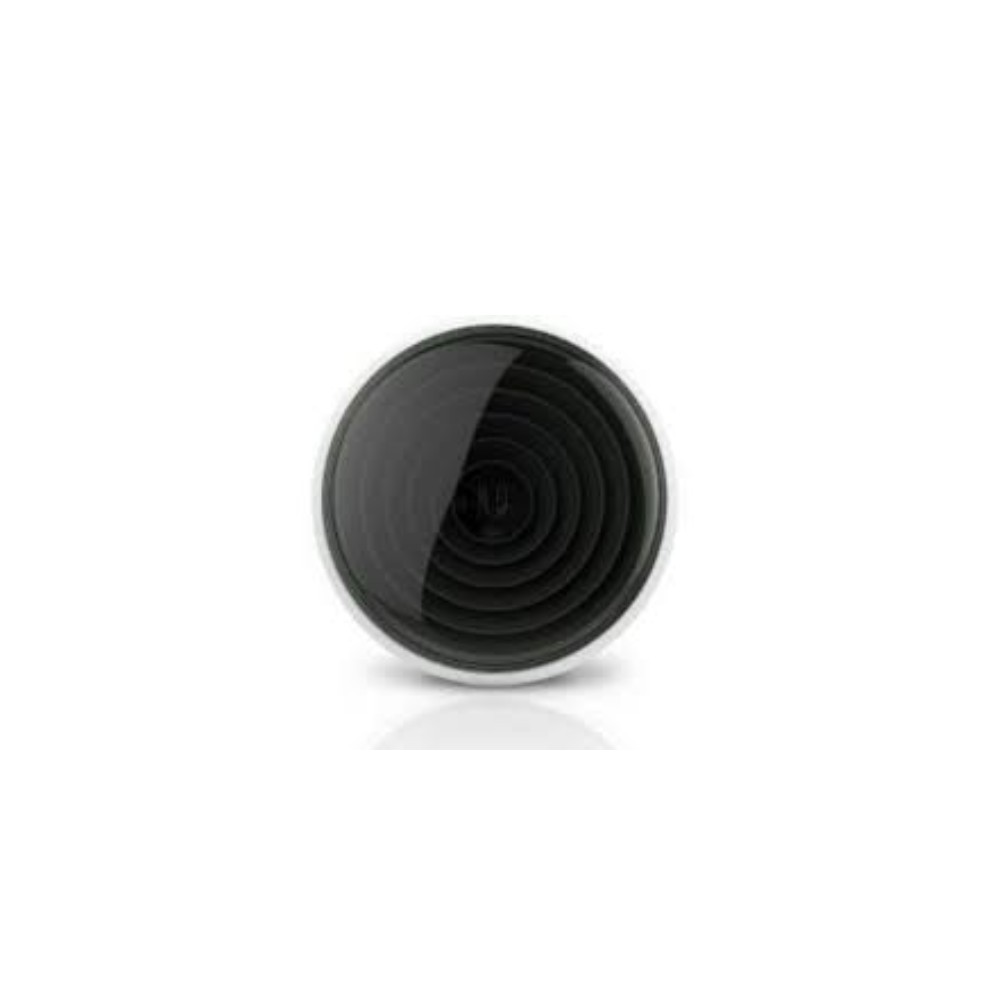

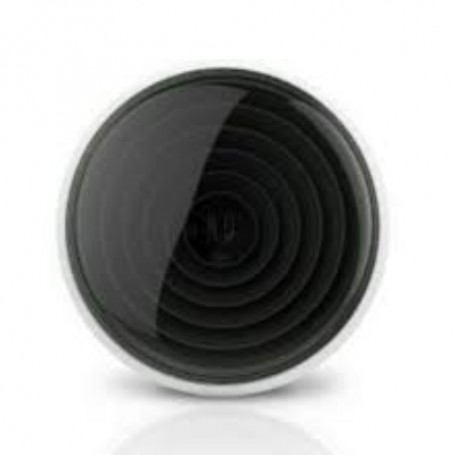

Ubiquiti IS-5AC-US Outdoor 5 GHz airMAX ac Bridge
Overview
The Ubiquiti IS-5AC-US is a fixed-beam outdoor wireless bridge radio for point-to-point or point-to-multipoint links in unlicensed 5 GHz bands used by network engineers to extend Ethernet over distance. It runs Ubiquiti's airMAX ac protocol with support for real-time RF metrics and horn antenna customization. The unit includes a Gigabit Ethernet port with passive PoE and is designed for pole-mounted outdoor deployment. It fits in edge, campus, and small-site connectivity scenarios requiring line-of-sight bridging.
Key Features
Integrated 14 dBi shielded 5 GHz radio
Interchangeable horn antennas (45° default)
Passive 24 V PoE with Gigabit Ethernet
Pole-mountable outdoor enclosure
Technical Specifications
| Specification | Value |
|---|
| Brand | Ubiquiti |
| Part Number | IS-5AC-US |
| Product Type | Outdoor 5 GHz Wireless Bridge |
| Wireless Standard | IEEE 802.11ac (airMAX ac) |
| Operating Frequency (USA) | 5150-5250, 5725-5850 MHz |
| Antenna Gain | 14 dBi |
| Default Beamwidth | 45° horn |
| Ethernet Interface | 1 × 10/100/1000 Mbps RJ45 |
| Power Method | Passive PoE (Pairs 4,5+;7,8 return) |
| Power Supply | 24 V, 0.5 A PoE adapter |
| Max. Power Consumption | 8.5 W |
| Operating Temperature | −40 °C to +70 °C |
| Wind Survivability | 200 km/h (125 mph) |
| ESD/EMP Protection | ±24 kV contact/air |
| Dimensions (With Horn) | 174 × 174 × 150 mm |
