Detailed Specifications

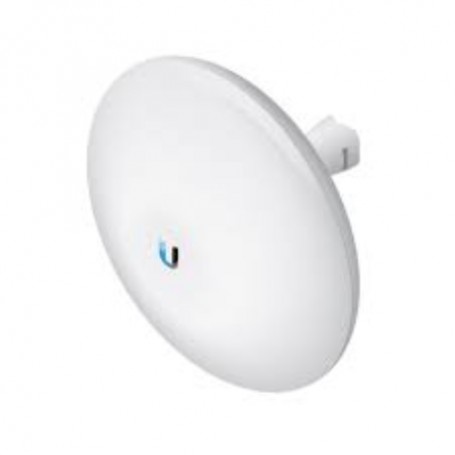

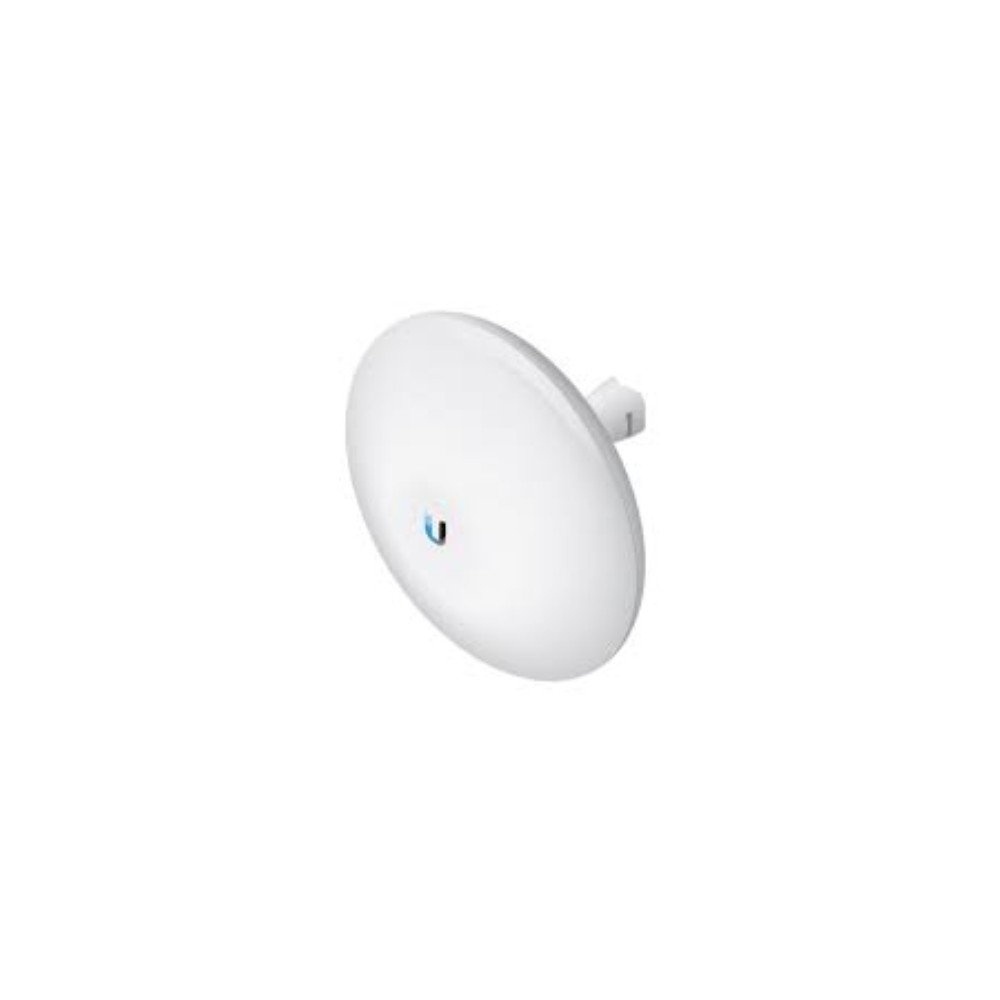

Ubiquiti NBE-5AC-GEN2-US 5 GHz airMAX AC Bridge
Overview
The Ubiquiti NBE-5AC-GEN2-US is an outdoor 5 GHz airMAX ac wireless bridge designed for point-to-point or point-to-multipoint links in outdoor environments. It combines an optimized high-gain antenna and radio with enhanced surge protection and passive PoE support to deliver focused RF connectivity over long distances. The unit includes dual Gigabit Ethernet ports and weather-rated construction for robust installation on poles or walls. It fits backhaul and CPE deployments in campus, rural, and enterprise outdoor networks.
Key Features
19 dBi high-gain 5 GHz directional antenna
Dual Gigabit Ethernet for data + PoE passthrough
Passive 24 V PoE with included injector
Outdoor-rated UV-stabilized housing
Technical Specifications
| Specification | Value |
|---|
| Brand | Ubiquiti |
| Part Number | NBE-5AC-GEN2-US |
| Product Type | 5 GHz Outdoor bridge |
| Frequency Band (USA) | 5150-5850 MHz |
| Wi-Fi Standard | airMAX ac |
| Antenna Gain | 19 dBi |
| Networking Interface | 2× 10/100/1000 MbE RJ45 |
| Power Method | Passive PoE (24 V) |
| Power Supply | 24 V, 0.5 A PoE adapter (included) |
| Maximum Power Consumption | ~8.5 W |
| Channel Sizes | PtP: 10-80 MHz; PtMP: 10-40 MHz |
| Polarization | Dual linear |
| ESD/EMP Protection | ±24 kV (air/contact) |
| Operating Temp | −40 to 80 °C |
| Mounting | Pole mount kit included |
| Enclosure | UV-stabilized outdoor plastic |
