Detailed Specifications

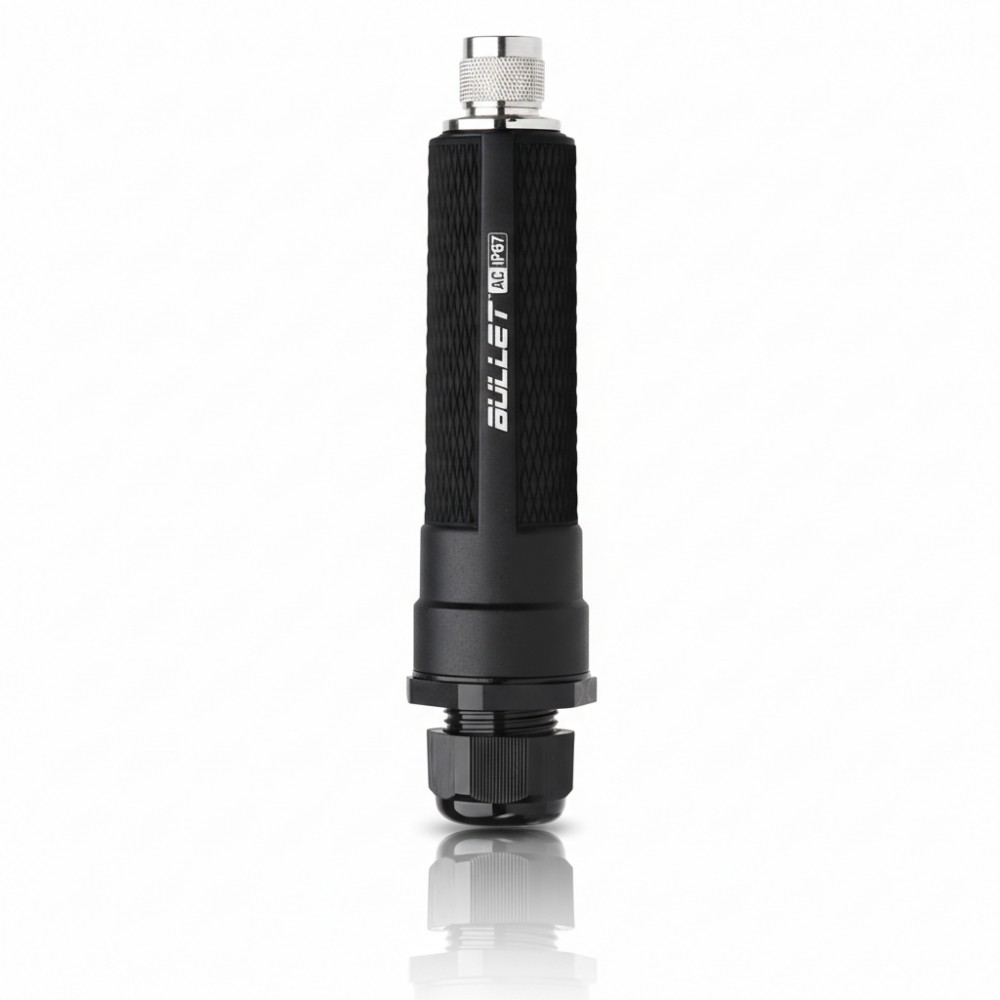

Ubiquiti BULLETAC-IP67-US Dual-Band Outdoor Bridge
Overview
The Ubiquiti BULLETAC-IP67-US is a compact, outdoor airMAX AC dual-band wireless radio used to build point-to-point or point-to-multi-point links where rugged weatherproof performance is required. It covers both 2.4 GHz and 5 GHz bands and delivers real-world throughput suited for long-range links when paired with appropriate antennas. The unit includes a single Gigabit Ethernet port with passive PoE for data and power over one cable and an N-type connector for external antenna integration. It fits deployments such as rural backhaul, campus bridging, or remote CPE connectivity in harsh outdoor environments.
Key Features
Dual-band 2.4/5 GHz airMAX AC radio
Gigabit Ethernet with 24 V passive PoE
N-type external antenna connector
IP67 weatherproof aluminum housing
Technical Specifications
| Specification | Value |
|---|
| Brand | Ubiquiti |
| Part Number | BULLETAC-IP67-US |
| Product Type | Dual-Band Outdoor airMAX Radio |
| Frequency Bands | 2.4 GHz & 5 GHz |
| Throughput (typical) | 2.4 GHz: 160+ Mb/s • 5 GHz: 300+ Mb/s |
| Networking Interface | 1× 10/100/1000 MbE RJ45 |
| Power Method | 24 V Passive PoE (pairs 4,5+; 7,8 return) |
| Max Power Consumption | ~7 W |
| Max TX Power | 21-22 dBm |
| Antenna Connector | 1× N-type |
| Weather Rating | IP67 |
| Operating Temp | -40 °C to 70 °C |
| Operating Humidity | 5 % to 95 % non-condensing |
| ESD/EMP Protection | ±24 kV contact/air |
| Dimensions (L×Ø) | ~190×46 mm |
| Weight | ~190-213 g |
